Water Ring Pelletizer

Classification : Pelletizers

SINO-ALLOY MACHINERY INC.

Country: Taiwan

Phone: 886-3-4838475

Fax: 886-3-4839052

Contact Person: Donald A. Stephens

Inquiry Now

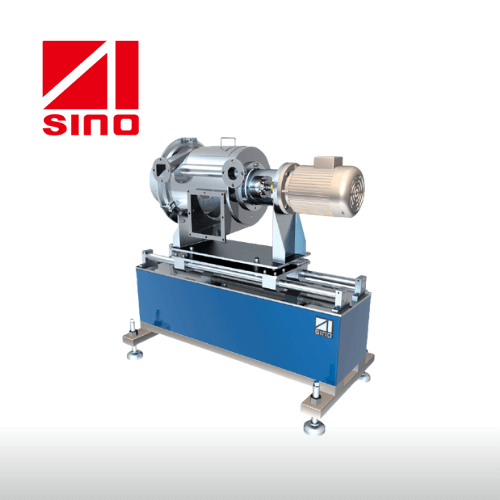

It is also an important accessory for the twin screw extruder. It can handle most plastic and rubber materials, especially the low hardness type. The PSF series water ring pelletizer has a vertical cutting blade which is in contact with the flat surface of the die plate.
Additionally, the water-cooled blade is kept at a low temperature to prevent sticking of the pellets.
The cutting blade also has a variable speed controller to control the size of pellets and ensure surface quality.
The PSF water ring pelletizer can also be used in conjunction with the PSL centrifugal dryer to complete the pelletizing process.

Model	PSF08	PSF20	PSF35	PSF60
Throughput (kg/hr)	12~80	40~250	110~700	1200
Motor Power (kW)	2.25	2.25	3.75	7.5
Knife Max Speed (rpm)	3450	2500	2500	2500
Q’ty of Knives	2 or 4	2 or 4	2 or 4	2 or 4
Heater Power (kW)	1.43	4.35	6	8.4
Die (hole x dia.)	6 x Ø3.5	20 x Ø3.0	48 x Ø3.0	132 x Ø3.5
