Material Distribution Station
Material Distribution Station

Categories : Dosing and Measuring Equipment

The function of material distribution station is to distribute materials to corresponding storage hoppers. There are five models of SMDS series, each equipped with quick couplers, so the loading and unloading of material are convenient. The stainless steel is adopted for bulid of the station to eliminate material contamination.

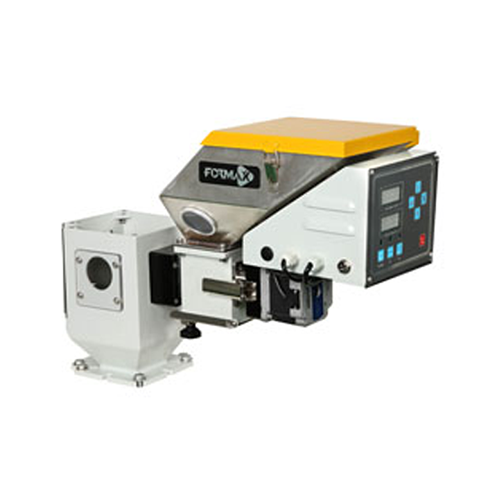

Volumetric Dosers - SCM
Volumetric Dosers - SCM

Categories : Dosing and Measuring Equipment

SCM series volumetric doser is suitable for even feeding of masterbatch, additive, and virgin material to the plastic process machine. The unit has a selection of four dosing screw sizes for different throughput needs. The unit can supports up to four sets of dosing screws for various material receipt. In SCM-D with three components application, two material dosed via a screw unit and free flow of main material through neckpiece. In SCM-4 with five components application, four materials can be dosed via a screw unit and free flow of main material through neckpiece. SCM in high drying temperature application, such as PET preform production. Water cooling kit should be added to prevent masterbatch from sticking in the screw. Add "H' at the end of the model code. SCM syncronize dosing speed in extruder mode via analog 0~10V input from the extruder. Combination of Shini VL venturi loader realizes auto conveying of material to SCM at all time.
