PRM-TAIWAN

Material Processing Machines

Products
Automatic Melt Filter - ​​​​​​​FIMIC
Automatic Melt Filter - ​​​​​​​FIMIC

Categories : Plastic Waste Recycling Machines

Any contamination the filter collects is scraped from its surface by two blades, and then gathered by the blade-holder. Finally, anything harvested is automatically ejected through the front valve. Another important feature is the possibility to determine a pressure set-point (in pressure mode) with nothing more than a few taps on the touch screen, so that once such level is reached the blade holder (running at adjustable speed) will proceed to gather the contamination, opening the front valve only on a full cycle. In the event of a particularly contaminated input material, the filter cant be set to work in continuous mode: the blade holder will keep on scraping, while relying on temporized valve openings to discharge as needed. FIMIC- Screen changers Filters Filter Recycle filter Recycle filters Recycling Filter

Options: Double Plates
Options: Double Plates

Categories : Screen Changers / Filters

Non-stop screen-changer system to keep the production operate while replacing the filter plate. With 2 honeycombed plate to increase the leached area and efficiency.

Rubber Cutter
Rubber Cutter

Categories : Material Processing Machines

RCB-1500 Rubber Pellet Making Line: This KD pellet line is designed to provide automatically rubber pellet making line. It includes : Auto Weighting-->Mixing-->Extruding-->Pelletizing -->Cooling-->Screening& Storage. Features: This KD pellet line is designed to provide automatically rubber pellet making line. It includes : Auto Weighting-->Mixing-->Extruding-->Pelletizing -->Cooling-->Screening& Storage. Options: This KD pellet line is designed to provide automatically rubber pellet making line. It includes : Auto Weighting-->Mixing-->Extruding-->Pelletizing -->Cooling-->Screening& Storage.

Filtering System: Back Flush
Filtering System: Back Flush

Categories : Screen Changers / Filters

Non-stop screen-changer system to keep the production operate while replacing the filter plate. With 4 removable-honeycombed plate to increase the leached area and efficiency. Decrease the consumption cost and the frequency of filter-change to save the labor cost. The special passageway design can drain material off individually, and purge contaminants by the filter. Due to the filtration through specified passageway, this backflush screen change system is purging and expelling the dirty material simultaneously.

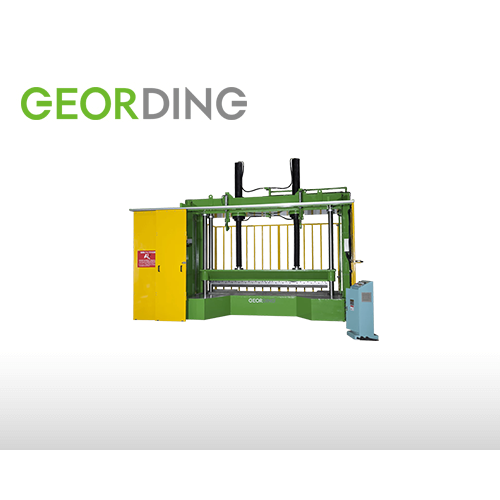

Hydraulic Plastic Cutter Machine
Hydraulic Plastic Cutter Machine

Categories : Plastic Crushers

When FIMIC was born, our main line of production was the manufacturing of guillotines for the cutting of bales and rolls of industrial waste, and they still retain their place as our flagship products thanks to our state-of-the-art production method, which sets them apart for the rest of the market. FIMIC guillotines can fit to each and any cutting scenario, covering every area of the recycling process of materials such as plastics, rubber and paper. FIMIC also offers the possibility of fully customizing its guillotines to fit every need concerning layout, safety and output.

Automatic Melt Filter for High Contamination- FIMIC
Automatic Melt Filter for High Contamination- FIMIC

Categories : Material Processing Machines

ERA is made of two internal filtration chambers and two independent discharge valves, thus enabling to setup a pre-filtration on the first step and a finer one in the second, all in the same machine! This means, in short, the possibility of using cheap punched screens (400-2000 micron) to protect the expensive laser screens (100-300 micron) coming afterwards. The resulting cost reduction is undeniable, both on the financial and energetic side. FIMIC screen changers Filters Filter Recycle filter Recycle filters Recycling Filter

Dual-Piston Filter
Dual-Piston Filter

Categories : Screen Changers / Filters

Bigger Filtration Area, Less Frequent Mesh Change Compared to the slide type product, the dual-piston filters have a larger filtration area which reduces the frequency of changing the mesh and the labor cost. Non-Stop Dual-Piston Filter The dual-piston filter is made in a continuous style with two filter flows. There is at least one filter working when the screen is changing. The piston moves slowly when the mesh is changed. This allows the melted polymer to be filled in the filter area gradually to ensure low fluctuation of the extrusion pressure. GENIUS

Filtering System: Double Pistons
Filtering System: Double Pistons

Categories : Screen Changers / Filters

Non-stop screen-changer system to keep the production operate while replacing the filter plate. With 4 removable-honeycombed plate to increase the leached area and efficiency.

Continous Belt Screen Changer - FIMIC
Continous Belt Screen Changer - FIMIC

Categories : Plastic Pelletizer Machines

TEN is FIMIC’s automatic screen changer capable of blocking even the smallest contamination particles thanks to its mesh, whose resistance allows to adapt the temperature according to the requirements and the material to be processed. The adjustable opening on the mesh output is a further guarantee of the quality of the end product. A small scraper close to the mesh harvests most waste and prevents it from breaking when it is changed. Its 1.465 cm2 filtering surface has a low load pressure; it therefore excludes any danger of degradation. It is also possible to adjust the mesh changing speed, setting a target pressure at which it will be automatically switched, to fit all the workflow to the material to be filtered. Furthermore, when changed the mesh is held by the material pressure itself and doesn’t needany other auxiliary systems. The mesh proper is available in varying filtration levels, starting from 80 micron / 170 mesh. TEN can also be adapted to finer filtration levels equipping custom made meshes. Quick opening is also always guaranteed. There’s no need for dedicated tools or skills, for FIMIC provides a pneumatic screwdriver at the time of purchase. FIMIC - Screen changers Filters Filter Recycle filter Recycle filters Recycling Filter

Self-Cleaning Filter
Self-Cleaning Filter

Categories : Screen Changers / Filters

Quality Boosting & Cost Saving The two scrapers in the filter remove the residues filtered from the surface of the special precision processed screen. Then, they are emitted from the bottom screw. With the pressure sensor and inverter, this filter can control the scraping speed as well as stabilize and maintain the pressure inside the flow automatically. This filtration process can reduce residues by over 80% of the melted polymer. GENIUS

High Output Automatic Melt Filter - FIMIC
High Output Automatic Melt Filter - FIMIC

Categories : Plastic Pelletizer Machines

Differently from RAS, this model reaches a greater filtering surface due to the presence of two filtering meshes towards which all the melt is directed, alongside two scrapers and independent discharge valves. The two blades scrape the contamination the filter collects, while the blade holder rakes it in to automatically eject it through the valve. The pressure mode can be set from the touch screen, while the blade holder rotating speed is adjustable and the valve only opens on a full cycle. In the event of a higher degree of contamination, a continuous mode is available to let the blade holder scrape continuously. In this case, a temporizer will tell the valve when to discharge. FIMIC- Screen changers Filters Filter Recycle filter Recycle filters Recycling Filter
