PRM-TAIWAN
Products
Multi Station Hopper Loaders SAL-UG122/124
Multi Station Hopper Loaders SAL-UG122/124

Categories : Loaders and Conveyors

"One-to-Two or One-to-Four" hopper loader can greatly lower the cost. The dust collective chamber features a cyclone separator and a dust collective bin to effectively reduce the load of the filter. Separate hopper receivers are designed in European style. Separate dust collector is convenient for dust cleaning. Main unit equips with faults and motor overload indicators to show faults fast. All main units has vacuum breaking valve to protect the blower. Standardly equipped with warning lamp as the alarm device. CE safety plug ensures safe and reliable operation. SCH-6U/12U/24U storage hoppers with Standard and Insulated type are available as options, which can be installed on reed switch storage hopper and also on IMM directly. In the case of much impurity or recycled materials included in raw materials, main unit can be equipped with air accumulator auto washing unit as options, and add "A" at the model behind. (Suitable for SAL-3.5HP-UG and models above, except for SAL-UGP series.). Optionally provide multi-functional installation frame HMB-900 with 900 mm largest dia. adjusting range for selection. Buzzer available as an option.

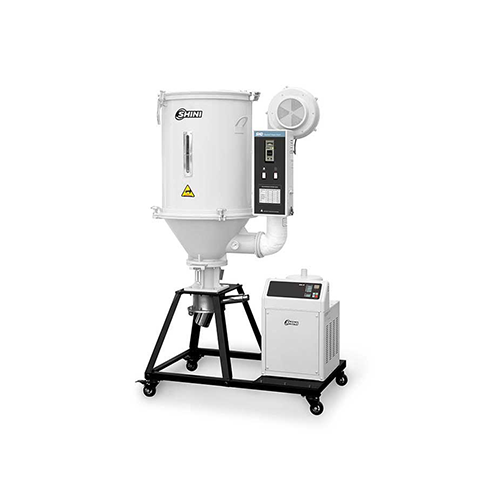

“Standard” Drying Loaders - SDL-G
“Standard” Drying Loaders - SDL-G

Categories : Loaders and Conveyors

SDL series “Standard” Drying loaders integrate plastic drying and loading into one unit. Especially applicable to those large injection moulding machine which are placed in height limited workshop. This combination offers a group of standard photosensor hoppers, which can be used to load dried materials. Besides, SAL-900G is available for choose to realize the two-stage loading function.

“Standard” Self-contained Hopper Loaders - SAL
“Standard” Self-contained Hopper Loaders - SAL

Categories : Loaders and Conveyors

SAL series of models are mainly used beside injection molding machines, extrusion machines or other machines to dry the plastic materials, which are installed on the drying hopper directly. It also can collocate with the SICH or SCH collective hoppers to work on the inlet of the injection molding machine. After setting, the machine can work automatically and independently without frequent adjustment. For its high installing position, it may give shortage alarm occasionally. Therefore, it’s available to equip the distal switch options to dismiss the alarm.

Self Contained Hopper Loaders SAL-U
Self Contained Hopper Loaders SAL-U

Categories : Loaders and Conveyors

SAL-U series self-contained hopper loaders are Euro design with stainless steel hopper to avoid material contamination. In addition, it has an attractive appearance, a sound-proof motor cover to reduce noise level and a top handle to enable convenient movement. Also the remote operation has been realized by using a detachable control panel.

Central Safety Filters
Central Safety Filters

Categories : Loaders and Conveyors

SCSF series central safety filter in central loading system adopts large dust collector to filter dust and small impurities in material so can effectively protect blower and prolong its service life. Self-cleaning function realize the effective cleaning of the filter by set-up auto timer, which can reduce manual clean times. Equipped with vacuum breaking valve to not only protect the blower, but also accelerate conveying and loading speed.

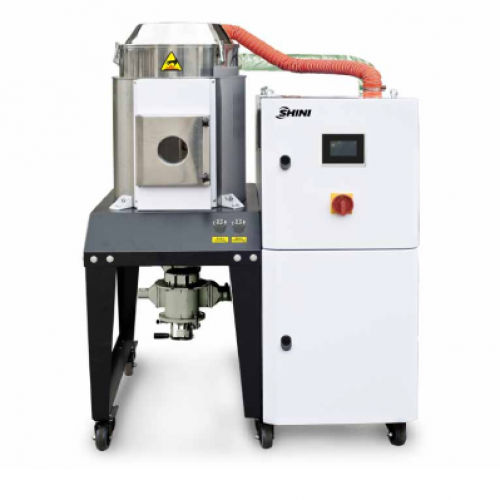

Drying Loaders - SDL-U
Drying Loaders - SDL-U

Categories : Loaders and Conveyors

SDL-U drying loader integrates two-stage conveying and drying into single unit, which can efficiently dry most of standard hygroscopic plastics, such as PS, PP, and other plastics. The two-stage conveying can realize fully automatic conveying materials from storage tank to drying hopper, and from drying hopper to the IMM, which reduces men power and avoids contamination. SDL-U-HD drying loader is composed of the SDL-U and optional HAD twin tower compress air dryer to achieve better drying resulf than ordinary dryers. The weekly timer can reserve working hours in advance that is especially suitable for pre-drying occasions, which is applicable to pre-dry materials before IMM start as to increase productivity.
