Automatic Melt Filter - ​​​​​​​FIMIC
Automatic Melt Filter - ​​​​​​​FIMIC

Categories : Plastic Waste Recycling Machines

Any contamination the filter collects is scraped from its surface by two blades, and then gathered by the blade-holder. Finally, anything harvested is automatically ejected through the front valve. Another important feature is the possibility to determine a pressure set-point (in pressure mode) with nothing more than a few taps on the touch screen, so that once such level is reached the blade holder (running at adjustable speed) will proceed to gather the contamination, opening the front valve only on a full cycle. In the event of a particularly contaminated input material, the filter cant be set to work in continuous mode: the blade holder will keep on scraping, while relying on temporized valve openings to discharge as needed. FIMIC- Screen changers Filters Filter Recycle filter Recycle filters Recycling Filter

Granulating System: Flow Channel of Plastic Strand Pelletizing System
Granulating System: Flow Channel of Plastic Strand Pelletizing System

Categories : Plastic Pelletizer Machines

The plastic strand pelletizing system consists of a die, water-cooling channel, pelletizer, centrifugal hydroextractor and a circulating water-cooling system. Mainly used for plastic materials such as PET、PA、PC etc

Force Side Feeding Plastic Recycling Machine (RECO Series)
Force Side Feeding Plastic Recycling Machine (RECO Series)

Categories : Plastic Pelletizer Machines

Increasingly Feeding The force side feeding device creates a very stable feeding flow. With stable feeding, the main screw is always fully loaded with materials, which ensures the highest output performance. Increase the output capacity by up to 50%. More Labor-saving The feeding control system monitors the ampere and controls the feeding speed automatically. Only 1~2 operators are required for an entire plant. Better Flexibility Genius recycling specialist team provides customized recycling systems, flexible options from sorting, feeding, degassing, filtration, to storage and packing systems. According to the clients’ needs presenting a smart and reliable plant. OUTSTANDING PERFORMANCE Increase the output capacity up to 50%. Labor cost is reduces as only 1~2 operators are needed to operate the whole plant. GENIUS

Two Stage Force Side Feeding Plastic Recycling Machine (RECOi Series)
Two Stage Force Side Feeding Plastic Recycling Machine (RECOi Series)

Categories : Plastic Waste Recycling Machines

Increasingly Feeding The force side feeding device creates a very stable feeding flow. With stable feeding, the main screw is always fully loaded with materials, which ensures the highest output performance. Increase the output capacity by up to 50%. Unrivaled Degassing Up to triple optional degassing zones equipped with vacuum pump. Maximize the degassing efficiency. Exhaust-Free Construct The unique development of two-stage extruder. A completely enclosed flow design, which prevents the molten polymer from releasing smoke. Better Flexibility Genius recycling specialist team provides customized recycling systems, flexible options from sorting, feeding, degassing, filtration, to storage and packing systems. According to the clients’ needs presenting a smart and reliable plant. OUTSTANDING PERFORMANCE Increase the output capacity up to 50%. Labor cost is reduces as only 1~2 operators are needed to operate the whole plant. GENIUS

Continous Belt Screen Changer - FIMIC
Continous Belt Screen Changer - FIMIC

Categories : Plastic Pelletizer Machines

TEN is FIMIC’s automatic screen changer capable of blocking even the smallest contamination particles thanks to its mesh, whose resistance allows to adapt the temperature according to the requirements and the material to be processed. The adjustable opening on the mesh output is a further guarantee of the quality of the end product. A small scraper close to the mesh harvests most waste and prevents it from breaking when it is changed. Its 1.465 cm2 filtering surface has a low load pressure; it therefore excludes any danger of degradation. It is also possible to adjust the mesh changing speed, setting a target pressure at which it will be automatically switched, to fit all the workflow to the material to be filtered. Furthermore, when changed the mesh is held by the material pressure itself and doesn’t needany other auxiliary systems. The mesh proper is available in varying filtration levels, starting from 80 micron / 170 mesh. TEN can also be adapted to finer filtration levels equipping custom made meshes. Quick opening is also always guaranteed. There’s no need for dedicated tools or skills, for FIMIC provides a pneumatic screwdriver at the time of purchase. FIMIC - Screen changers Filters Filter Recycle filter Recycle filters Recycling Filter

Automatic Melt Filter for High Contamination- FIMIC
Automatic Melt Filter for High Contamination- FIMIC

Categories : Material Processing Machines

ERA is made of two internal filtration chambers and two independent discharge valves, thus enabling to setup a pre-filtration on the first step and a finer one in the second, all in the same machine! This means, in short, the possibility of using cheap punched screens (400-2000 micron) to protect the expensive laser screens (100-300 micron) coming afterwards. The resulting cost reduction is undeniable, both on the financial and energetic side. FIMIC screen changers Filters Filter Recycle filter Recycle filters Recycling Filter

Automatic Strand Pelletizing System
Automatic Strand Pelletizing System

Categories : Plastic Pelletizer Machines

Born For Extreme Automation The molten polymer been extruder from the die, fall into automatic water flow. High-pressure water flow from a special designed spray nozzle pulls the strands immediately while cooling at the same time. No more drawing strands before pelletizing. Minimize the lump waste during drawing the strands. GENIUS

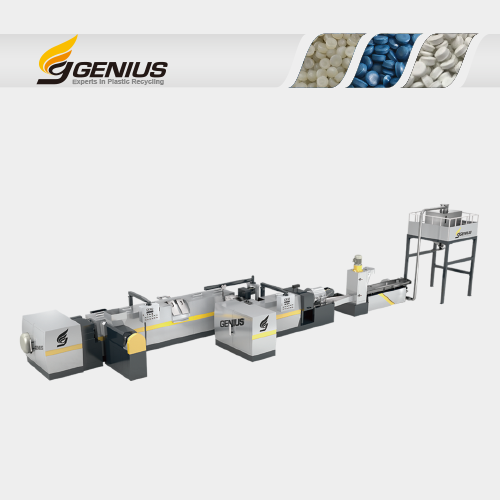

Two Stage Hopper Feeding Plastic Recycling Machine (Hi Series)
Two Stage Hopper Feeding Plastic Recycling Machine (Hi Series)

Categories : Bottle Recycling Lines

Economically Selection A valuable selection for clean materials, without pre-heating section for feeding device, this reduces the power consumption. The axle made by special steel with heat treatment. More tenacity and allows the materials to be fed sequence stably and also anti-bridging. Unrivaled Degassing Up to triple optional degassing zones equipped with vacuum pump. Maximize the degassing efficiency. Exhaust-Free Construct The unique development of two-stage extruder. A completely enclosed flow design, which prevents the molten polymer from releasing smoke. Better Flexibility Genius recycling specialist team provides customized recycling systems, flexible options from sorting, feeding, degassing, filtration, to storage and packing systems. According to the clients’ needs presenting a smart and reliable plant. Cost Saving Energy cost saves up to 10%. Labor cost is reduces as only 1~2 operators are needed to operate the whole plant. GENIUS

Automatic Melt Filter - FIMIC
Automatic Melt Filter - FIMIC

Categories : Plastic Waste Recycling Machines

The melt filter that made FIMIC technology renowned in the recycling field, enhanced with the possibility to work in backflush. RAS+REF melt filters can in fact operate in two different ways: in scraping mode or in backflush mode, providing more options to anyone wishing to process materials with mesh filters. REF therefore represents an ideal option for mesh processing with exceptional final results. FIMIC - Screen changers Filters Filter Recycle filter Recycle filters Recycling Filter

Force Hopper Feeding Plastic Recycling Machine (H Series)
Force Hopper Feeding Plastic Recycling Machine (H Series)

Categories : Plastic Pelletizer Machines

Economically Selection A valuable selection for clean materials, without pre-heating section for feeding device, this reduces the power consumption. The axle made by special steel with heat treatment. More tenacity and allows the materials to be fed sequence stably and also anti-bridging. Better Flexibility Genius recycling specialist team provides customized recycling systems, flexible options from sorting, feeding, degassing, filtration, to storage and packing systems. According to the clients’ needs presenting a smart and reliable plant. Cost Saving Energy cost save up to 10%. Labor cost is reduces as only 1~2 operators are needed to operate the whole plant. GENIUS

High Output Automatic Melt Filter - FIMIC
High Output Automatic Melt Filter - FIMIC

Categories : Plastic Pelletizer Machines

Differently from RAS, this model reaches a greater filtering surface due to the presence of two filtering meshes towards which all the melt is directed, alongside two scrapers and independent discharge valves. The two blades scrape the contamination the filter collects, while the blade holder rakes it in to automatically eject it through the valve. The pressure mode can be set from the touch screen, while the blade holder rotating speed is adjustable and the valve only opens on a full cycle. In the event of a higher degree of contamination, a continuous mode is available to let the blade holder scrape continuously. In this case, a temporizer will tell the valve when to discharge. FIMIC- Screen changers Filters Filter Recycle filter Recycle filters Recycling Filter

Granulating System: Strand Pelletizer
Granulating System: Strand Pelletizer

Categories : Plastic Pelletizer Machines

Advanced strand pelletizer for most plastic materials. Specialize in manufacturing of the plastic strand pelletizing system. PARTECO plastic granulating machine is applicable to most of plastic materials. Suitable for most plastic materials.
