Force Hopper Feeding Plastic Recycling Machine (H Series)

Classification : Plastic Recycling Machine

GENIUS MACHINERY CO., LTD.

GENIUS MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-4-2630-1621
Fax: 886-4-2630-1716
Contact Person: Peter Tsai
Economically Selection
A valuable selection for clean materials, without pre-heating section for feeding device, this reduces the power consumption. The axle made by special steel with heat treatment. More tenacity and allows the materials to be fed sequence stably and also anti-bridging.

Better Flexibility

Genius recycling specialist team provides customized recycling systems, flexible options from sorting, feeding, degassing, filtration, to storage and packing systems. According to the clients’ needs presenting a smart and reliable plant.


Cost Saving
Energy cost save up to 10%. Labor cost is reduces as only 1~2 operators are needed to operate the whole plant.

Model H-DFC-85 H-DFC-100 H-DFC-125 H-DFC-150 H-DFC-175
H-SPR-85 H-SPR-100 H-SPR- 125 H-SPR- 150 H-SPR- 175
Force feeding motor 3 HP 5 HP 7 1/2HP 7 1/2HP 7 1/2HP
Extrusion capacity 150~250 kg/hr 250~350 kg/hr 400~550 kg/hr 550~700 kg/hr 750~1000 kg/hr
Screw diameter Φ85 mm Φ100 mm Φ125 mm Φ150 mm Φ175 mm
Main motor 75 HP 125 HP 150 HP 200 HP 300 HP
Hydraulic Screen Changer Motor 3HP 3HP 5HP 7 1/2HP 10HP
Vibrating Screener Motor 1/4HP x 2 pcs 1/4HP x 2 pcs 1/4HP x 2 pcs 1/4HP x 2 pcs 1/2HP x 2 pcs
Vibrating Screener Blower Motor 3HP 7 1/2HP 7 1/2HP 10 HP 10 HP
Silo Capacity 600L 600L 800L 800L 1000L
  1. Our screw is made of wear resistance materials. Ensure the longevity of product life.
  2. Bottle fragments, rigid and dried materials are applicable to single extruder.
  3. Low-noise operation. Stable processing.
Hot Die Face pelletizing
Compared to strand pelletizing, hot die face pelletizing system saves labor cost of drawing strand.
Automatic blade adjustment assures a precise modification of the blades in connection with the die plate.

Die face cutting ensures the final plastic pellets in uniform size.


Strand pelletizing
Mainly used for high viscosity materials.
Individually extruded strands will be cooled down in a water cooling tank and then be cut by a pellet cutter.


Underwater pelletizing
Uniquely designed for high viscosity materials.
Cutting and cooling at a time.

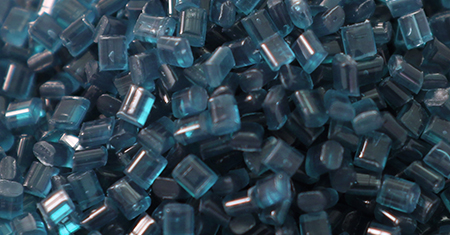

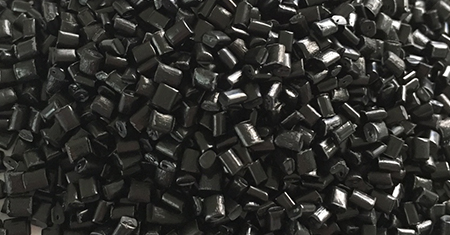

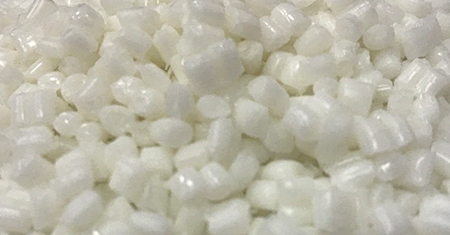

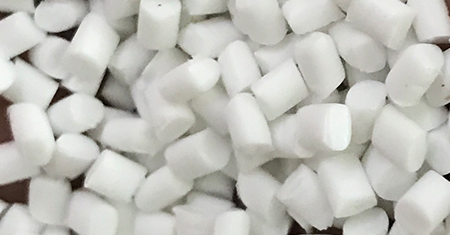

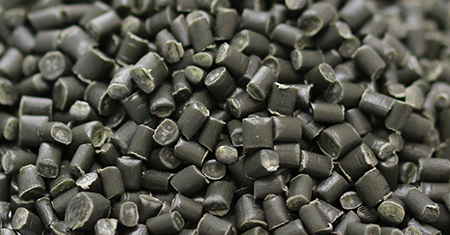

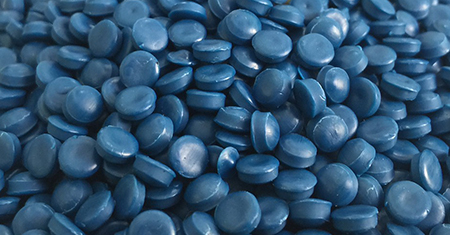

PET, PP, PS, PE, ABS, HIPS and more. Suitable for rigid materials, including crushed bottles, crushed industrial waste, and injection materials





Bottles
Chemical Drums

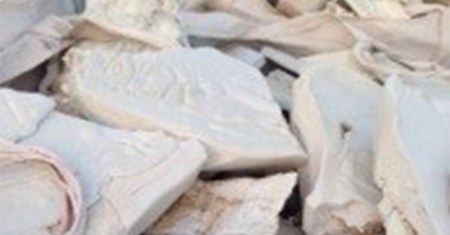

Industrial Waste

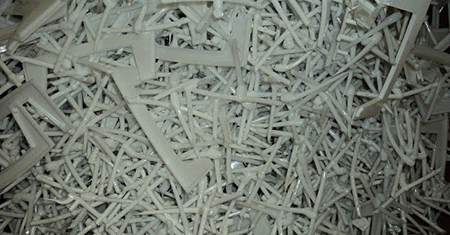

Injection Gate Runner
Plastic Vehicle Parts
WEEE Waste Electrical Equipment
