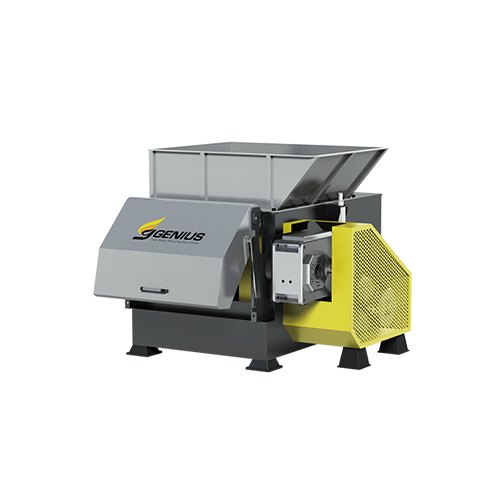

Single Shaft Shredder (Kroko Series)

Classification : Plastic Crusher & Shredder

GENIUS MACHINERY CO., LTD.

GENIUS MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-4-2630-1621
Fax: 886-4-2630-1716
Contact Person: Peter Tsai
Cost Effective Precision
Installed with STM gearbox made from Italy. Ensure the best effective precision and the higher torque density.

High radial loads with high efficiency and great stability
Equipped with professionally designed shaft and blades, it can withstand higher radial load and create higher efficiency while keep the best stability.
Model KK-220 KK-400 KK-480 KK-450
Rotor Diameter Φ 220mm Φ 400mm Φ 480mm Φ 650mm
Rotor Blade 23 pc 46~80 pc 94 ~ 120 pc 150 pc
Stationary Blade 4 pc 6~10 pc 12 ~ 14 pc 16 pc
Mesh Diameter 40 mm 40 mm 40 mm 40 mm
Chamber 550 x 600 mm 850 x 750~1600 mm 1000 x 1600 ~ 2100 mm 1200 x 2500 mm
Shaft Speed 78 RPM 78 RPM 78 RPM 78 RPM
Motor Drive 30HP
(22kW)
50~125HP
(37~90kW)
100HP x 2 ~ 125HP x 2
(75kW x 2 ~ 90kW x 2)
150HP x 2
(110kW x 2)
Hydraulic Motor 2HP (1.5kW) 3~7.5HP (2.2~5.5kW) 10HP (7.5kW) 10HP (7.5kW)

For all kinds of plastic wastes. From soften or hard plastics, baled or not baled and many more.




Big Bags
Cable Wires
Films
