PRM-TAIWAN

Strapping Band Machine

Products

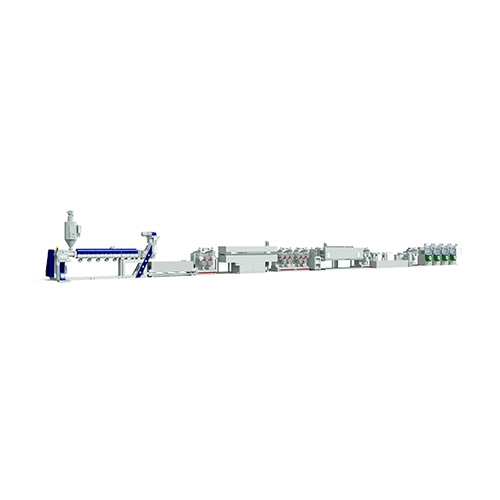

PET Strapping Band Extrusion Line (JC-SPET Series)
PET Strapping Band Extrusion Line (JC-SPET Series)

Categories : Tape Extrusion Machines

Our JC-SPET Series of strapping band extrusion lines utilize the latest extrusion technology to produce PET strapping bands from 100% treated PET bottle flakes. The resulting straps possess tensile and breaking strength comparable with steel bands, offering a safer, economical, environmentally-friendly solution for medium- to heavy-duty applications, such as securing bricks, tile, cotton bales, and lumber.

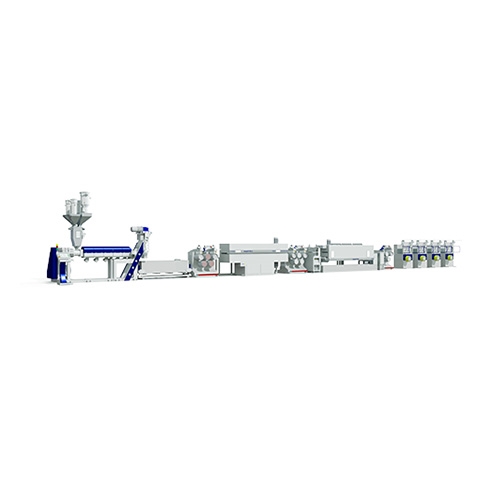

JS 237APR / JS 2310APR2 PET Heavy Duty Strapping Band Making Machine
JS 237APR / JS 2310APR2 PET Heavy Duty Strapping Band Making Machine

Categories : Tape Extrusion Machines

Extruding output range: 40 - 100 kgs/hr or 80 - 220 kgs/hr. Band width: 9.5 -19mm. High precision band width +/- 0.5mm. Entire machine employs direct drive for low noise running. Gears are hardened and precision ground for quiet running performance. SACMI screw is nitrogen treated, precision ground, and stress relieved. SACMI barrel is nitrogen treated, precision ground, and stress relieved. #304 stainless steel cooling water tank. Separate adjustment for winding torque and running speed ensures uniformity of band. Stretching unit is all-gear driven with oil bath lubrication for stability, quiet running and long service life. WINDING UNIT The winding unit is driven by a DC torque motor, featuring torque adjustment. The buzzer sounds when the preset length of band is reached. Changing the gears conveniently changes the winding width. Aluminum winding rollers. Choice of 200 or 400mm core bobbin. PRE-HEAT STRETCHING UNIT The machine uses electric heating to quickly achieve high temperature. The four stretching rollers are individually driven, and heated for efficient stretching. Stretching speed is controlled by a frequency inverter for maximum stability. EMBOSSING ROLLER The embossing rollers are manufactured from SKD11 material, vacuum heat treated for superior hardness and maximum wear resistance. Embossing depth is pneumatically adjusted with indication reader for accurate reading. Separate motor drive. MAIN CONTROL PANEL The temperature for the barrel, screw, and die are separately displayed on the main control panel. Temperature can be preset. JS 2310APR2 Hydraulic screen change. JS 2310APR2 2 layer straightening operation extends heating time, ensuring the stability of bands and superior tensile strength. Hot air circulation provides for a more efficient heating solution. Equipped with a water cooling tank for upgrading cooling and stiffening performance. Outstanding dehumidifying performance ensures constant band quality. DEHUMIDIFYING DRYER The dehumidifying dryer lowers the moisture content below 0.2% to achieve the utmost performance from production materials. The dryer prevents such problems as cracking, streaking, bubbles, flow marks, poor transparency, etc., which are all caused by incompletely dry resin.

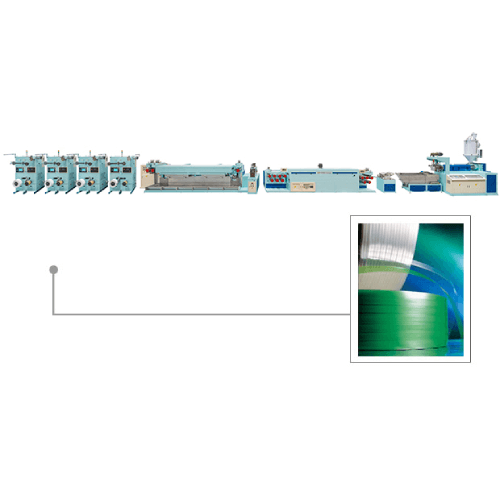

Fibrillated Tape Extrusion Line(JC-FYB Series)
Fibrillated Tape Extrusion Line(JC-FYB Series)

Categories : Tape Extrusion Machines

The JC-FYB series Fibrillated Tape extrusion line is designed to produce fibrillated tape and heavy duty fibrillated tape for wide product range, such as baler twine, insulated cable filler, carpet backing, and other technical application such as synthetic grass.

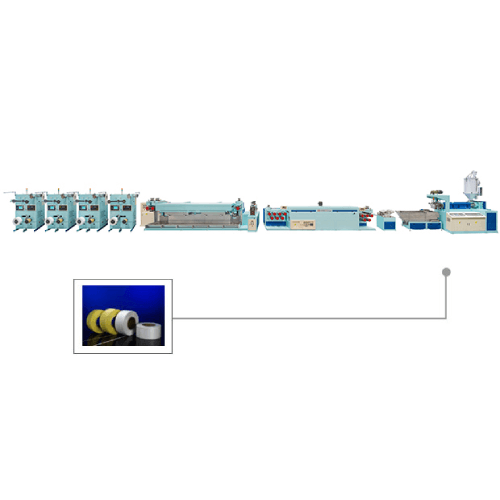

Twin Screws PET Strapping Band Extrusion Line
Twin Screws PET Strapping Band Extrusion Line

Categories : Tape Extrusion Machines

Advance Extruder Design For PET Strapping Band Industry. High Quality&Stability Finish Products. User Friendly Operation. Save Energy For Drying The PET Flake.

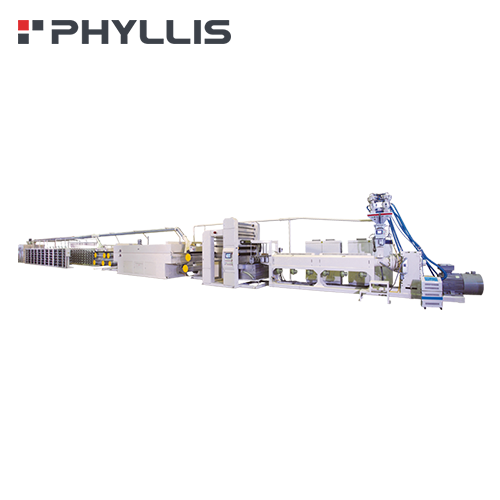

Tape Extrusion Line (JC-FY Series)
Tape Extrusion Line (JC-FY Series)

Categories : Tape Extrusion Machines

The JC-FY series flat tape yarn extrusion line is available in 85mm and 120mm screw extruder, designed to produce tape line for various applcations, an ultimate solution offering combination of efficiency, reliability, performance, and premium quality tape product.

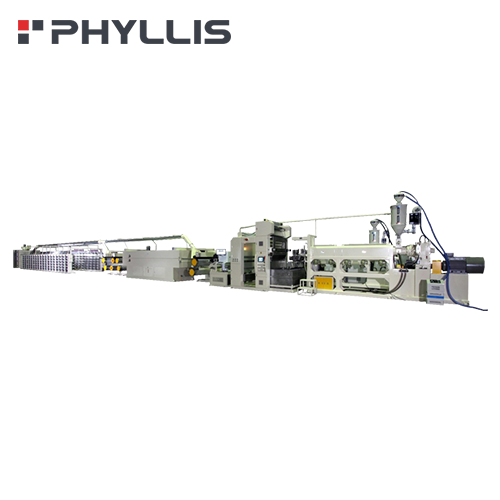

PP Strapping Band Extrusion Line (JC-SPP Series)
PP Strapping Band Extrusion Line (JC-SPP Series)

Categories : Tape Extrusion Machines

The JC-SPP series PP Strapping Band Extrusion Line designed for making PP polypropylene straps, commonly used for light to medium load packaging such as newspaper & magazine, carton boxes, pallets, and other industrial and consumer usages.

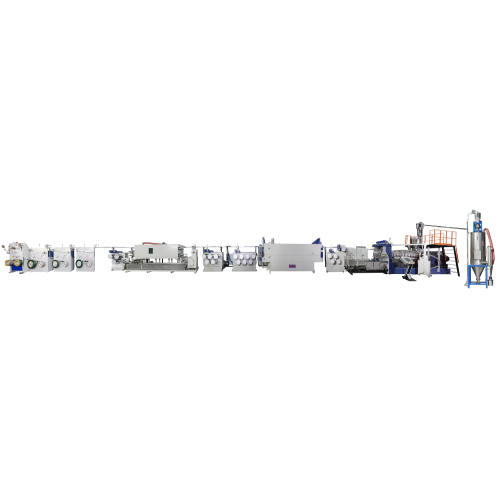

Extrusion Tape Line (Three Layer Tapes)
Extrusion Tape Line (Three Layer Tapes)

Categories : Tape Extrusion Machines

Three layer extrusion tape line with break-through technology to produce 3 layer PP tapes at premium quality and lowest manufacturing costs. The tapes are mainly used for PP woven sack, and various applications. PP/HDPE Flat Yarn Extrusion Line (For PP/HDPE Woven Fabrics)

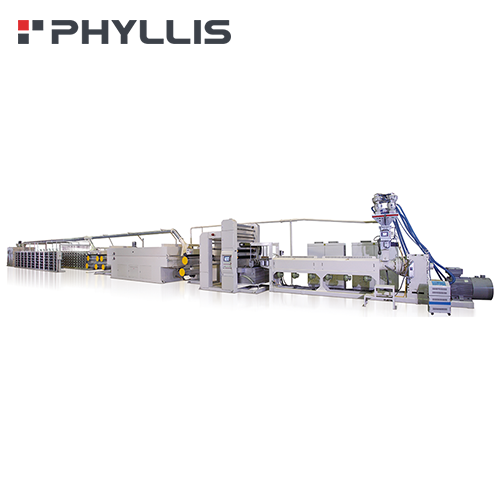

Extrusion Tape Line (FIBC Tapes)
Extrusion Tape Line (FIBC Tapes)

Categories : Tape Extrusion Machines

One layer extrusion tape line specially designed to produce PP tapes for high performance application at premium quality mainly used for FIBC fabrics, and various technical applications.

Extrusion Tape Line (Standard Tapes)
Extrusion Tape Line (Standard Tapes)

Categories : Tape Extrusion Machines

One layer extrusion tape line for producing PP, or HDPE flat tapes. With melting capacity from 120kg/hour to 620kg/hour, producing films width from 460mm to 1400mm. Tape Winding speed from 250m/min to 380 m/min, which produces premium quality tapes for use in woven sack, Kraft Paper cement sack, PE Tarpaulins, and various applications.
