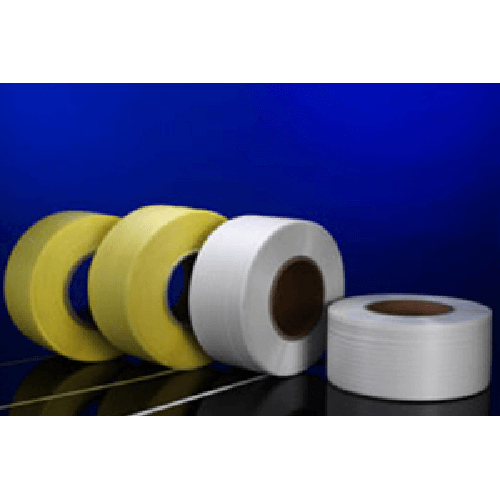

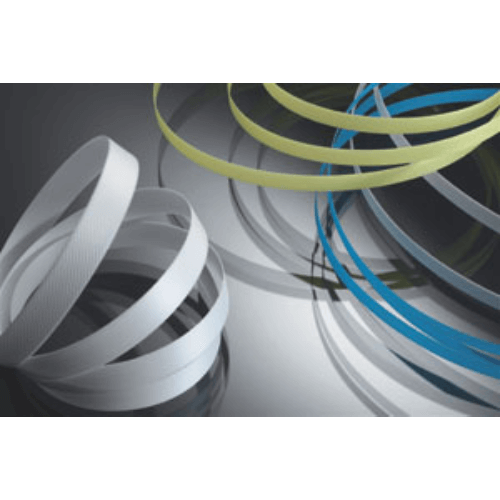

JS 239HA4 PP Strapping Band Making Machine

MODEL			JS 239HA4
Feature	Material		PP
	Qty. of Line		2 or 4  5 mm, 9 mm, 12 mm x 4 straps. 15, 19 mm x 2 straps.
	Layflat Width		9 / 12 / 15.5 / 19
	Extruding Output Range	kg/hr	60 – 140
Extruder	Screw	mm	ψ90
	Screw L/D		28 : 1
	Driving Motor	hp	AC 50 HP with Inverter
	Heater Capacity	kw	56.5
	Automatic Thermo-Controller	set	11
Quenching Equipment	Stainless Quenching Bath	set	1
Water Removal Device	Water Removal Air Blower	hp	3 HP x 2
Stretching Unit No. 1	Roll Dimension	mm	ψ213 x 300L
	No. of Roll	pc	5
	Driving Motor	hp	5 HP x 4 P (Inverter)
	Conch	pcs	1
	Speed Range	m/min	6.3 – 22
Stretching Unit No. 2	Heating Oven	set	1 set (Infrared heater)
	Heater Capacity	kw	36
	Air Cylinder	pcs	2
	Roll Dimension	mm	ψ213 x 300 L
	NO. of Roll	pc	5
	Driving Motor	hp	15 HP x 4P (Inverter) x 1
	Conch	pcs	1
	Temperature Controller		1
	Speed Range	m/min	48 – 160
	Embossing Roll	set	1
	DC Torque Motor	hp	5 HP x 1
Straighten Unit	Roll Dimension	mm	ψ213 x 230 L
	No. of Take Up Roll	set	1
	DC Torque Motor	hp	3 HP x 1
	Heater Capacity	kw	15
	Straighten Box	set	1
	Air Cylinder		2
	Conch	pcs	2
	Temperature Controller		1
	Quenching Bath (Stainless Steel)	set	1
	Water Removal Motor	hp	1/4
	Air Blower For Water Removal	hp	3 HP x 2
	No. of Take Up Roll	set	1
	DC Torque Motor	hp	3 HP x 1
Winding Unit	DC Torque Motor	hp	1/4 HP x 6
	Winding Width Range	mm	190
	Core Bobbin	mm	ψ200
	No. Of Spindle	pc	6
Others	Machine Weight	ton	10
	Total Electricity	kw	207 (full loaded)
	Machine Dimension (LxWxH)	m	34 x 2 x 4.2

* All specifications and design characteristics are subject to change without prior notice.
