JS-602 "I" Shape Tetrapack Straw Packing Machine

Classification : Straw Packing Machine/Straw Auto Bagger/ Straw Flow Packer

Applications: Packaging Straw

JUMBO STEEL MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-4-2359-0788

Fax: 886-4-2359-0567

Contact Person: Ms.Kuo

Inquiry Now

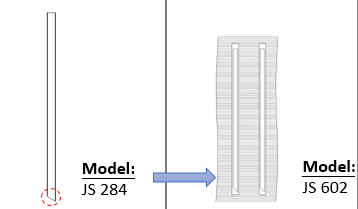

● The machine can perform sharp end cutting on the straws, ensuring all sharp ends are packing in the same direction.
● All machine speeds are variable.
● High production rate of 500-800 pcs/min.
● Automatic machine stop in the event of strew jamming.
● Automatic product counting. Product quantity preset. Once the present value is reached, the alarm will sound.
● All rollers are manufactured from aluminum.
● Suction device for sharp end waste.
● The machine is easy to operate with minimum trouble.

SYNCHRONIZED PUNCHING SPEED
The punching speed is synchronized with strawfeed speed to ensure accurate cutting.
(For easy tear)

MODEL	JS-602
Straw size	3.8mm(dia.)x120mm
Packing material	OPP film x 165mm width
Wrapped straw length	120mm
Speed	450-600 pcs/min
Pitch between two straws	15.7 mm
Unwind paper core	3" dia
Driving motor	2HP x 4P + invertor
Air blower	1/2 HP
Sharp end cutting unit	-
Waste suction device	-
FORMING UNIT
Copper forming pressure roller	1 set (28 cavities)
Heater	1450 W
Temperature controller	1 set
Film take up roller with vacuum	1 set (42 cavities)
(Material : silicon)
Air cylinder	4.8 mm (dia.) x 8 x2 pcs
Punching unit	1 set
Motor for winding	60 W
Auto counter	1 set
Emergency stop	1 pc
Total electricity	4.1 KW
Machine dimensions	4000 x 1000 x 1650 mm
Machine weig ht	1600 kgs
