Extruder Gearboxes

Related Industries
Products

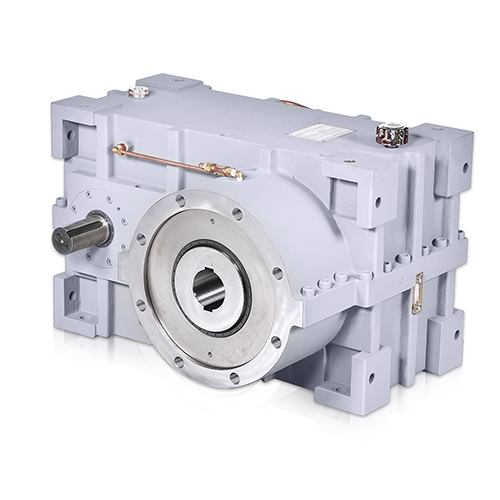

Gearbox - Single Screw Extruder Machine
Gearbox - Single Screw Extruder Machine

Categories : Gearboxes

(1) High strengthen tenacity & compact structure, safety coefficient up to 2.5. (2) Gear Elements are made under the criterion of AGMA. (3) Carburization treatment -> high precision grinding to enhance engagement rate & low noise below 80dB & increase working efficiency to extend machine life.

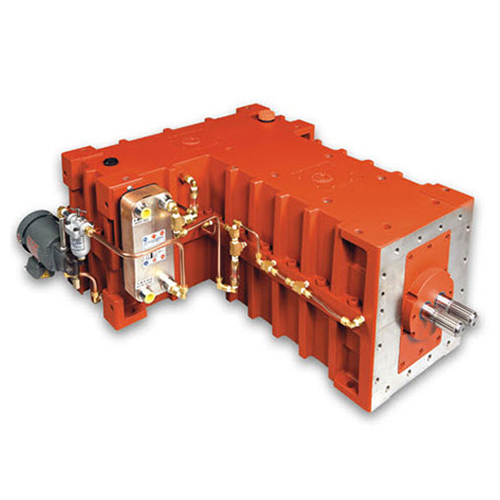

Twin Screw Extruder Co-Rotating Type
Twin Screw Extruder Co-Rotating Type

Categories : Gearboxes

(1) Both Co Rotating & Counter Rotating types of TB series Twin Screw Gear Reducer are composed by Input & Output elements. Especially for output side which installed by Thrust Bearing plus with flange which could suffer high pressure to absorb the axial pressure caused by the extruders. (2) Following AGMA criterion to design gear elements which adopts low-carbon alloy steel bar materials(Normally, it is SCM420 or same level). The precision reaches AGMA 10 level after carburization heat treatment then treating gear surface grinding to make sure low noise, low abrasion and high efficiency during operation. (3) #294 Series Thrust bearing with axial self-aligning roller type & muti-row stacked tandem bearing package to have advantage of low friction heavy axial load capacity.

Twin Screw Extruder - Counter Rotating Type
Twin Screw Extruder - Counter Rotating Type

Categories : Gearboxes

(1) Both Co Rotating & Counter Rotating types of TB series Twin Screw Gear Reducer are composed by Input & Output elements. Especially for output side which installed by Thrust Bearing plus with flange which could suffer high pressure to absorb the axial pressure caused by the extruders. (2) Following AGMA criterion to design gear elements which adopts low-carbon alloy steel bar materials(Normally, it is SCM420 or same level). The precision reaches AGMA 10 level after carburization heat treatment then treating gear surface grinding to make sure low noise, low abrasion and high efficiency during operation. (3) #294 Series Thrust bearing with axial self-aligning roller type & muti-row stacked tandem bearing package to have advantage of low friction heavy axial load capacity.

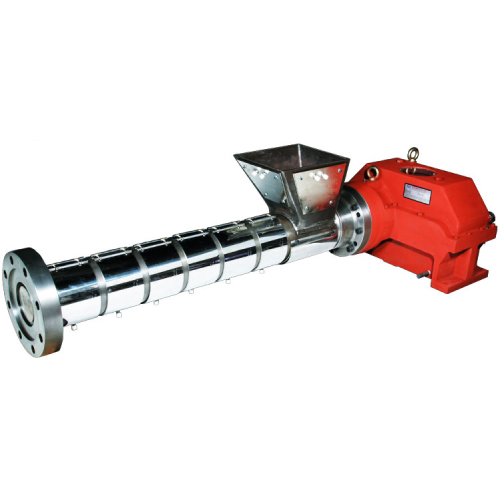

Screw, Barrel & Gear Box for Two-Stage / Multi-Stage Waste Recycling Machine (Side Feeding + Main Machine + Vice Machine)
Screw, Barrel & Gear Box for Two-Stage / Multi-Stage Waste Recycling Machine (Side Feeding + Main Machine + Vice Machine)

Categories : Screws and Barrels

+For various waste materials recycling pelletizing. +To be made of SACM-645 steel through strict & precise process procedure with reliable quality.

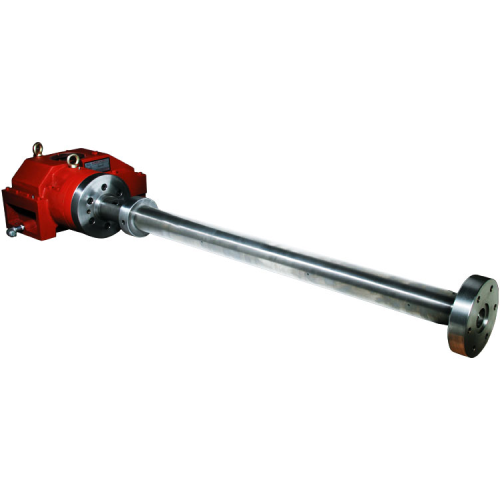

Screw, Barrel & Gear Box for All Kinds of Blown Film Machines / Extrusion Machines
Screw, Barrel & Gear Box for All Kinds of Blown Film Machines / Extrusion Machines

Categories : Gearboxes

+For various extrusion machines. +To be made of SACM-645 steel through strict & precise process procedure with reliable quality.

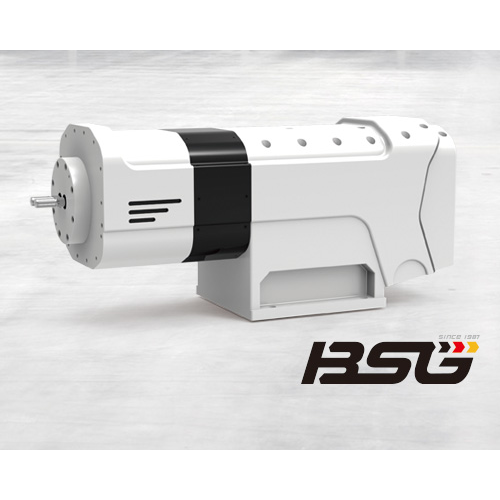

Stepless Gear Box with Selectable Input/Output Orientation
Stepless Gear Box with Selectable Input/Output Orientation

Categories : Gearboxes

Equipped with precise gearbox newly developed by ourselves,our extruder features improved performance, high efficiency, and extended service life. We also produce and export various kinds of extruding machine parts and components. Contact us for more information.
