Classification : Blow Molding Machine
Country: Taiwan
Phone: 886-4-22777457
Fax: 886-4-22777455
Contact Person: Jean Lin
-
Powerful, crank-type mold clamping system combined with German linear motion guides for outstanding performance and high efficiency.
This series is designed to meet high production requirements. Available to equip with auto deflashing device and take-out robot to achieve fully automatic, highly efficient production. - 10" TFT colorful LCD screen with human-machine interface control system. It provides powerful functions, maximum operational convenience and user-friendly operation.

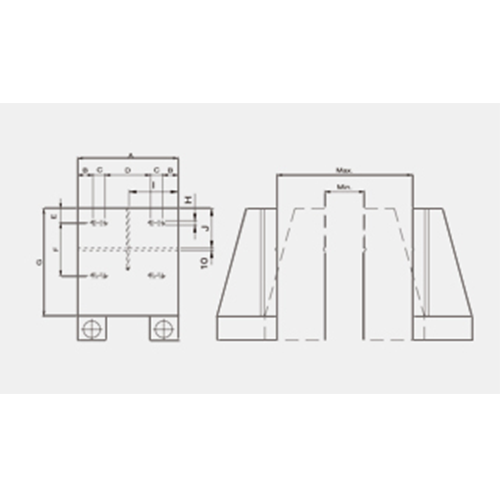

| NO. | PBSS-905 | PBSS-1005 |
| Max. | 500 | 640 |
| Min. | 160 | 240 |
| A | 380 | 420 |
| B | 50 | 65 |
| C | 50 | 50 |
| D | 180 | 190 |
| E | 60 | 60 |
| F | 196 | 220 |
| G | 415 | 449 |
| H | 18 | 18 |
| I | 185 | 205 |
| J | 150 | 165 |
| Model No. | UNIT | PBSS-905S | PBSS-905D | PBSS-905T | PBSS-905Q | PBSS-1005S | PBSS-1005D | PBSS-1005T | PBSS-1005Q |
| Max. product capacity | C.C. | 1,000-5,000 | 600-2,700 | 200-,1,000 | 50-500 | 2,500-10,000 | 1,500-5,000 | 600-2,700 | 200-1,000 |
| Min./Max. dia. of product | mm | 75-200 | 60-140 | 30-100 | 20-80 | 100-250 | 80-180 | 60-140 | 30-100 |
| Screw diameter | mm | 90 | 90 | 90 | 90 | 100 | 100 | 100 | 100 |
| Screw L/D ratio | 24/1 | 24/1 | 24/1 | 24/1 | 26/1 | 26/1 | 26/1 | 26/1 | |
| Inverter motor | HP | 60 | 60 | 60 | 60 | 75 | 75 | 75 | 75 |
| Screw rotating speed | r.p.m. | 15-65 | 15-65 | 15-65 | 15-65 | 15-65 | 15-65 | 15-65 | 15-65 |
| Extruding capacity | kg/hr | 130 | 130 | 130 | 130 | 180 | 180 | 180 | 180 |
| Outer diameter of die mouth | mm | 150 | 80 | 50 | 40 | 200 | 135 | 80 | 50 |
| Mould center distance | mm | ~ | 160 | 120 | 100 | ~ | 250 | 160 | 120 |
| Clamping force | ton | 10.3 | 10.3 | 10.3 | 10.3 | 16.8 | 16.8 | 16.8 | 16.8 |
| Oil hydraulic drive motor | HP | 25 | 25 | 25 | 25 | 40 | 40 | 40 | 40 |
| Dry cycle | sec. | 4.8X2 | 4.8X2 | 5X2 | 5X2 | 5X2 | 5X2 | 5.2X2 | 5.2X2 |
| Pressure of air | kg/cm2 | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 |
| Compressed air consumption | L/min | 2,000 | 2,000 | 2,000 | 2,000 | 2,400 | 2,400 | 2,400 | 2,400 |
| Total power consumption | kw/h | 86.6 | 88.4 | 89.4 | 91.1 | 108.1 | 113.2 | 116.6 | 119.9 |
| Machine net weight | kg | 10,000 | 10,000 | 10,000 | 10,000 | 12,000 | 12,000 | 14,000 | 14,000 |
| Gross weight | kg | 12,000 | 12,000 | 12,000 | 12,000 | 13,500 | 13,500 | 15,500 | 15,500 |
| Machine dimensions | m | 4.6x4.4x2.8 | 4.6x4.4x2.8 | 4.8x4.5x2.8 | 4.8x4.5x2.8 | 5.3x6.2x3.2 | 5.3x6.2x3.2 | 5.6x6.2x3.2 | 5.6x6.2x3.2 |
*All specifications and designs are subject to change without notice.
