Classification : Blow Molding Machine
Country: Taiwan
Phone: 886-4-22777457
Fax: 886-4-22777455
Contact Person: Jean Lin

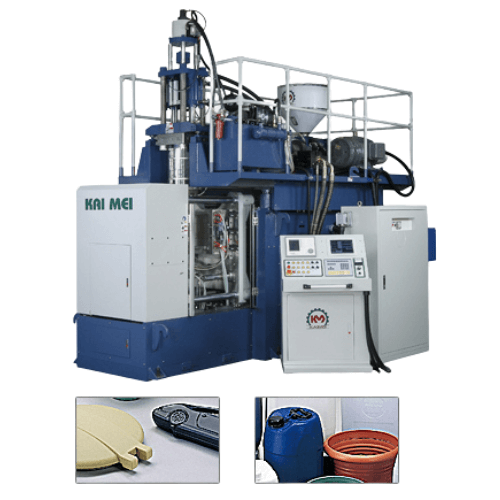

- Screw type with first-in and first-out accumulation type die head provide fast color change. 4 tie-bars for mold platens ensure uniform mold clamping.
- This series is suitable for producing 10~40 liter medium and large sized containers such as chemical and gasoline tanks ,etc.
- 10” TFT colorful LCD screen with human-machine interface (HMI) control system. It provides powerful functions, convenient operation, and user-friendly operations.
- Robot can be installed optionally.
- Optional: Parison control(10/30 points).
| NO. | Max | Min | A | B | C | D | E | F | G | H |
| PBI-705 | 900 | 200 | 655 | 62.5 | 237.5 | 250 | 230 | 700 | 180 | 850 |
| PBI-905 | 1200 | 400 | 830 | 70 | 170 | 515 | 220 | 840 | 140 | 1000 |
| Model No. | UNIT | PBI-705 | PBI-905 |
| Max product capacity | C.C. | 10~25 | 15~40 |
| Screw diameter | mm | 75 | 90 |
| Screw L/D ratio | L/D | 24/1 | 24/1 |
| Inverter motor | HP | 40 | 60 |
| Screw rotating speed | r.p.m. | 15~65 | 15~65 |
| Extruding capacity | kg/hr | 90 | 130 |
| Outer diameter of die mouth | mm | 200 | 300 |
| Accumulator | kg | 2.5 | 5 |
| Clamping force | ton | 28 | 44 |
| Oil hydraulic drive motor | HP | 40 | 50 |
| Air pressure | Kg/cm² | 8~10 | 8~10 |
| Air consumption | L/min | 1,500 | 1,800 |
| Total power consumption | kw/h | 85 | 102 |
| Machine net weight | kg | 10,000 | 13,000 |
| Gross weight | kg | 12,000 | 14,500 |
| Machine dimensions | m | 3.5x1.8x4.5 | 3.7x1.9x5.5 |
