Classification : Blow Molding Machine
Country: Taiwan
Phone: 886-4-22777457
Fax: 886-4-22777455
Contact Person: Jean Lin
• Powerful, crank type mold clamping system combined with German linear guides for maximum stability. This series is ideal for producing medium and large sized containers.
• Multiple die head configuration is especially ideal for producing medium and small sized containers at high production speed.
• Multiple die head configuration is especially ideal for producing medium and small sized containers at high production speed.
Custom machine configurations are available.
• Also available to produce product with visi-stripe, two color and two layers.
• 10" TFT colorful LCD screen with human-machine interface control system. It provides powerful functions, maximum operational convenience and user-friendly operation.
• Also available to produce product with visi-stripe, two color and two layers.
• 10" TFT colorful LCD screen with human-machine interface control system. It provides powerful functions, maximum operational convenience and user-friendly operation.

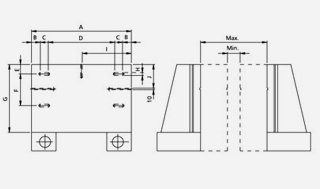

NO. | PBS-905S,D | PBS-905Q | PBS-905O |
MAX. | 640 | 500 | 420 |
MIN. | 240 | 200 | 80 |
A | 450 | 630 | 650 |
B | 35 | 55 | 65 |
C | 50 | 50 | 50 |
D | 220 | 420 | 420 |
E | 60 | 60 | 60 |
F | 220 | 200 | 200 |
G | 449 | 429 | 429 |
H | 18 | 18 | 18 |
I | 220 | 310 | 320 |
J | 165 | 150 | 150 |
Model No. | UNIT | PBS-905S | PBS-905D | PBS-905T | PBS-905Q | PBS-905O |
Max. product capacity | C.C. | 10,000-20,000 | 1,500-5,000 | 600-2,700 | 450-1,800 | 300-500 |
Min./Max. dia. of product | mm | 150-300 | 80-180 | 60-140 | 50-120 | 30-60 |
Screw diameter | mm | 90 | 90 | 90 | 90 | 90 |
Screw L/D ratio | 24/1 | 24/1 | 24/1 | 24/1 | 24/1 | |
Inverter motor | HP | 60 | 60 | 60 | 60 | 60 |
Screw rotating speed | r.p.m. | 15-65 | 15-65 | 15-65 | 15-65 | 15-65 |
Extruding capacity | kg/hr | 130 | 130 | 130 | 130 | 130 |
Outer diameter of die mouth | mm | 240 | 135 | 80 | 65 | 35 |
Mould center distance | mm | ~ | 250 | 160 | 140 | 80 |
Clamping force | ton | 16.8 | 16.8 | 16.8 | 16.8 | 16.8 |
Oil hydraulic drive motor | HP | 30 | 30 | 30 | 30 | 30 |
Dry cycle | sec. | 5.7 | 5.7 | 6.0 | 6.0 | 6.5 |
Pressure of air | kg/cm2 | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 |
Compressed air consumption | L/min | 1,500 | 1,500 | 1,500 | 1,500 | 1,500 |
Total power consumption | kw/h | 96.0 | 94.0 | 95.7 | 99.2 | 101.0 |
Machine net weight | kg | 10,000 | 12,000 | 12,000 | 12,000 | 12,000 |
Gross weight | kg | 11,500 | 13,000 | 13,000 | 13,000 | 13,000 |
Machine dimensions | m | 5.6x4.4x3.5 | 5.1x3.1x2.9 | 5.1x3.1x2.9 | 5.3x2.5x2.4 | 5.3x2.5x2.4 |
*All specifications and designs are subject to change without notice.
