Blow Molding Machine Multi Layer Series

Blow Molding Machine Multi Layer Series
Multi Layer Series

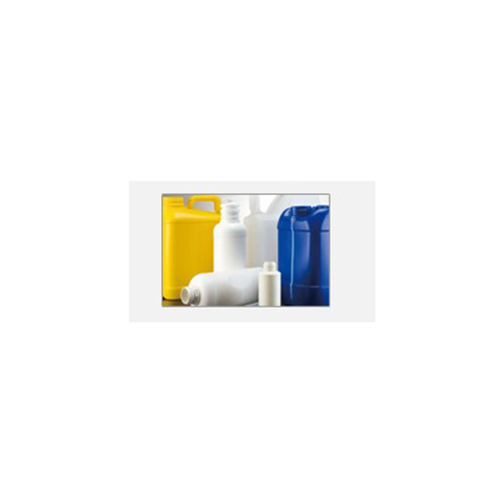

VS series: suitable for visistripe bottles (ex. Motor oil bottle)
  • TC series: for the production of two-color plastic containers or toys
  • TL series: suitable for 2-layer bottles (ex. Cosmetic bottle only outside layer with pearl or color & made of virgin material)
  • Double-head or 3-layer machine can be delivered to order



Model No. UNIT PBS-405S-TRL PBS-405D-TRL
Mould center distance mm   120
Product capacity C.C. 80~1,000 80~400
Min./Max. dia. Of product mm 30~100 20~80
    PE GLUE EVOH PE GLUE EVOH
Screw diameter mm 45 30 30 45 30 30
Screw L/D ratio   24/1 26/1 24/1 24/1 26/1 24/1
Inverter motor HP 10 5 5 10 5 5
Capacitor for barrel KW. 3.8 1.8 1.65 3.8 1.8 1.65
Screw Speed r.p.m. 20~65 20~65
Extruding capacity kg/hr 24 24
Capacitor for die head KW 3.5 4.8
Clamping force ton 4.6 4.6
Hydraulic Drive Motor HP 5 5
Air pressure Kg/cm² 6~8 6~8
Air consumption L/min 500 500
Total Electric Power KW 30 31
Average Energy Consumption KW 24 25
Machine N.W. kg 2,700 2,700
Machine G.W. kg 3,200 3,200







Model No. UNIT PBS-405S-QL PBS-405D-QL
Mould center distance mm   120
Product capacity C.C. 80~1,000 80~400
Min./Max. dia. Of product mm 30~100 20~80
    PE PE GLUE EVOH PE PE GLUE EVOH
Screw diameter mm 40 40 40 30 40 40 30 30
Screw L/D ratio   24/1 24/1 26/1 24/1 24/1 24/1 26/1 24/1
Inverter motor HP 7.5 7.5 5 5 7.5 7.5 5 5
Capacitor for barrel KW. 3 3 1.8 1.65 3 3 1.8 1.65
Screw Speed r.p.m. 20~65 20~65
Extruding capacity kg/hr 24 24
Capacitor for die head KW 3.8 5.2
Clamping force ton 4.6 4.6
Hydraulic Drive Motor HP 5 5
Air pressure Kg/cm² 6~8 6~8
Air consumption L/min 500 500
Total Electric Power KW 36 37
Average Energy Consumption KW 29 30
Machine N.W. kg 2,700 2,700
Machine G.W. kg 3,200 3,200







Model No. UNIT PBS-405S-FL PBS-405D-FL
Mould center distance mm   120
Product capacity C.C. 80~1,000 80~400
Min./Max. dia. Of product mm 30~100 20~80
    PE GLUE EVOH PE GLUE EVOH
Screw diameter mm 45 30 30 45 35 30
Screw L/D ratio   24/1 26/1 24/1 24/1 26/1 24/1
Inverter motor HP 10 5 5 10 5 5
Capacitor for barrel KW. 3 1.8 1.65 3.8 2.5 1.8
Screw Speed r.p.m. 20~65 20~65
Extruding capacity kg/hr 24 24
Capacitor for die head KW 4 5.7
Clamping force ton 4.6 4.6
Hydraulic Drive Motor HP 5 5
Air pressure Kg/cm² 6~8 6~8
Air consumption L/min 500 500
Total Electric Power KW 29 33
Average Energy Consumption KW 24 26
Machine N.W. kg 2,700 2,700
Machine G.W. kg 3,200 3,200







Model No. UNIT PBS-605S-TRL PBS-605D-TRL
Mould center distance mm   160
Product capacity C.C. 1,000~5,000 450~1,800
Min./Max. dia. Of product mm 70~200 50~110
    PE GLUE EVOH PE GLUE EVOH
Screw diameter mm 60 35 35 60 35 35
Screw L/D ratio   24/1 26/1 24/1 24/1 26/1 24/1
Inverter motor HP 20 5 5 20 5 5
Capacitor for barrel KW. 6.3 2.5 2.325 6.3 2.5 2.325
Screw Speed r.p.m. 20~65 20~65
Extruding capacity kg/hr 55 55
Capacitor for die head KW 6 10
Clamping force ton 9 9
Hydraulic Drive Motor HP 15 15
Air pressure Kg/cm² 6~8 6~8
Air consumption L/min 700 700
Total Electric Power KW 51 55
Average Energy Consumption KW 40.8 44
Machine N.W. kg 5,100 5,100
Machine G.W. kg 5,800 5,800







Model No. UNIT PBS-605S-QL PBS-605D-QL
Mould center distance mm   160
Product capacity C.C. 1,000~5,000 450~1,800
Min./Max. dia. Of product mm 70~200 50~110
    PE PE GLUE EVOH PE PE GLUE EVOH
Screw diameter mm 55 45 35 35 55 45 35 35
Screw L/D ratio   24/1 24/1 26/1 24/1 24/1 24/1 26/1 24/1
Inverter motor HP 15 10 5 5 15 10 5 5
Capacitor for barrel KW. 5.8 3.8 2.5 2.325 5.8 3.8 2.5 2.325
Screw Speed r.p.m. 20~65 20~65
Extruding capacity kg/hr 55 55
Capacitor for die head KW 7 11
Clamping force ton 9 9
Hydraulic Drive Motor HP 15 15
Air pressure Kg/cm² 6~8 6~8
Air consumption L/min 700 700
Total Electric Power KW 59 63
Average Energy Consumption KW 47.2 50.4
Machine N.W. kg 5,100 5,100
Machine G.W. kg 5,800 5,800



Model No. UNIT PBS-605S-FL PBS-605D-FL
Mould center distance mm   160
Product capacity C.C. 1,000~5,000 450~1,800
Min./Max. dia. Of product mm 70~200 50~110
    PE GLUE EVOH PE GLUE EVOH
Screw diameter mm 60 35 35 60 35 35
Screw L/D ratio   24/1 26/1 24/1 24/1 26/1 24/1
Inverter motor HP 20 5 5 20 5 5
Capacitor for barrel KW. 6.3 2.5 2.325 6.3 2.5 2.325
Screw Speed r.p.m. 20~65 20~65
Extruding capacity kg/hr 55 55
Capacitor for die head KW 8 12
Clamping force ton 9 9
Hydraulic Drive Motor HP 15 15
Air pressure Kg/cm² 6~8 6~8
Air consumption L/min 700 700
Total Electric Power KW 53 60
Average Energy Consumption KW 42.4 48
Machine N.W. kg 5,100 5,100
Machine G.W. kg 5,800 5,800





Model No. UNIT PBS-905S-TRL PBS-905D-TRL
Mould center distance mm   250
Product capacity C.C. 10,000~20,000 1,500~5,000
Min./Max. dia. Of product mm 150~300 120~200
    PE GLUE EVOH PE GLUE EVOH
Screw diameter mm 90 45 45 90 45 45
Screw L/D ratio   24/1 26/1 24/1 24/1 26/1 24/1
Inverter motor HP 60 10 10 60 10 10
Capacitor for barrel KW. 14.1 4.1 3.8 14.1 4.1 3.8
Screw Speed r.p.m. 20~65 20~65
Extruding capacity kg/hr 130 130
Capacitor for die head KW 12 16.2
Clamping force ton 21 21
Hydraulic Drive Motor HP 30 30
Air pressure Kg/cm² 6~8 6~8
Air consumption L/min 1,500 1,500
Total Electric Power KW 117 121
Average Energy Consumption KW 93 97
Machine N.W. kg 10,600 10,600
Machine G.W. kg 12,100 12,100







Model No. UNIT PBS-905S-QL PBS-905D-QL
Mould center distance mm   250
Product capacity C.C. 10,000~20,000 1,500~5,000
Min./Max. dia. Of product mm 150~300 120~200
    PE PE GLUE EVOH PE PE GLUE EVOH
Screw diameter mm 75 65 45 45 75 65 45 45
Screw L/D ratio   24/1 24/1 26/1 24/1 24/1 24/1 26/1 24/1
Inverter motor HP 40 20 10 10 40 20 10 10
Capacitor for barrel KW. 10 6.7 4.1 3.8 10 6.7 4.1 3.8
Screw Speed r.p.m. 20~65 20~65
Extruding capacity kg/hr 130 130
Capacitor for die head KW 13 17.5
Clamping force ton 21 21
Hydraulic Drive Motor HP 30 30
Air pressure Kg/cm² 6~8 6~8
Air consumption L/min 1500 1500
Total Electric Power KW 120 125
Average Energy Consumption KW 96 100
Machine N.W. kg 10,600 10,600
Machine G.W. kg 12,100 12,100



Model No. UNIT PBS-905S-FL PBS-905D-FL
Mould center distance mm   250
Product capacity C.C. 10,000~20,000 1,500~5,000
Min./Max. dia. Of product mm 150~300 120~200
    PE GLUE EVOH PE GLUE EVOH
Screw diameter mm 90 45 45 90 55 45
Screw L/D ratio   24/1 26/1 24/1 24/1 26/1 24/1
Inverter motor HP 60 10 10 60 15 10
Capacitor for barrel KW. 14.1 4.1 3.8 14.1 7.3 3.8
Screw Speed r.p.m. 20~65 20~65
Extruding capacity kg/hr 130 130
Capacitor for die head KW 14.5 19
Clamping force ton 21 21
Hydraulic Drive Motor HP 30 30
Air pressure Kg/cm² 6~8 6~8
Air consumption L/min 1,500 1,500
Total Electric Power KW 119 131
Average Energy Consumption KW 95 104
Machine N.W. kg 10,600 10,600
Machine G.W. kg 12,100 12,100



*All specifications and designs are subject to change without notice.
