Classification : Blow Molding Machine
Country: Taiwan
Phone: 886-4-22777457
Fax: 886-4-22777455
Contact Person: Jean Lin
- Custom design is avaiable to suit various plastic materials such as PE, PP, PVC, PS, PC and nylon. Designed for producing medium and small sized containers.
- Featuring fully flash-free and highly efficient automatic long production runs.
- 5" monochrome LCD screen combined with human-machine interface control system for user-friendly operations.

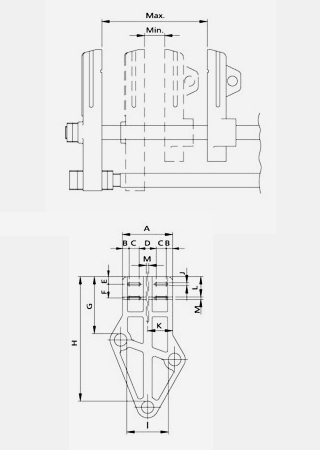

NO. | PBS-305 | PBS-405 | PBS-505 |
MAX. | 230 | 320 | 420 |
MIN. | 60 | 60 | 80 |
A | 200 | 260 | 300 |
B | 25 | 55 | 45 |
C | 40 | 40 | 60 |
D | 70 | 70 | 90 |
E | 30 | 40 | 40 |
F | 55 | 70 | 92 |
G | 225 | 310 | 300 |
H | 496 | 640 | 624 |
I | 150 | 200 | 240 |
J | 12 | 15 | 16 |
K | 100 | 130 | 150 |
L | 86 | 75 | 86 |
M | 10 | 10 | 10 |
*All specifications and designs are subject to change without notice.
Model No. | UNIT | PBS-305S | PBS-305D | PBS-305T | PBS-405S | PBS-405D |
Product capacity | C.C. | 50-500 | 30-200 | 10-100 | 80-1,000 | 50-500 |
Product diameter | mm | 20-80 | 15-65 | 8-30 | 30-100 | 20-80 |
Screw diameter | mm | 40 | 40 | 40 | 45 | 45 |
Screw L/D ratio | 22/1 | 22/1 | 22/1 | 24/1 | 24/1 | |
Inverter motor | HP | 7.5 | 7.5 | 7.5 | 10 | 10 |
Screw rotation speed | r.p.m. | 15-65 | 15-65 | 15-65 | 15-65 | 15-65 |
Extruding capacity | kg/hr | 14 | 14 | 14 | 24 | 24 |
Max. Die mouth diameter | mm | 40 | 35 | 25 | 55 | 40 |
Mould center distance | mm | ~ | 85 | 75 | ~ | 100 |
Clamping force | ton | 2.4 | 2.4 | 2.4 | 4.5 | 4.5 |
Hydraulic drive motor | HP | 5 | 5 | 5 | 5-7.5 | 5-7.5 |
Dry cycle | sec. | 2.6 | 2.6 | 2.6 | 3 | 3 |
Air pressure | Bar | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 |
Air consumption | L/min | 500 | 500 | 600 | 600 | 500 |
Total power consumption | kw/h | 14.4 | 15.9 | 16.3 | 21.5 | 21.9 |
Machine net weight | kg | 1,400 | 1,400 | 1,400 | 2,500 | 2,500 |
Gross weight | kg | 1,900 | 1,900 | 1,900 | 3,000 | 3,000 |
Machine dimension | m | 2.3x1.5x2.2 | 2.3x1.5x2.2 | 2.4x1.6x2.2 | 2.8x2.1x2.3 | 2.8x2.1x2.3 |
Model No. | UNIT | PBS-405T | PBS-405Q | PBS-505S | PBS-505D | PBS-505T | PBS-505Q |
Product capacity | C.C. | 30-200 | 10-100 | 450-2,500 | 200-1,000 | 50-500 | 30-200 |
Product diameter | mm | 15-65 | 8-30 | 45-150 | 30-100 | 20-80 | 15-65 |
Screw diameter | mm | 45 | 45 | 55 | 55 | 55 | 55 |
Screw L/D ratio | 24/1 | 24/1 | 24/1 | 24/1 | 24/1 | 24/1 | |
Inverter motor | HP | 10 | 10 | 15 | 15 | 15 | 15 |
Screw rotation speed | r.p.m. | 15-65 | 15-65 | 15-65 | 15-65 | 15-65 | 15-65 |
Extruding capacity | kg/hr | 24 | 24 | 36 | 36 | 36 | 36 |
Max. Die mouth diameter | mm | 35 | 25 | 80 | 50 | 40 | 35 |
Mould center distance | mm | 85 | 75 | ~ | 120 | 100 | 85 |
Clamping force | ton | 4.5 | 4.5 | 5.3 | 5.3 | 5.3 | 5.3 |
Hydraulic drive motor | HP | 5-7.5 | 5-7.5 | 7.5-10 | 7.5-10 | 7.5-10 | 7.5-10 |
Dry cycle | sec. | 3 | 3 | 3.3 | 3.3 | 3.6 | 3.6 |
Air pressure | Bar | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 |
Air consumption | L/min | 600 | 600 | 700 | 700 | 700 | 700 |
Total power consumption | kw/h | 24.7 | 26.3 | 29.0 | 31.2 | 33.3 | 33.4 |
Machine net weight | kg | 2,500 | 2,500 | 3,700 | 3,700 | 3,700 | 3,700 |
Gross weight | kg | 3,000 | 3,000 | 4,200 | 4,200 | 4,200 | 4,200 |
Machine dimension | m | 2.9x2.2x2.3 | 2.9x2.2x2.3 | 3.2x1.8x2.3 | 3.2x1.8x2.3 | 3.4x2.5x2.5 |
3.4x2.5x2.5 |
*All specifications and designs are subject to change without notice.
