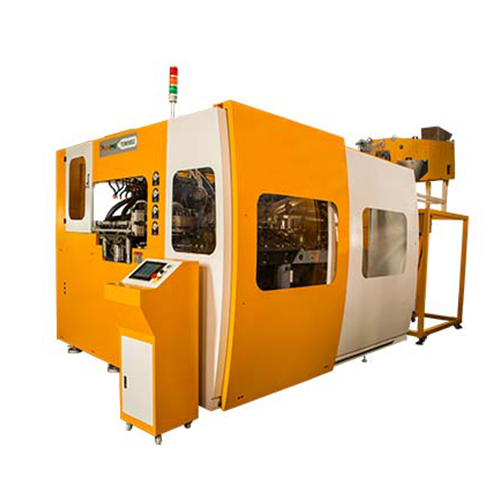

Classification : PET BLOW MOLDING MACHINE
Country: Taiwan
Phone: 886-4-23345536/ 86-595-88169879
Fax: 886-4-23345539/ 86-595-88165687
Contact Person: Claire
- Adopt the touch screen control system with 64K color and friendly PLC operation.
- Exclusively designed machine construction makes it convenient to combine the blow molding machine with conveyor system.
- The preforms are automatically arranged in order for feeding system at a single way and the dividing carrier is driven by a servo motor; this way will avoid preforms jamming, causing machine down or preforms waste.
- Adopt a servo control screw driving system; it is rapid, stable, clean and environmentally friendly.
- The preforms are fed into the heating system in a matrix mode and uniform heated by single-lamp with double-sided heating.
- Employ a single-lamp with double-side heating design and will save about 50% heating consumption compared with competitor method.
- With the temperature feedback function, temperature in the heating oven is automatically controlled by adjustment of infrared lamps to reduce prefrom crystallization problems.
- Specially designed heating box upgrade convenience of maintenance in changing infrared lamp and cooling ramp.
- The clamping mechanism is driven by a combination of servo motor and cam; this results in accurate and stable motion, low noise and minimal pollution.
- Utilizes the air recovery system and efficiency up to 50% so that the low-pressure air compressor will not be required. This will save equipment investment costs and energy consumption by up to 15%.
Model | Cavity no. | Theoretical Output | Preform Holder | Heating pitch | Cavity pitch | Bottle volume | Preform neck | Preform height | Bottle diameter | Bottle height | Oven no. | Heating power | Installed power |
Machine size |
Machine wt. | origin | |
cavity | BPH | pcs | mm | mm | Max. | Max. (mm) | Max. (mm) | Max. (mm) | Max. (mm) |
box *channel |
kW | kW | cm | kg | Taiwan | China | |
LM02L | 2 | 1500 | 64 | 76.2 | 240 | 12Ltr. | 65 | 190 | 210 | 450 | 6*1 | 125 | 140 |
600*420 *320 |
7000 | ◎ | ◎ |
EX02MC | 2 | 2000 | 62 | 62 | 114.3 | 1.5Ltr. | 38 | 150 | 105 | 320 | 1*2 | 19 | 24 |
230*220 *350 |
2500 | ◎ | |
EX02MC-SH | 2 | 2000 | 62 | 62 | 114.3 | 1.5Ltr. | 38 | 150 | 105 | 320 | 1*2 | 38 | 48 |
230*220 *350 |
2500 | ◎ | |
EX04MC | 4 | 4000 | 62 | 114.3 | 1.5Ltr. | 38 | 150 | 105 | 320 | 1*4 | 38 | 48 |
430*410 *350 |
5500 | ◎ | ||
EX04MC-SH | 4 | 4000 | 62 | 114.3 | 1.5Ltr. | 38 | 150 | 105 | 320 | 1*4 | 76 | 96 |
430*410 *350 |
5500 | ◎ | ||
EM04S2-88 | 4 | 6000 | 128 | 54 | 88 | 1Ltr. | 38 | 100 | 80 | 262 | 1*2 | 38 | 51 |
430*410 *330 |
5500 | ◎ | ◎ |
EM04M1 | 4 | 5300 | 144 | 54 | 128 | 2Ltr. | 38 | 160 | 115 | 320 | 1*2 | 44 | 56 |
520*440 *330 |
7000 | ◎ | ◎ |
EM04M2 | 4 | 5300 | 144 | 54 | 128 | 2Ltr. | 38 | 160 | 115 | 320 | 2*2 | 82 | 94 |
520*440 *330 |
7000 | ╳ | ╳ |
EM06S2 | 6 | 9000 | 168 | 54 | 80 | 0.75Ltr. | 38 | 100 | 70 | 240 | 1*3 | 47 | 59 |
540*320 *350 |
6000 | ◎ | ◎ |
EM06M1 | 6 | 7800 | 168 | 54 | 128 | 2Ltr. | 38 | 160 | 115 | 320 | 1*3 | 66 | 78 |
620*530 *350 |
9000 | ◎ | ◎ |
EM08S1 | 8 | 11000 | 196 | 54 | 80 | 0.75Ltr. | 38 | ╳ | ╳ | ||||||||
EM08S2 | 8 | 12000 | 224 | 54 | 80 | 0.75Ltr. | 38 | 100 | 70 | 240 | 1*4 | 64 | 74 |
620*370 *350 |
7500 | ◎ | |
EM08S2-88 | 8 | 12000 | 224 | 54 | 88 | 1Ltr. | 38 | 100 | 80 | 262 | 1*4 | 62 | 74 |
540*510 *350 |
7500 | ◎ | |
EM12S2 | 12 | 16000 | 336 | 54 | 80 | 0.75Ltr. | 38 | 100 | 70 | 240 | 2*3 | 94 | 118 |
590*560 *350 |
13000 | ◎ | |
EM16S2 | 16 | 21000 | 448 | 54 | 80 | 0.75Ltr. | 38 | 100 | 70 | 240 | 2*4 | 128 | 148 |
680*650* 350 |
15000 | ◎ |
