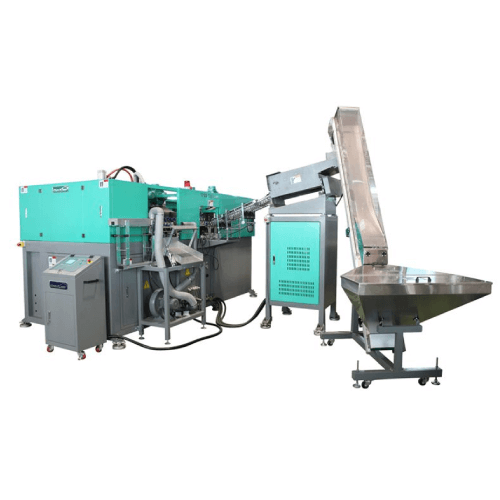

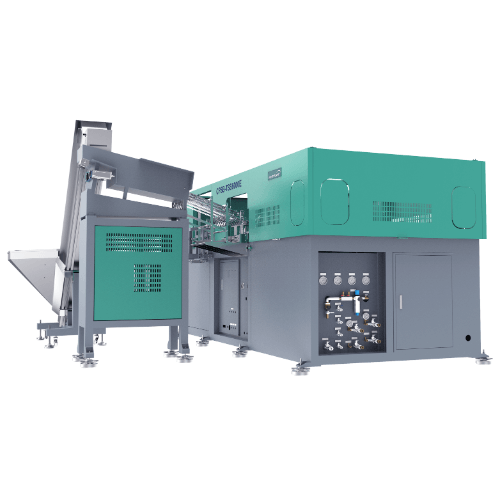

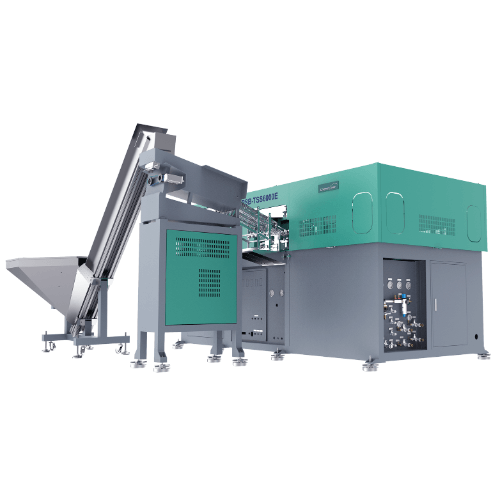

PET Stretch Blow Molding Machine-Phoenix Series
Classification : PET Blow Molding Machine
CHUMPOWER MACHINERY CORP.

Country: Taiwan
Phone: 886-4-2338-8289
Fax: 886-4-2338-0219
Contact Person: Paggy Lin
Pneumatic Version:
1. Automatic preform infeed, heating, and blowing
2. Patent chain adjustment for easy repair and maintenance.
3. Widely applied heating design that can be adapted for different products.
4. Touch-panel interface, allowing easy operation.
5. Modular design for easy repair and maintenance.
6. Cost saving for increased competitiveness.
7. Small floor footprint
Electric Version:
1. Positioning servo, fast and stable
2. Molding servo for low vibration and noise
3. Blowing servo for easy adjustment
4. Heating temperature with compensation control
5. High pressure blowing for recycling and reuse
Applicable Types:
Mineral Water, CSD, Seasonings, Carbonated Drinks, Tea, Fruit Juice, Distilled Water, Alcoholic Beverages, Cooking Oil, Cleaning Agents, Cosmetics
TYPE
|
MODEL | MAX.CAPACITY | NECK LNT-DIAMETER | CAVITY | OUTPUT BPH |
FULLY ELECTRIC | CPSB-TS2000E | 1.5 ltr | 38mm | 2 | 2800 |
CPSB-T3000E | 3 ltr | 38mm | 3 | 4200 | |
CPSB-TS4000E | 1.5 ltr | 38mm | 4 | 5600 | |
CPSB-TSS6000E | 0.6 ltr | 38mm | 6 | 8400 | |
STANDARD | CPSB-TS2000 | 1.5 ltr | 38mm | 2 | 2000 |
CPSB-TS2000W | 1.5 ltr | 63mm | 2 | 2000 | |
CPSB-TS2000H | 1.5 ltr | 38mm | 2 | 1000 | |
CPSB-T3000 | 3 ltr | 38mm | 3 | 3000 | |
CPSB-TSS3000 | 0.6 ltr | 38mm | 3 | 3000 | |
CPSB-TS4000 | 1.5 ltr | 38mm | 4 | 4000 | |
CPSB-TS4000H | 1.5 ltr | 38mm | 4 | 2000 | |
CPSB-TSS6000 | 0.6 ltr | 38mm | 6 | 6000 |
