Single Body Vacuum Oil Hydraulic Compression Molding Machine - FCV Series

Classification : PRODUCTS

LONG CHANG MECHANICAL INDUSTRIAL CO., LTD.

Country: Taiwan

Phone: 886-6-2531251

Fax: 886-6-2535271

Contact Person: Ping Shun Huang

Inquiry Now

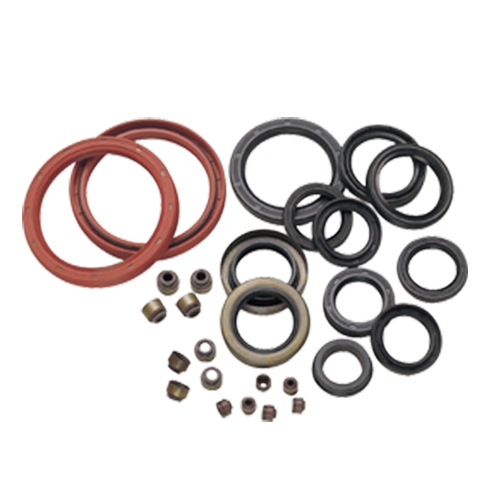

● Automobile & Motorcycle oil seal, valve steam seal, V seal, O-ring etc rubber seal products..

● With high efficiency vacuum cover and vacuum system reduce products curing time and liminate inside air bubbles, increase products quality.
● Interface touch screen operation, every machine fanction can free adjustable, easy operation and understand fully at glance.

SPEC	TYPE	FCVR-65 TON	FCVR-80 TON	FCVR-100 TON	FCVR-150 TON	FCVR-250 TON
SPEC	TYPE	(2RT)	(2RT)	(2RT)	(2RT)	(2RT)
CLAMPING FORCE	TON	65	80	100	150	250
HEATING PLATE SIZE	MM	250x300	290x320	350x400	450x480	570x610
MOLD PLATEN SIZE	MM	290X300	330X330	390X420	500X520	620X620
CYLINDER STROKE	MM	150	150	180	200	200
PUMP PRESSURE	KGF/CM2	210	210	210	210	210
MOTOR	HP	3	3	5	5	5/7.5
HEATER CAPACITY	KW	4	4	6	8	10
MACHINE DIMENSIONS	L	1200	1200	1820	1920	2030
	MM W	1900	1900	2200	2320	2420
	H	1900	1900	2200	2200	2300
MACHINE WEIGHT	KG	2500	2500	3650	5200	6300
