Twin Body Die-Moving & Ejection Compression Molding Machine - FBS SERIES

Classification : PRODUCTS
Country: Taiwan
Phone: 886-6-2531251
Fax: 886-6-2535271
Contact Person: Ping Shun Huang
Inquiry Now

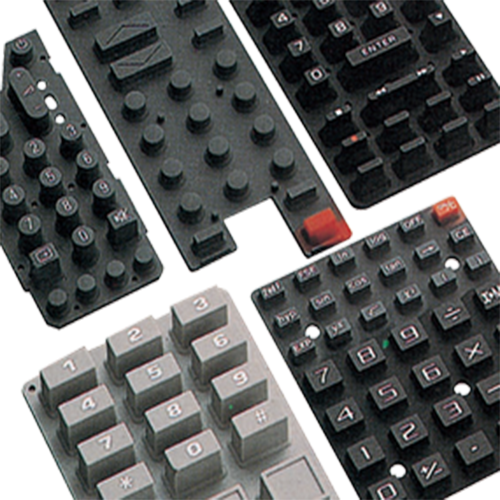

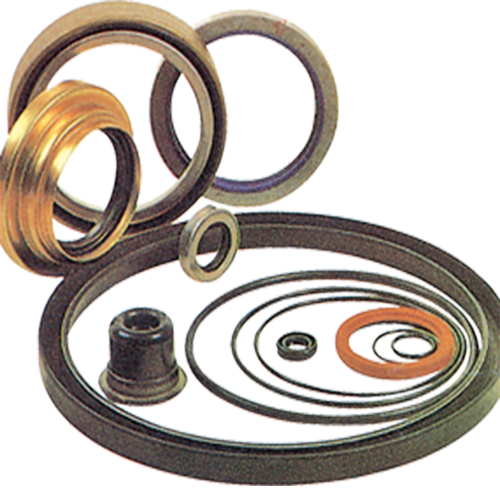

  • Conductive rubber, oil seal, automobile parts, keyboard pad, brake lining, mahjong, nontoxic rubber, thermos bottle plugs, nipple, medical rubber plugs etc.
SPEC TYPE    FBS-100 FBS-150 FBS-200 FBS-250 FBS-300 FBS-350
CLAMPING FORCE TON 100 150 200 250 300 300
PLATE SIZE MM 500x500 500x605 500x605 600x650 500x600 800x600
STROKE MM 450 450 450 500 500 500
DAYLIGHT MM 600 600 650 700 700 700
OIL TANK CAPACITY GAL 150 150 200 300 300 300
PUMP PRESSURE KG/CM2 210 210 210 210 210 210
MOTOR HP 5x2 5x2 7.5x2 10x2 10x2 10x2
HEATER CAPACITY KW 14 16 16 20 20 24
  L 3185 3365 3265 3905 3645 3845
MACHINE DIMENSIONS W 1730 2100 2040 1750 2000 2000
  H 2200 2400 2500 2285 2250 2250
MACHINE WEIGHT KG 7150 8100 9250 11300 11200 13500
WRAPPING WEIGHT APPROX KG 7750 8700 10000 12100 12000 14300
