Classification : PRODUCTS
Country: Taiwan
Phone: 886-6-2531251
Fax: 886-6-2535271
Contact Person: Ping Shun Huang

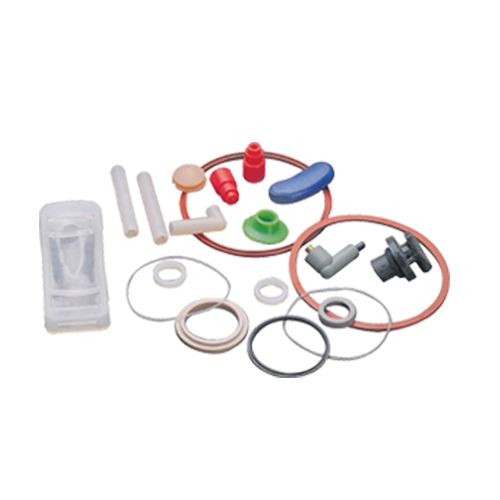

- For solid silicone material products only. Automobile spark plug soft tubing, medical treatment equipment parts, drinking water machine parts and other silicone products.
SPEC |
TYPE |
FCRS-150 |
FCRS-200 |
FCRS-260 |
FCRS-300 |
FCR-450 |
FCRS-500 |
|---|---|---|---|---|---|---|---|
MAX SHOT VOLUME |
C.C. |
50-1000 |
10-1500 |
50-2000 |
50-3000 |
50-4000 |
50-5000 |
INJECTION PRESSURE |
KG/CM2 |
1900 |
1900 |
1900 |
1900 |
1800 |
1800 |
HYDRAULIC PRESSURE |
KG/CM2 |
210 |
210 |
210 |
210 |
210 |
210 |
SCREW DIAMETER |
MM |
35 |
45 |
45 |
45 |
45 |
50 |
SCREW SPEED |
PRM |
30-120 |
30-120 |
30-120 |
30-120 |
30-120 |
30-120 |
CLAMPING FORCE |
TON |
150 |
200 |
260 |
300 |
450 |
500 |
OPENING STROKE |
KW |
400 |
500 |
500 |
540 |
600 |
700 |
DAYLIGHT |
MM |
600 |
650 |
650 |
740 |
800 |
900 |
PLATE SIZE |
MM |
500x500 |
500x600 |
500x600 |
600x650 |
650x700 |
760x870 |
MOTOR |
HP |
10 |
15 |
20 |
25 |
30 |
50 |
HEATING CAPACITY |
KW |
8 |
10 |
10 |
12 |
14 |
16 |
HEATING TRANSFER |
HP |
1/2x2 |
1/2x2 |
1/2x2 |
1/2x2 |
1/2x2 |
1/2x2 |
SYSTEM PRESSURE |
HP |
210 |
210 |
210 |
210 |
210 |
210 |
TANK CAPACITY |
GAL |
150 |
150 |
150 |
200 |
250 |
250 |
|
|
L |
1950 |
2000 |
2000 |
2200 |
2300 |
2500 |
MACHINE DIMENSIONS |
W |
2050 |
2350 |
2350 |
2400 |
2530 |
2750 |
|
|
H |
3450 |
3600 |
3600 |
3500 |
4730 |
4950 |
MACHINE WEIGHT |
KG |
5500 |
6800 |
7300 |
10500 |
12000 |
16000 |
WRAPPING WEIGHT APPROX |
KG |
5800 |
7100 |
7800 |
11000 |
13200 |
16500 |
