Classification : PRODUCTS
Country: Taiwan
Phone: 886-6-2531251
Fax: 886-6-2535271
Contact Person: Ping Shun Huang

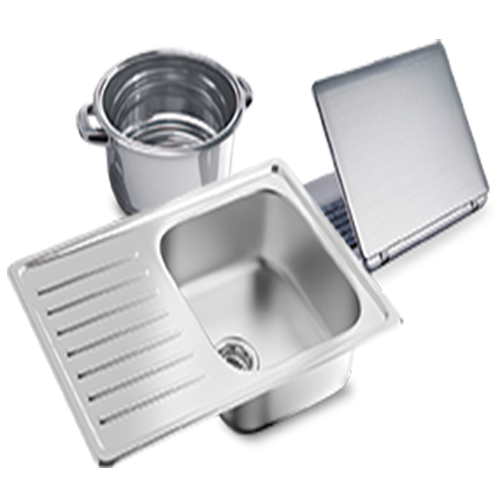

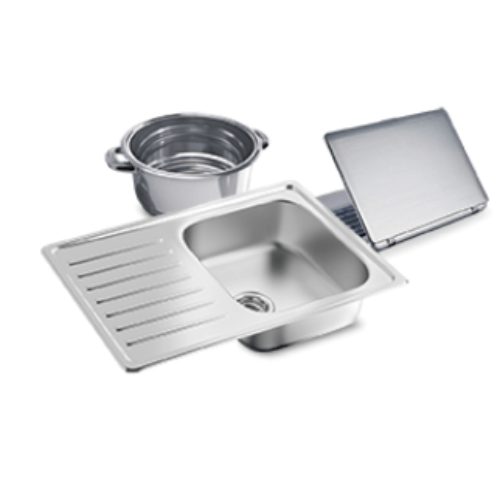

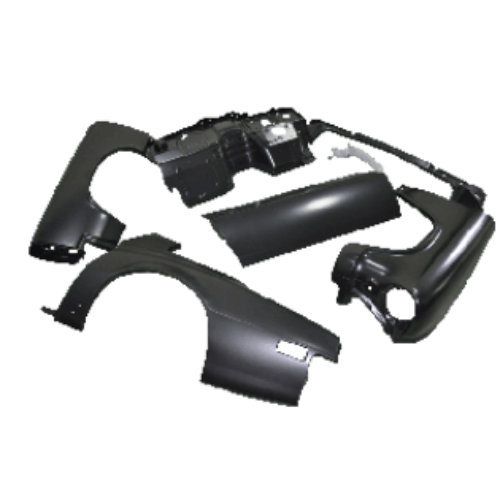

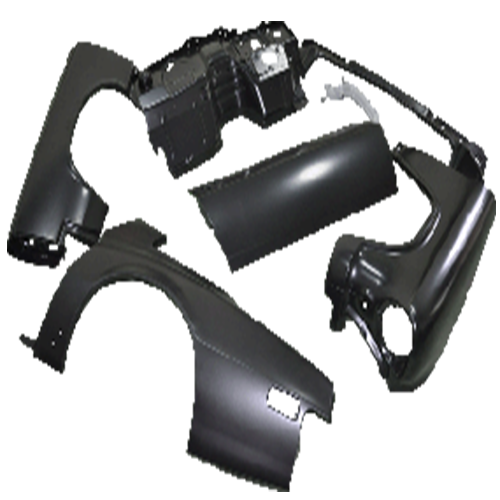

- It is suit produce magnesium components finished products, Notebook computer case, also can be formed with steel plate or stainless for making any parts such as kitchen appliance, automobile, motorcycle and bicycle hot and cold forging parts.
| FCT-L | TYPE | FCT-L-600 | FCT-L-800 | FCT-L-1600 | FCT-L-2000 | FCT-L-2400 |
|---|---|---|---|---|---|---|
| CLAMPING FORCE | TON | 600 | 800 | 1600 | 2000 | 2400 |
| PLATE SIZE | MM | 1000x800 | 1000x800 | 1000x800 | 1500x1500 | 1500x1500 |
| STROKE | MM | 550 | 500 | 500 | 700 | 700 |
| DAYLIGHT | MM | 800 | 700 | 700 | 1000 | 1000 |
| PUMP PRESSURE | KG/CM2 | 210 | 210 | 210 | 180 | 210 |
| MOTOR | KW | 22KWx1台 11KWx1台 |
22KWx1台 11KWx1台 |
22KWx1台 18KWx1台 |
45KWx1台 22KWx1台 |
45KWx1台 30KWx1台 |
| OIL TANK CAPACITY | GAL | 350 | 350 | 700 | 800 | 900 |
| MACHINE SIZE LxWxH | MM | 2500x1850x3600 | 4460x2250x4500 | 4260x2500x5550 | 5060x3050x6300 | 5150x3140x6300 |
