Classification : PRODUCTS
Country: Taiwan
Phone: 886-6-2531251
Fax: 886-6-2535271
Contact Person: Ping Shun Huang

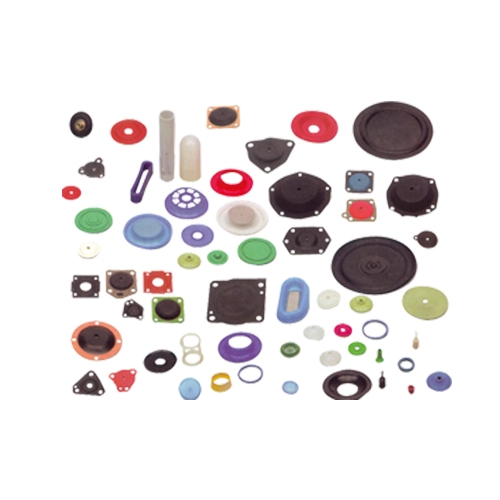

- Natural rubber, synthetic rubber, oil-proof & heat-proof rubber and reclaimed rubber products.
- Automobile parts, electronic components, diving items, oil seal, soprt goods and other rubber products.
SPEC |
TYPE |
FCH-100 |
FCH-150 |
FCH-200 |
FCH-300 |
MAX SHOT VOLUME |
C.C. |
50-1200 |
50-1500 |
60-2000 |
60-3000 |
INJECTION PRESSURE |
KG/Cm2 |
1800 |
1800 |
1800 |
1800 |
HYDRAULIC PRESSURE |
KG/Cm2 |
210 |
210 |
210 |
210 |
SCREW DIAMETER |
mm |
40 |
45 |
45 |
45 |
SCREW SPEED |
PRM |
50-150 |
50-150 |
50-150 |
50-150 |
MATERIAL SIZE(TxW) |
(TxW)(MM) |
6 X 40 |
6 X 40 |
6 X 50 |
6 X 50 |
TIE BAR INTERNAL DIMENSION |
(MM) |
430x550 |
450x600 |
500x650 |
600x700 |
CLAMPING FORCE |
(TON) |
100 |
150 |
200 |
300 |
OPENING FORCE |
(TON) |
12 |
15 |
18 |
20 |
CLAMPING MIN SPACE |
(m/m) |
150 |
150 |
160 |
170 |
CLAMPING MAX SPACE |
(m/m) |
450 |
480 |
520 |
650 |
EJECT STROCK |
(m/m) |
100 |
100 |
100 |
100 |
EJECT FORCE |
(KW) |
5 |
5.5 |
6 |
8 |
MOTOR |
(HP) |
10 |
15 |
20 |
25 |
HEATING CAPACITY |
(KW) |
8 |
10 |
12 |
16 |
HOT KEROSENE MOTOR |
(SETS) |
1/2 X 2 |
1/2 X 2 |
1/2 X 2 |
1/2 X 2 |
TANK CAPACITY |
(GAL) |
10 |
120 |
150 |
200 |
MACHINE DIMENSIONS |
(MM) |
4000x1000x1900 |
4300x1100x2000 |
4600x1200x2400 |
5300x1400x23000 |
MACHINE WEIGHT |
(KG) |
7500 |
8200 |
9500 |
13000 |
