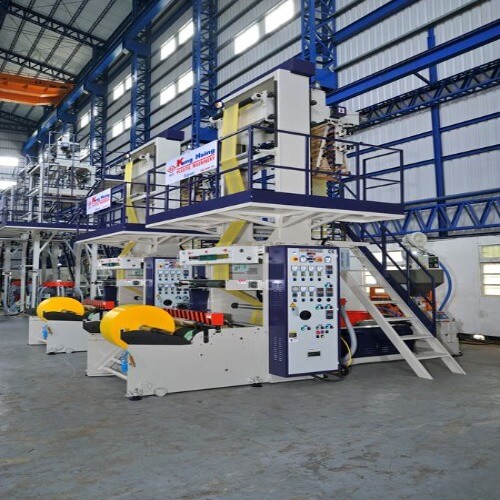

HDPE Economic Type Super High Speed Blown Film Line

Classification : Blown Film Line
Country: Taiwan
Phone: 886-5-2374466
Fax: 886-5-2376971 /886-5-2381029
Contact Person: Kun Lin Tsai
Inquiry Now

MODEL   KS-ES45
KS-ES50
FEATURE MATERIAL TO BE USED   HDPE
MAX.FILM WIDTH 600mm   700mm
THICKNESS OF FILM 0.008~0.08 m/m
MAX.EXTRUSION OUTPUT 75 kg/hr   90 kg/hr
EXTRUDER SCREW DIA.   45 mm   50 mm
SCREW L/D 30:1   30:1
SCREW/CYLINDER MATERIAL SACM-645 STEEL WITH HARD WITH NITROGEN TREATMENT
CYLINDER COOLING 1/4,1/2 HPx1   1/4,1/2 HPx1
DRIVING MOTOR 30 HP   40 HP
HEATER CAPACITY 14 kw   19 kw
DIES (mm) 60~75Ø   70~100Ø
TEMPERATURE CONTROL 6 zones   6 zones
COOLING EQUIP 3 HP   5 HP
TAKE-UP UNIT TYPE   HEIGHT ADJUSTABLE
PINCH ROLLER (mm) 165Øx650L   165Øx750L
TAKE-UP MOTOR 1/2 HP   1 HP
TAKE-UP SPEED (m/min) 12~120   12~120
SUB-PINCH ROLLER (mm) 100Øx650L   100Øx750L
GUIDE MOTOR 15 kg/cm   15 kg/cm
WINDING UNIT FW TYPE   ONE STATION AUTOMATIC SURFACE TYPE WINDER x 1
EFFECTIVE WIDTH 600 mm   700 mm
DIA. OF FILM WOUND-UP ROLL 1000 mm   1000 mm
WINDER MOTOR 1 HP   1 HP
DIMENSION (LxWxH)(M) 4.9x2.3x4.3   5x2.4X4.8
OPTIONAL DEVICE
Gravimetric Dosing Unit Oscillating Take Up Unit
IBC (Internal Bubble Cooing Computer Control System) Line Speed Synchronized with Computer Control
Thickness Measurement Two Stations Surface Winder
Thickness Controller Chiller
Automatic Hopper Loader Heat Slitting Device
Film Surface Treater EPC (Edge Position Control)
Pressure Gauge Electronic Tension Control
Rotary Die Crane for Die and Air Shaft
Automatic Gauge Control with
Automatic Cooling Ring
PIB Pump System (For LDPE/LLDPE)
*Specifications are subject to change without notice for improvement.
