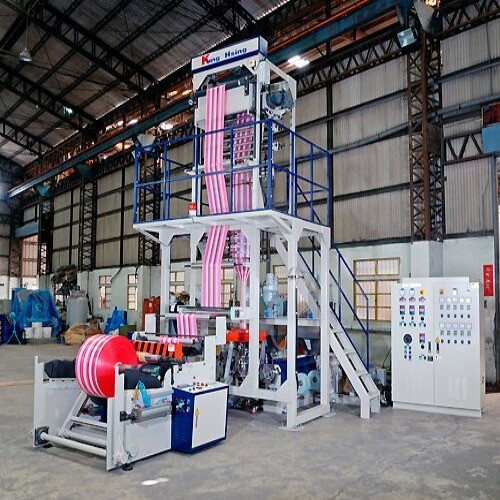

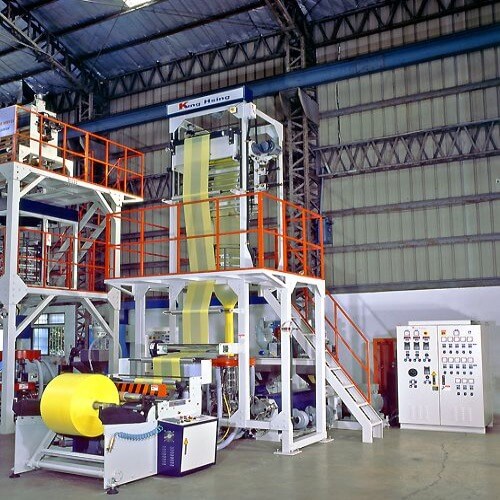

HDPE Two-Color High Speed Blown Film Line

Classification : Blown Film Line

KUNG HSING PLASTIC MACHINERY CO., LTD.

KUNG HSING PLASTIC MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-5-2374466
Fax: 886-5-2376971 /886-5-2381029
Contact Person: Kun Lin Tsai

MODEL   KS-TE45
FEATURE MATERIAL TO BE USED   HDPE
MAX. FILM WIDTH   700 mm
THICKNESS OD FILM   0.008~0.08 m/m
MAX. EXTRUSION OUTPUT   100 kg/hr
EXTRUDER SCREW DIA.   45 mm
SCREW L/D 30:1
SCREW/CYLINDER MATERIAL SACM-645 STEEL WITH HARD WITH NITROGEN TREATMENT
CYLINDER COOLING 1/2 HPx1
DRIVING MOTOR 20 HPx2
HEATER CAPACITY 30 kw
DIES (mm) 70~100 Ø
TEMPERATURE CONTROL 10 ZONES
COOLING EQUIP 5 HP
TAKE-UP UNIT TYPE   HEIGHT ADJUSTABLE
PINCH ROLLER (mm) 165Øx750L
TAKE-UP MOTOR 1 HP
TAKE-UP SPEED (m/min) 12~120
SUB-PINCH ROLLER (mm) 100Øx750L
GUIDE MOTOR 15 kg/cm
WINDING UNIT FW TYPE   ONE STATION AUTOMATIC SURFACE TYPE WINDER x 1
EFFECTIVE WIDTH 700 mm
DIA. OF FILM WOUND-UP ROLL 1000 mm
WINDER MOTOR 1 HP
DIMENSION (LxWxH)(M) 5x2.5x4.8
OPTIONAL DEVICE
Gravimetric Dosing Unit Oscillating Take Up Unit
IBC (Internal Bubble Cooing Computer Control System) Line Speed Synchronized with Computer Control
Thickness Measurement Two Stations Surface Winder
Thickness Controller Chiller
Automatic Hopper Loader Heat Slitting Device
Film Surface Treater EPC (Edge Position Control)
Pressure Gauge Electronic Tension Control
Rotary Die Crane for Die and Air Shaft
Automatic Gauge Control with
Automatic Cooling Ring
PIB Pump System (For LDPE/LLDPE)
*Specifications are subject to change without notice for improvement.
