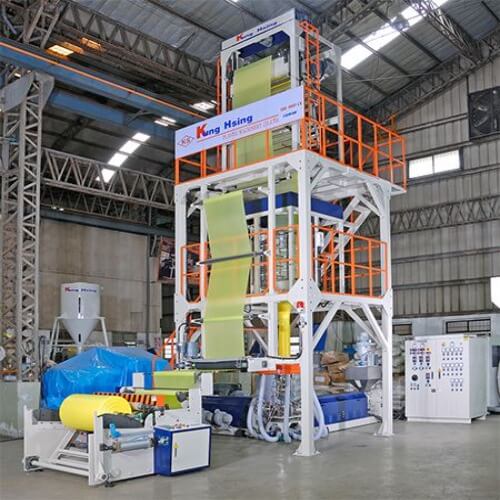

LDPE Two Layer Co-Extrusion

LDPE Two Layer Co-Extrusion
Classification : Blown Film Line
KUNG HSING PLASTIC MACHINERY CO., LTD.
KUNG HSING PLASTIC MACHINERY CO., LTD.
Country: Taiwan
Phone: 886-5-2374466
Fax: 886-5-2376971 /886-5-2381029
Contact Person: Kun Lin Tsai
Inquiry Now

MODEL   KS-CFLL50
KS-CFLL55
KS-CFLL65
KS-CFLL75
FEATURE MATERIAL TO BE USED   LDPE LLPDPE HDPE EVA PP
MAX. FILM WIDTH   800 mm   1300 mm   1600 mm   2000 mm
THICKNESS OF FILM   0.02~0.25 m/m
MAX. EXTRUSION OUTPUT   135 kg/hr   200 kg/hr   280 kg/hr   350 kg/hr
EXTRUDER SCREW DIA.   50 mm × 2   55 mm × 2   65 mm × 2   75 mm × 2
SCREW L/D   30 : 1   30 : 1   30 : 1   30 : 1
SCREW / CYLINDER MATERIAL   SACM 645 STEEL WITH HARD WITH NITROGEN TREATMENT, HARDNESS 75 OR OVER
CYLINDER COOLING   ½ HP × 4   ½ HP × 6   ½ HP × 6   ½ HP × 8
DRIVING MOTOR   25 HP × 2   40 HP × 2   50 HP × 2   75 HP × 2
HEATER CAPACITY   30 kw   35 kw   42 kw   55 kw
DIES (mm)   150/200 ø   250/300 ø   300/350 ø   400/450 ø
TEMPERATURE CONTROL   12 ZONES   14 ZONES   15 ZONES   16 ZONES
COOLING EQUIP   5 HP   7½ HP   10 HP   15 HP
TAKE-UP UNIT TYPE   FIXED TYPE / OSCILLATING TYPE
PINCH ROLLER (mm)   165 ø × 900L   165 ø × 1400L   165 ø × 1700L   215 ø × 2100L
TAKE-UP MOTOR   1 HP   2 HP   2 HP   3 HP
TAKE-UP SPEED (m/min)   6 ~ 60   6 ~ 60   6 ~ 60   6 ~ 60
SUB-PINCH ROLLER (mm)   100 ø × 900L   140 ø × 1400L   140 ø × 1700L   140 ø × 2100L
GUIDE MOTOR   30 kg/cm   50 kg/cm   50 kg/cm   50 kg/cm
WINDING UNIT FWC TYPE   ONE STATION SURFACE WINDER WITH AUTOMATIC BOBIN CHANGE
EFFECTIVE WIDTH   800 mm   1300 mm   1600 mm   2000 mm
DIA. OF FILM WOUND-UP ROLL   800 mm   800 mm   800 mm   800 mm
WINDER MOTOR   1 HP   2 HP   2 HP   3 HP
DIMENSION (L×W×H) (M)   5.5×3.3×6.0   6.5×4.1×8.0   7.5×4.6×9.0   8.5×6.0×1.0
OPTIONAL DEVICE

Gravimetric Dosing Unit Oscillating Take Up Unit
IBC (Internal Bubble Cooing Computer Control System) Line Speed Synchronized with Computer Control
Thickness Measurement Two Stations Surface Winder
Thickness Controller Chiller
Automatic Hopper Loader Heat Slitting Device
Film Surface Treater EPC (Edge Position Control)
Pressure Gauge Electronic Tension Control
Rotary Die Crane for Die and Air Shaft
Automatic Gauge Control with
Automatic Cooling Ring 		PIB Pump System (For LDPE/LLDPE)

*Specifications are subject to change without notice for improvement.
