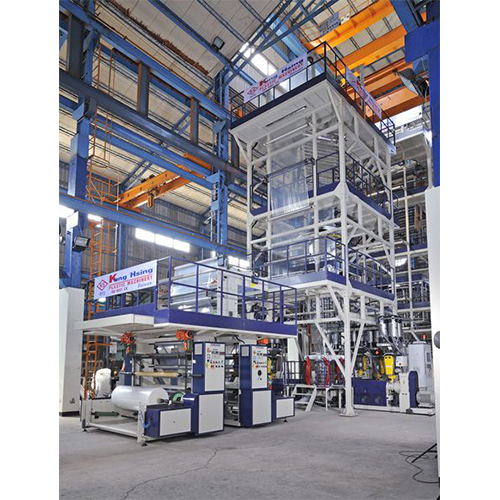

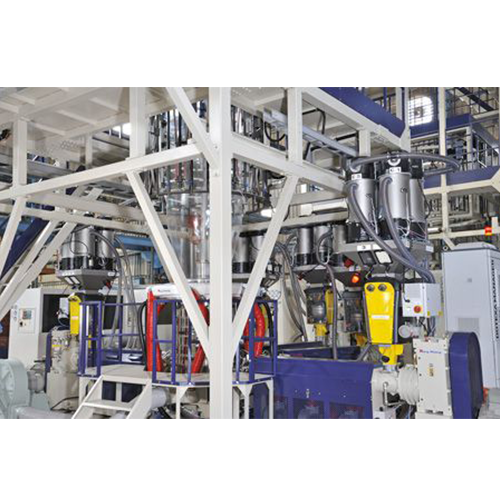

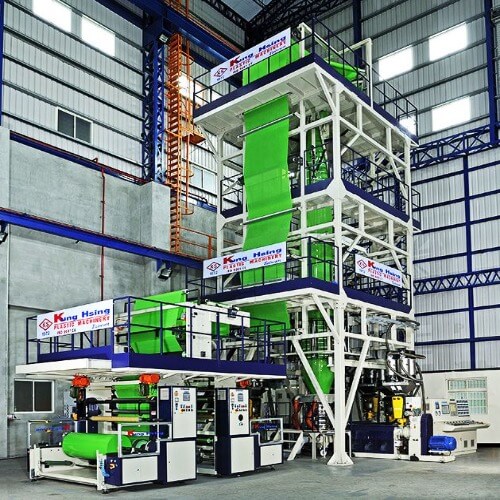

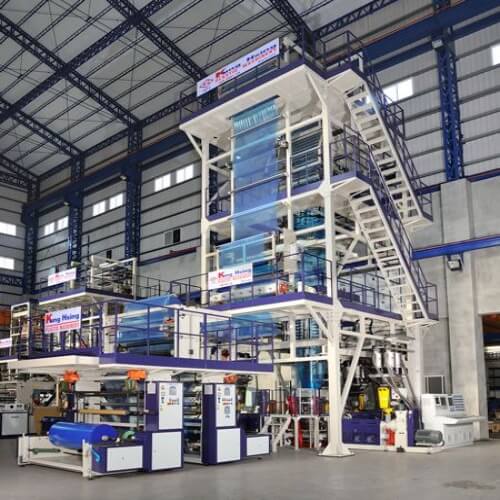

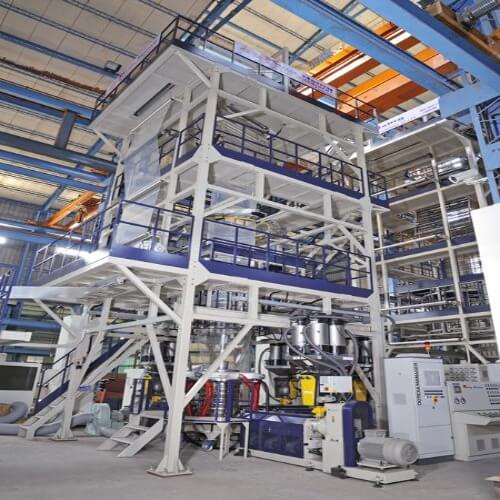

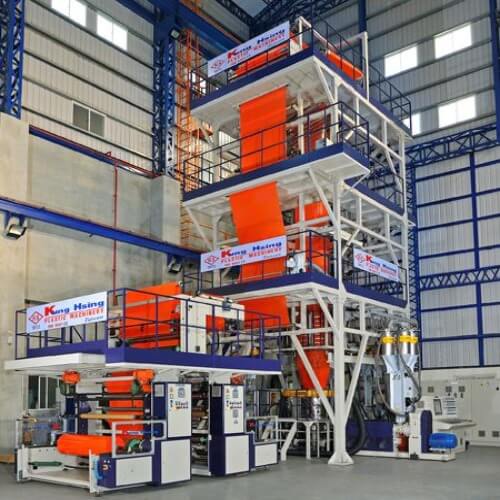

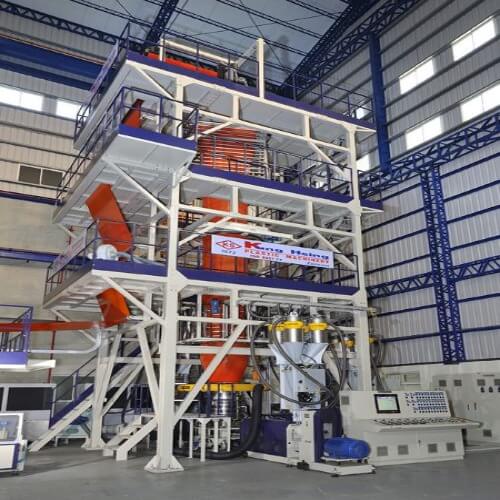

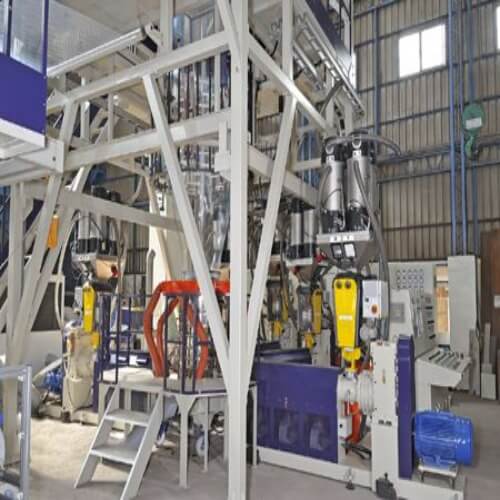

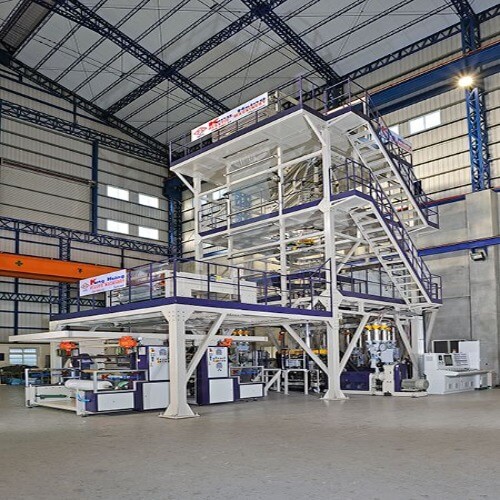

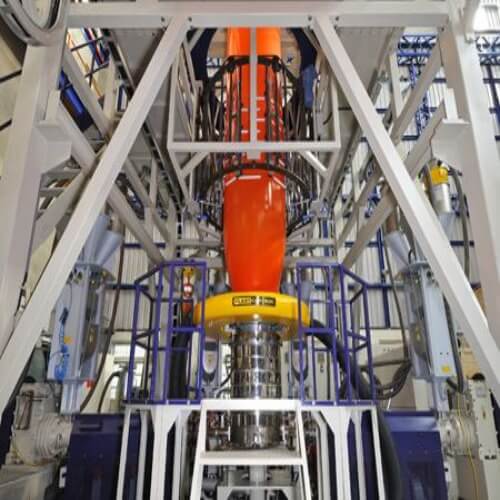

Five and Seven-Layer Co-Extrusion High Speed Blown Film Line

Country: Taiwan
Phone: 886-5-2374466
Fax: 886-5-2376971 /886-5-2381029
Contact Person: Kun Lin Tsai
Video Inquiry Now
● AUTO THICRNESS PROFILE CONTROL
(AUTO AIR RING, GERMANY MADE)
● 360 DEGREES THICKNESS PROFILE MEASUREMENT
WITH OSCILLATING RAIL (GERMANY MADE)
● GAIN IN WEIGHT DOSING UNIT (GERMANY MADE)
● IBC COMPUTER CONTROL SYSTEM (U.S.A MADE)
● HORIZONTAL OSCILLATING TAKE UP UNIT
● BACK TO BACK AUTOMATIC SURFACE TYPE WINDER
MODEL KS-ML-5-50+55+65
FEATURE MATERIAL TO BE USED LDPE LLPDPE HDPE EVA PP NYLON (CUSTOMRISED, PLEASE ADVISE MATERIAL)
MAX. FILM WIDTH 1500 mm
THICKNESS OF FILM 0.03~0.20 m/m
MAX. EXTRUSION OUTPUT 430 kg/hr
EXTRUDER SCREW DIA. 50 mm × 2
55 mm × 2
65 mm × 1
SCREW L/D 30:01:00
SCREW / CYLINDER MATERIAL SACM 645 STEEL WITH HARD WITH NITROGEN TREATMENT, HARDNESS 75 OR OVER
CYLINDER COOLING ¼ HP × 2
½ HP × 11
DRIVING MOTOR 30 HP × 2
40 HP × 2
75 HP x 1
HEATER CAPACITY 95 kw

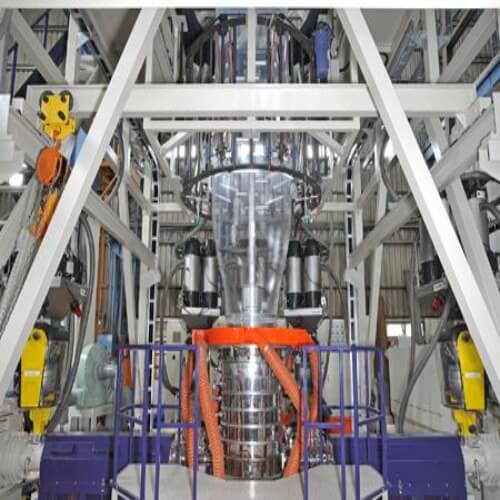

DIES (mm) 350 ø
TEMPERATURE CONTROL 29 point
COOLING EQUIP 10 HP
TAKE-UP UNIT TYPE FIXED TYPE / OSCILLATING TYPE
PINCH ROLLER (mm) 165 ø × 1600L
TAKE-UP MOTOR 2 HP A.C. MOTOR
TAKE-UP SPEED (m/min) 10 ~ 90
SUB-PINCH ROLLER (mm) 140 ø × 1600L
GUIDE MOTOR 50 kg/cm

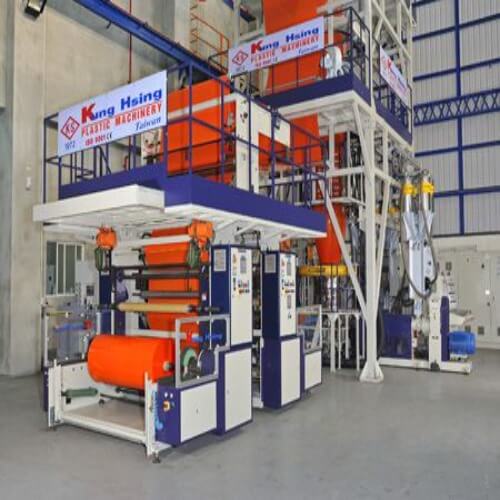

WINDING UNIT FWC TYPE ONE STATION SURFACE WINDER WITH AUTOMATIC BOBBIN CHANGE
EFFECTIVE WIDTH 1500 mm
DIA. OF FILM WOUND-UP ROLL 800 mm
WINDER MOTOR 2 HP A.C. MOTOR
DIMENSION (L×W×H) (M) 14×10×12
OPTIONAL DEVICE Gravimetric Dosing Unit Oscillating Take Up Unit
IBC (Internal Bubble Cooing Computer Control System) Line Speed Synchronized with Computer Control
Thickness Measurement Two Stations Surface Winder
Thickness Controller Chiller
Automatic Hopper Loader Heat Slitting Device
Film Surface Treater EPC (Edge Position Control)
Pressure Gauge Electronic Tension Control
Rotary Die Crane for Die and Air Shaft
Automatic Gauge Control with Automatic Cooling Ring PIB Pump System (For LDPE/LLDPE)

*Specifications are subject to change without notice for improvement.
  5-7 muti-layer co-extrusion will be customerised according to the material to be used. The film specification that going to produce, and application of the film.
