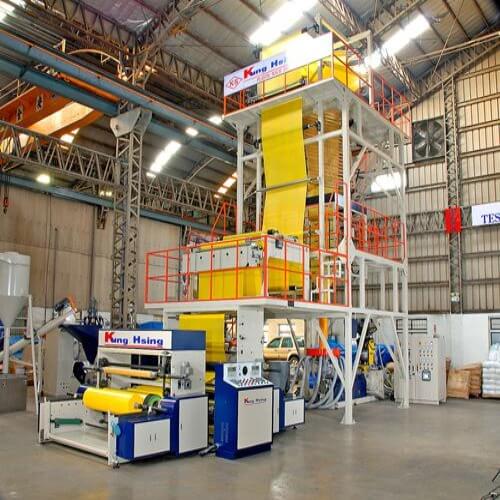

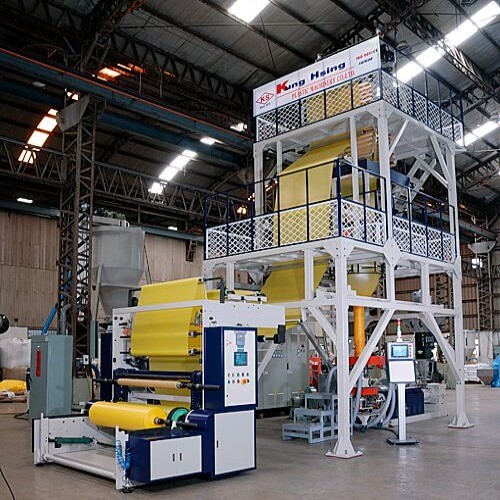

HDPE SINGLE HEAD TYPE HIGH SPEED BLOWN FILM LINE FOR JUMBO BAG

Classification : Blown Film Line

KUNG HSING PLASTIC MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-5-2374466

Fax: 886-5-2376971 /886-5-2381029

Contact Person: Kun Lin Tsai

Video Inquiry Now

MODEL		KS-FE65B	KS-FE80B
FEATURE	MATERIAL TO BE USED	HDPE
	MAX.FILM WIDTH	1200mm	1600mm
	THICKNESS OF FILM	0.008~0.08 m/m
	MAX.EXTRUSION OUTPUT	165 kg/hr	250 kg/hr
EXTRUDER	SCREW DIA.	65 mm	80 mm
	SCREW L/D	30:01:00	30:01:00
	SCREW/CYLINDER MATERIAL	SACM-645 STEEL WITH HARD WITH NITROGEN TREATMENT
	CYLINDER COOLING	1/2 HPx3	1/2 HPx4
	DRIVING MOTOR	75 HP	100 HP
	HEATER CAPACITY	30 kw	40 kw
	DIES (mm)	150~175Ø	200~230Ø
	TEMPERATURE CONTROL	7 points	8 points
	COOLING EQUIP	7 1/2 HP	10 HP
TAKE-UP UNIT	TYPE	FIXED TYPE
	PINCH ROLLER (mm)	165Øx1300L	215Øx1700L
	TAKE-UP MOTOR	2 HP	3 HP
	TAKE-UP SPEED (m/min)	12~120	12~120
	SUB-PINCH ROLLER (mm)	140Øx1300L	165Øx1700L
	GUIDE MOTOR	30 kg/cm	50 kg/cm
WINDING UNIT	FW TYPE	ONE STATION AUTOMATIC SURFACE TYPE WINDER
	EFFECTIVE WIDTH	1200 mm	1600 mm
	DIA. OF FILM WOUND-UP ROLL	1000 mm	1000 mm
	WINDER MOTOR	2 HP	3 HP
	DIMENSION (LxWxH)(M)	6.3x3.2x6.5	7.5x4X8
OPTIONAL DEVICE	Gravimetric Dosing Unit	Oscillating Take Up Unit
	IBC (Internal Bubble Cooing Computer Control System)	Line Speed Synchronized with Computer Control
	Thickness Measurement	Two Stations Surface Winder
	Thickness Controller	Chiller
	Automatic Hopper Loader	Heat Slitting Device
	Film Surface Treater	EPC (Edge Position Control)
	Pressure Gauge	Electronic Tension Control
	Rotary Die	Crane for Die and Air Shaft
	Automatic Gauge Control with Automatic Cooling Ring	PIB Pump System (For LDPE/LLDPE)
