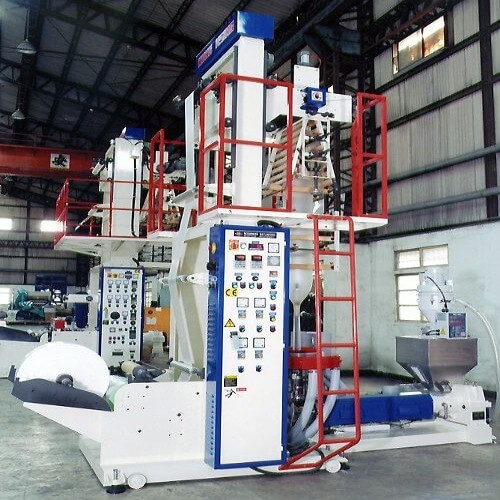

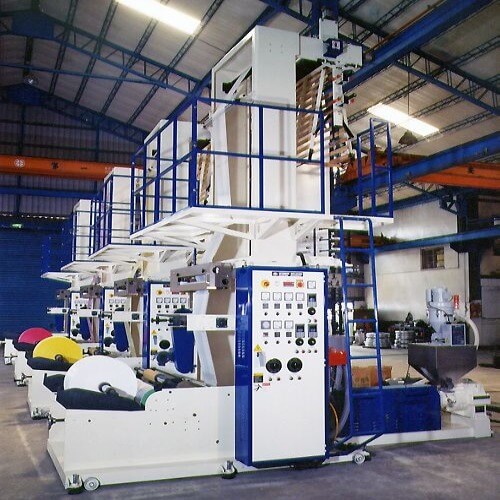

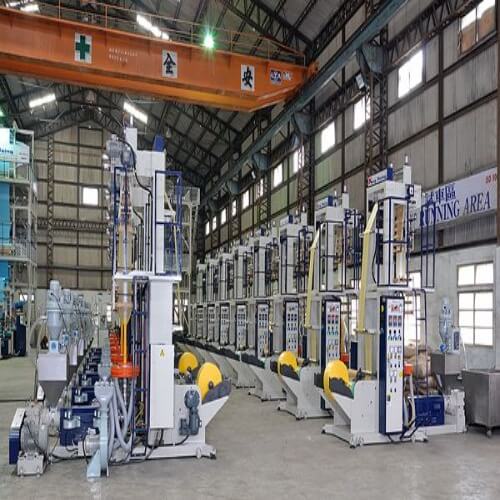

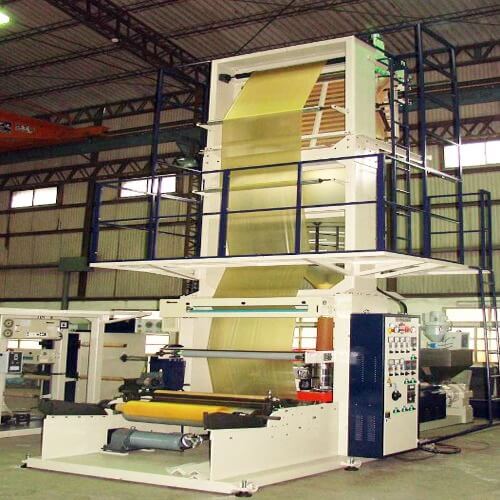

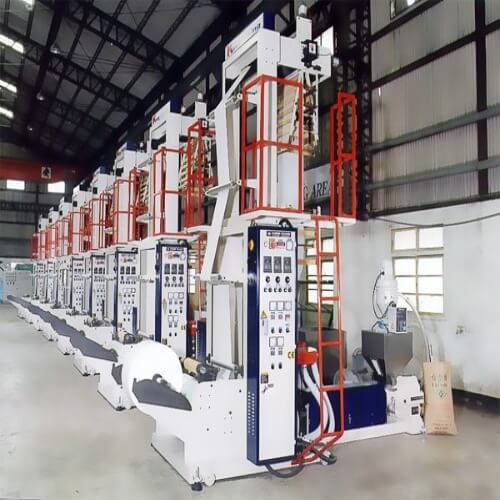

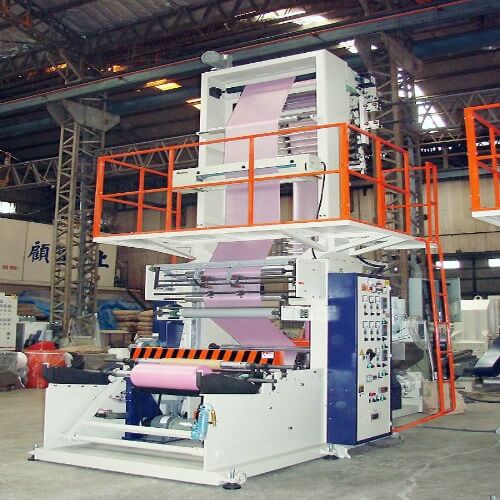

Economical E-Type HDPE/LDPE Single Head High Speed Blown Film Line

Classification : Blown Film Line

KUNG HSING PLASTIC MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-5-2374466

Fax: 886-5-2376971 /886-5-2381029

Contact Person: Kun Lin Tsai

Inquiry Now

MODEL		KS-E40	KS-E45	KS-E50	KS-E55	KS-E65
FEATURE	LAYFLAT WIDTH	350 m/m	500 m/m	600 m/m	700 m/m	1000 m/m
	THICKNESS OF FILM	0.005~0.08 m/m
	MAX. EXTRUSION OUTPUT	40 kg/hr	50 kg/hr	65 kg/hr	90 kg/hr	135 kg/hr
EXTRUDER	SCREW DIA.	40 m/m ø	45 m/m ø	50 m/m ø	55 m/m ø	65 m/m ø
	SCREW L/D	30 : 1	30 : 1	30 : 1	30 : 1	30 : 1
	SCREW CYLINDER MATERIAL	SACM 645 STEEL WITH HARD WITH NITROGEN TREATMENT
	CYLINDER COOLING BLOWER	¼ HP × 2	¼ HP × 2	¼ HP × 1 ½ HP × 1	½ HP × 3	½ HP × 3
	DRIVING MOTOR	15 HP	20 HP	25 HP	40 HP	50 HP
	HEATER CAPACITY	10 kw	14 kw	18 kw	20 kw	25 kw
	DIES	35/50 mm ø	60/75 mm ø	70/100 mm ø	90/120 mm ø	120/150 mm ø
CONTROL PANEL	TEMPERATURE CONTROL	4 points	4 points	6 points	7 points	7 points
COOLING EQUIP	BLOWER	1 HP	3 HP	5 HP	5 HP	7½ HP
TAKE-UP UNIT	TYPE	FIXED TYPE
	PINCH ROLLER (m/m)	165 ø × 400 L	165 ø × 550 L	165 ø × 650 L	165 ø × 750 L	165 ø × 1100 L
	TAKE-UP MOTOR	½ HP	1 HP	1 HP	2 HP	2 HP
	TAKE-UP SPEED (m/min)	12 ~ 120	12 ~ 120	12 ~ 120	12 ~ 120	12 ~ 120
	SUB-PINCH ROLLER (m/m)	100 ø × 400 L	100 ø × 550 L	100 ø × 650 L	100 ø × 750 L	100 ø × 1100 L
	GUIDE MOTOR	15 kg/cm × 1	15 kg/cm × 1	20 kg/cm × 1	20 kg/cm × 1	20 kg/cm × 1
WINDING UNIT	TYPE	ATTACHED TYPE, SURFACE, MANUAL TYPE BOBBIN CHANGE
	DIA. OF FILM WOUND-UP ROLL	800 mm	800 mm	800 mm	800 mm	800 mm
	EFFECTIVE WIDTH (m/m)	350	500	600	700	1000
	WINDER MOTOR	½ HP	1 HP	1 HP	2 HP	2 HP
SHIPPING DATA	DIMENSION (L×W×H) (M)	3.8×2.2×3.5	4.0×2.3×4.0	5.0×2.5×4.2	5.3×2.7×4.7	5.5×3.2×6.3
