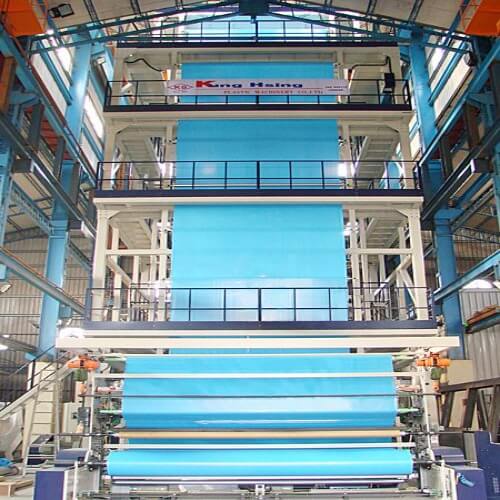

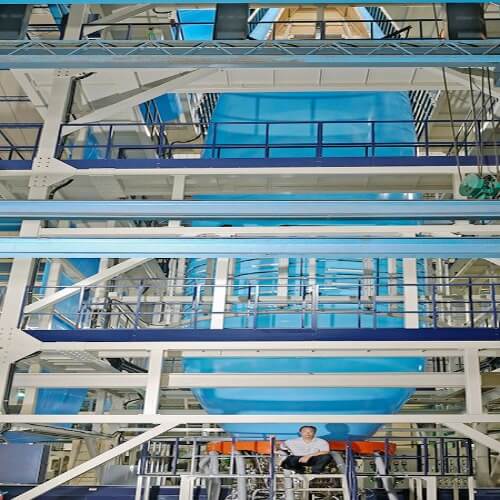

Three-Layer Co-Extrusion For Jumbo Bag (Industrial And Agricultural Use)

Classification : Blown Film Line

Applications: Agriculture Agricultural Films

KUNG HSING PLASTIC MACHINERY CO., LTD.

Country: Taiwan

Phone: 886-5-2374466

Fax: 886-5-2376971 /886-5-2381029

Contact Person: Kun Lin Tsai

Video Inquiry Now

MODEL		KS-CFLL100+120T	KS-CFLL100+135T
FEATURE	MATERIAL TO BE USED	LDPE LLPDPE HDPE EVA PP NYLON (CUSTOMRISED, PLEASE ADVISE MATERIAL)
	MAX. FILM WIDTH	5000 mm	6000 mm
	THICKNESS OF FILM	0.02~0.25 m/m
	MAX. EXTRUSION OUTPUT	1000 kg/hr	1100 kg/hr
EXTRUDER	SCREW DIA.	100 mm × 2	100 mm × 2
	SCREW DIA.	120 mm × 1	135 mm × 1
	SCREW L/D	30 : 1	30 : 1
	SCREW / CYLINDER MATERIAL	SACM 645 STEEL WITH HARD WITH NITROGEN TREATMENT, HARDNESS 75 OR OVER
	CYLINDER COOLING	½ HP × 14	½ HP × 16
	DRIVING MOTOR	150 HP × 2 200 HP × 1	150 HP × 2 250 HP × 1
	DRIVING MOTOR	150 HP × 2 200 HP × 1	150 HP × 2 250 HP × 1
	HEATER CAPACITY	250 kw	300 kw
	DIES (mm)	1200 ø	1350 ø
	TEMPERATURE CONTROL	27 point	30 point
	COOLING EQUIP	20 HP	25 HP
TAKE-UP UNIT	TYPE	FIXED TYPE / OSCILLATING TYPE
	PINCH ROLLER (mm)	270 ø × 3000L	270 ø × 3500L
	TAKE-UP MOTOR	5 HP	7½ HP
	TAKE-UP SPEED (m/min)	6 ~ 60	6 ~ 60
	SUB-PINCH ROLLER (mm)	165 ø × 3000L	165 ø × 3500L
	GUIDE MOTOR	75 kg/cm	75 kg/cm
WINDING UNIT	FWC TYPE	ONE STATION SURFACE WINDER WITH AUTOMATIC BOBBIN CHANGE
	EFFECTIVE WIDTH	2800 mm	3300 mm
	DIA. OF FILM WOUND-UP ROLL	800 mm	800 mm
	WINDER MOTOR	5 HP	7½ HP
	DIMENSION (L×W×H) (M)	14×12×16	16×14×20
OPTIONAL DEVICE	Gravimetric Dosing Unit	Oscillating Take Up Unit
	IBC (Internal Bubble Cooing Computer Control System)	Line Speed Synchronized with Computer Control
	Thickness Measurement	Two Stations Surface Winder
	Thickness Controller	Chiller
	Automatic Hopper Loader	Heat Slitting Device
	Film Surface Treater	EPC (Edge Position Control)
	Pressure Gauge	Electronic Tension Control
	Rotary Die	Crane for Die and Air Shaft
	Automatic Gauge Control with Automatic Cooling Ring	PIB Pump System (For LDPE/LLDPE)

*Specifications are subject to change without notice for improvement.
5-7 muti-layer co-extrusion will be customerised according to the material to be used. The film specification that going to produce, and application of the film.
