Classification : Stationery Bags
Country: Taiwan
Phone: 886-3-3490269
Fax: 886-3-3490220
Contact Person: Nicole Hung
Introduction

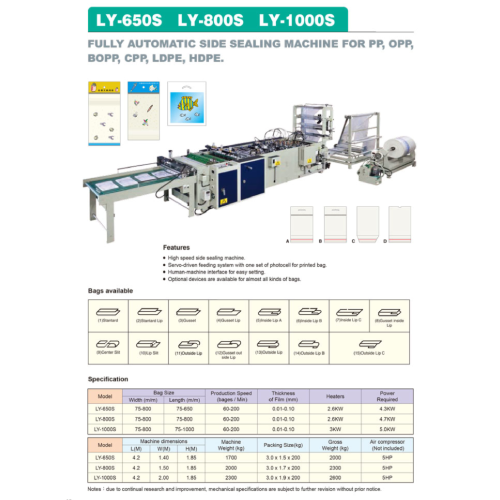

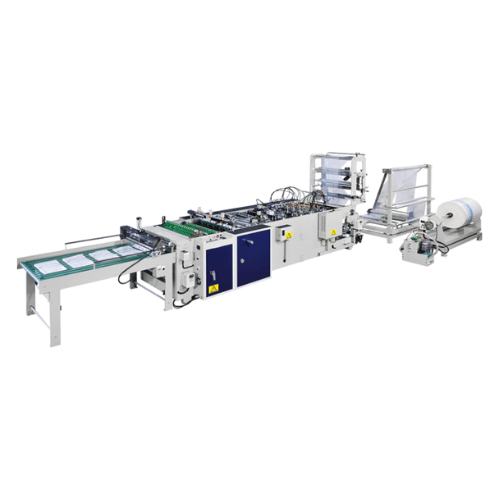

- LY-650S/800S/1000S series are basic high-speed side sealing machine. It equips with servo-driven feeding system and human-machine interface for customers easy and friendly operation. It can put on many other options for customers having flexible production.
Features
- High speed side sealing machine.
- Servo-driven feeding system with one set of photocell for printed bag.
- Human-machine interface for easy setting.
- Optional devices are available for almost all kinds of bags.
|
Model
|
Bag Size | Production Speed | Thickness of Film (mm) | Heaters | Power Required | |
| Width (mm) | Length (mm) | (bags / Min) | ||||
| LY-650S | 75-800 | 75-650 | 60-200 | 0.01-0.10 | 2.6KW | 4.3KW |
| LY-800S | 75-800 | 75-800 | 60-200 | 0.01-0.10 | 2.6KW | 4.7KW |
| LY-1000S | 75-800 | 75-1000 | 60-200 | 0.01-0.10 | 3KW | 5.0KW |
|
Model
|
Machine dimensions | Machine | Packing Size(kg) | Gross Weight (kg) | Air compressor | ||
| L(M) | W(M) | H(M) | Weight (kg) | (Not included) | |||
| LY-650S | 4.2 | 1.4 | 1.85 | 1700 | 3.0 x 1.5 x 200 | 2000 | 5HP |
| LY-800S | 4.2 | 1.5 | 1.85 | 2000 | 3.0 x 1.7 x 200 | 2300 | 5HP |
| LY-1000S | 4.2 | 2 | 1.85 | 2300 | 3.0 x 1.9 x 200 | 2600 | 5HP |
Notes：due to continual research and improvement, mechanical specifications are subject to further revision without prior notice.
