Classification : Diaper - Hygiene - Tissue Bags
Country: Taiwan
Phone: 886-3-3490269
Fax: 886-3-3490220
Contact Person: Nicole Hung

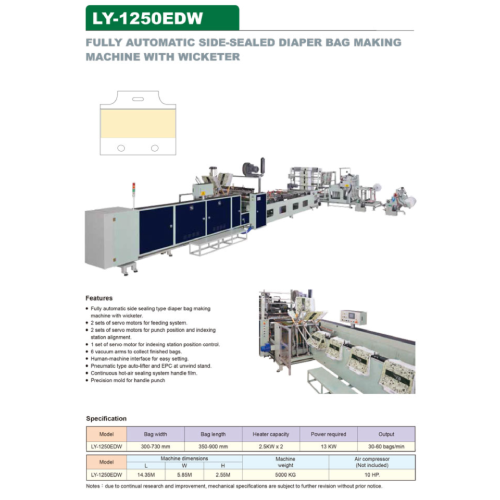

Introduction

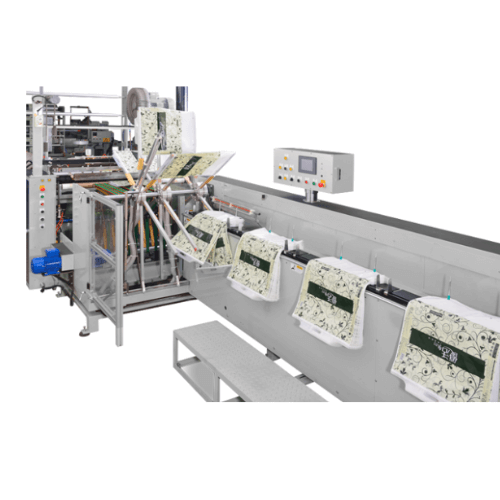

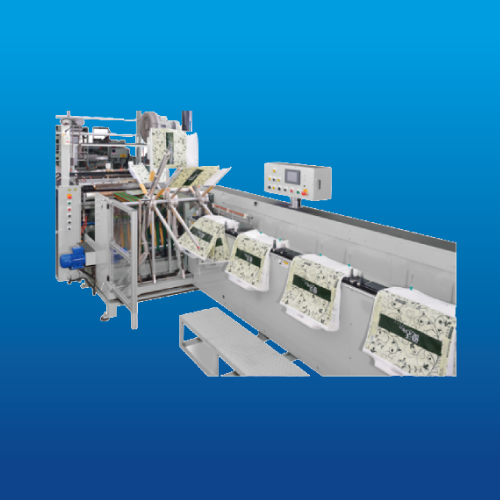

- LY-1250EDW is a specialized European-style diaper bag making machine. It equips with 5 sets of servo motors to allow efficient, stable and precise production. 6-vacuum arms collecting system significantly save labor work and increase production efficiency.
Features
- Fully automatic side sealing type diaper bag making machine with wicketer.
- 2 sets of servo motors for feeding system.
- 2 sets of servo motors for punch position and indexing station alignment.
- 1 set of servo motor for indexing station position control.
- 6 or 8 vacuum arms depends on size of bag.
- Human-machine interface for easy setting.
- Pneumatic type auto-lifter and EPC at unwind stand.
- Continuous hot-air sealing system handle film.
- Precision mold for handle punch.
- Precision mold for handle punch.
| Model | Bag width (mm) |
Bag length (mm) |
Heater capacity | Power required | Output |
|---|---|---|---|---|---|
| LY-1250EDW | 300-730 mm | 350-900 mm | 2.5KW x 2 | 13 KW | 30-60 bags/min |
| Model | Machine dimensions | Machine weight | Air compressor (Not included) |
||
|---|---|---|---|---|---|
| L(m) | W(m) | H(m) | |||
| LY-1250EDW | 14.35 | 5.85 | 2.55 | 5000 KG | 10 HP |
Related Products / LIAN YOU MACHINERY INDUSTRY CO., LTD.
Fully Automatic Bottom-Sealed Loop Handle Bag Making Machine With 3 Servo Motors LY-800BL
High Speed Side Sealing Machine with Wicketer LY-800HW
Fully Automatic Loop Handle Die Cut Handle Draw Tape & Patch Handle Bags Making Machine LY-800LDDP
High Speed Loop Handle Bag Maker With Continuous Sealers LY-800HLC

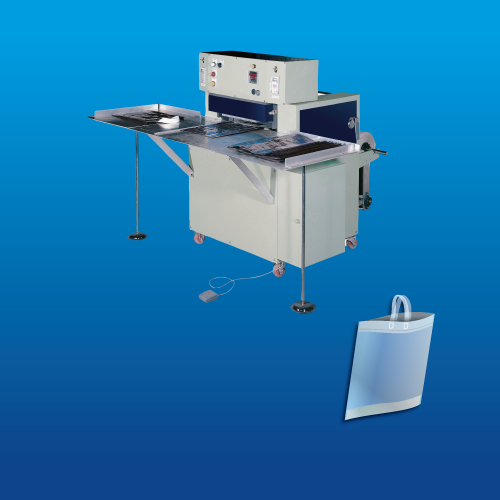

Semi-Automatic Loop Handle Bag Making Machine LY-25LH
