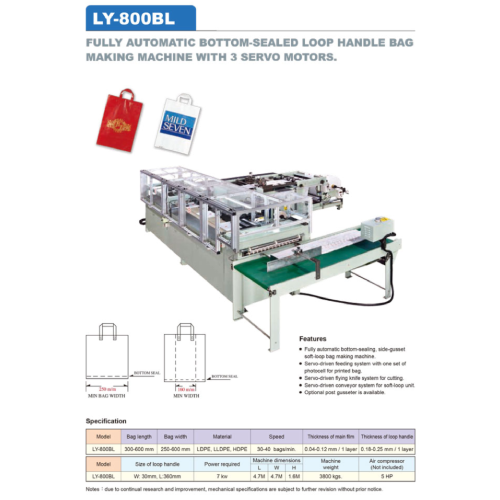

Fully Automatic Bottom-Sealed Loop Handle Bag Making Machine With 3 Servo Motors LY-800BL

Fully Automatic Bottom-Sealed Loop Handle Bag Making Machine With 3 Servo Motors LY-800BL
Fully automatic bottom-sealed loop handle bag making machine with 3 servo motors LY-800BL Application 1
Classification : Shopping Bags
Applications: Packaging Shopping Bags
LIAN YOU MACHINERY INDUSTRY CO., LTD.
LIAN YOU MACHINERY INDUSTRY CO., LTD.
Country: Taiwan
Phone: 886-3-3490269
Fax: 886-3-3490220
Contact Person: Nicole Hung
Video Inquiry Now
Introduction
  • LY-800BL is a fully automatic bottom-sealing type soft-loop bag making machine. It adopts 3 sets of servo motors for film feeding, cutting and bag conveying to allow smooth and stable production.
Features
  • Fully automatic bottom-sealing, side-gusset soft-loop bag making machine.
  • Servo-driven feeding system with one set of photocell for printed bag.
  • Servo-driven flying knife system for cutting.
  • Servo-driven conveyor system for soft-loop unit.
  • Optional post gusseter is available.
Model Bag length Bag width Material Speed Thickness of film Thickness of loop handle
LY-800BL 300-600 mm 250-600 mm LDPE, LLDPE, HDPE 30-40 bags/min. 0.04-0.12 mm / 1 layer 0.18-0.25 mm / 1 layer

Model Size of loop handle Power required Machine dimensions Machine weight Air compressor
L W H (Not included)
LY-800BL W: 30mm
L: 360mm		 7 kw 4.7M 4.7M 1.6M 3800 kg 5 HP

Notes：due to continual research and improvement, mechanical specifications are subject to further revision without prior notice.
