High Speed Side Sealing Machine with Wicketer LY-800HW

High Speed Side Sealing Machine with Wicketer LY-800HW
Classification : Stationery Bags
Applications: Packaging Stationery Bags
LIAN YOU MACHINERY INDUSTRY CO., LTD.
LIAN YOU MACHINERY INDUSTRY CO., LTD.
Country: Taiwan
Phone: 886-3-3490269
Fax: 886-3-3490220
Contact Person: Nicole Hung
Blog Video Inquiry Now

Introduction

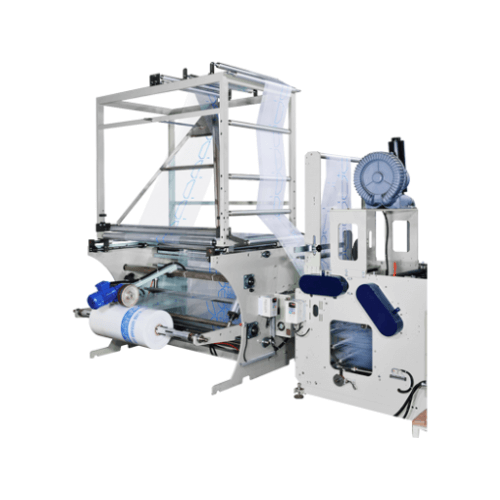

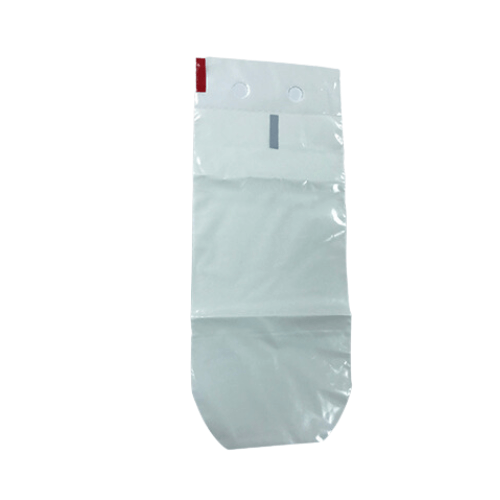

  • LY-800HW is high speed wicketer machine. It equips with 5 sets of servo motors to allow fast, stable and precise production. Round bottom sealing unit is optional for chicken bag or bakery bag.

Features

  • High speed wicket bag making machine.

  • 2 sets of servo motors for feeding system.

  • 2 sets of servo motors for punch position and indexing station alignment.

  • 1 set of servo motor for indexing station position control.

  • 6 or 8 vacuum arms depends on size of bag.

  • Human-machine interface for easy setting.

  • super heavy duty unwind stand with hydraulic auto-lifter and electric type EPC.

  • Triangle folding device.

Model
 Bag length Bag width Material Speed Thickness of film Heater capacity
LY-800HW 300-650 mm 150-330 mm LLDPE LDPE PP 200-300 bags/min 0.02-0.07 mm 3KW x 2

Model
 Power required Machine dimensions Machine weight Air compressor PP sealing knife
L W H (Not included) (Not included)
LY-800HW 10 KW 8.5M 2.3M 3M 2500 KG 10 HP Option

Notes : due to continual research and improvement, mechanical specifications are subject to further revision without prior notice.

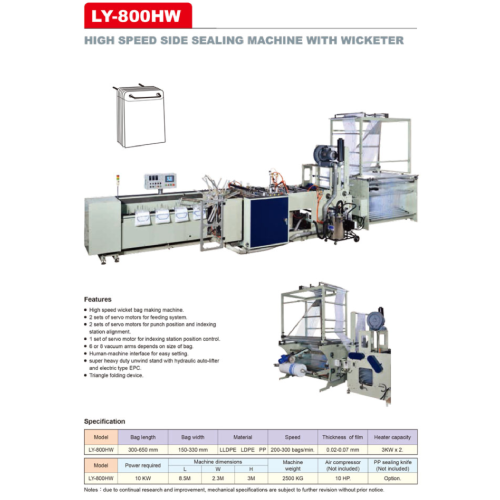

LY-800HW

LY-800HW
