Classification : Heavy Duty Bags
Country: Taiwan
Phone: 886-3-3490269
Fax: 886-3-3490220
Contact Person: Nicole Hung
Introduction

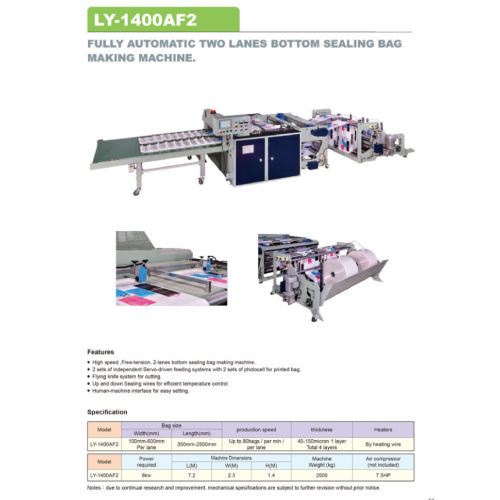

- LY-1400AF2 is a fully automatic, two independent lanes, free-tension, flying-knife bottom sealing bag making machine. It equips with two sets of servo motors working with two photocells for two-lane production with different settings. LY-1000AF and LY-1400AF for one lane production are available.
Features
- High speed ,Free-tension, 2-lanes bottom sealing bag making machine.
- 2 sets of independent Servo-driven feeding systems with 2 sets of photocell for printed bag.
- Flying knife system for cutting.
- Up and down Sealing wires for efficient temperature control.
- Human-machine interface for easy setting.
| Model | Bag Size | Production speed | Thickness | Heaters | ||
|---|---|---|---|---|---|---|
| Width (mm) | Length (mm) | |||||
| LY-1400AF2 | 100-600 Per lane | 350-2500 | Up to 80bags / per min / per lane | 40-150micron 1 layer
|
By heating wire | |
| Model | Power Required | Machine Dimensions | Machine Weight (kg) | Air compressor (not included) |
||
|---|---|---|---|---|---|---|
| L(M) | W(M) | H(M) | ||||
| LY-1400AF2 | 8kw | 7.2 | 2.3 | 1.4 | 2500 | 7.5HP |
Notes：due to continual research and improvement, mechanical specifications are subject to further revision without prior notice.
