Classification : Shopping Bags
Country: Taiwan
Phone: 886-3-3490269
Fax: 886-3-3490220
Contact Person: Nicole Hung
Introduction

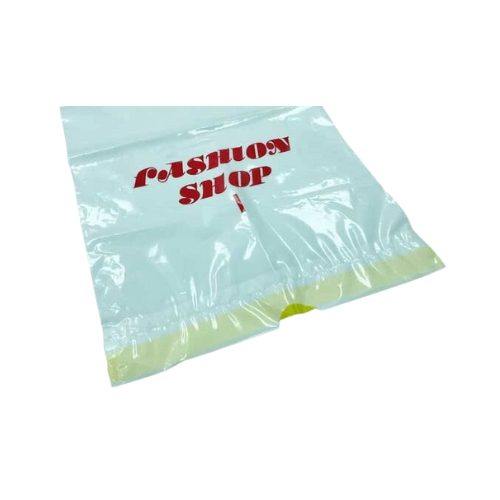

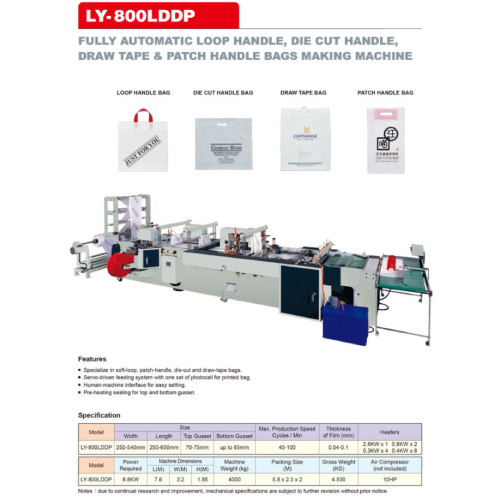

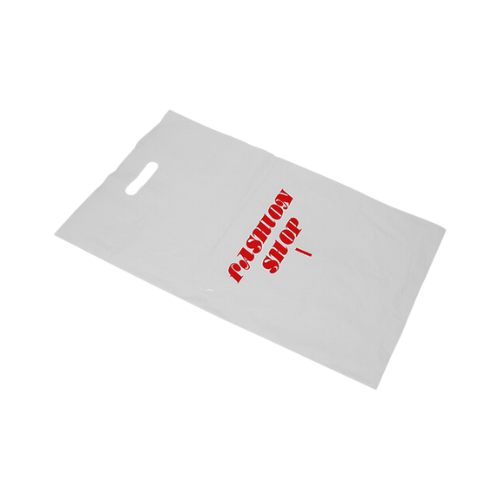

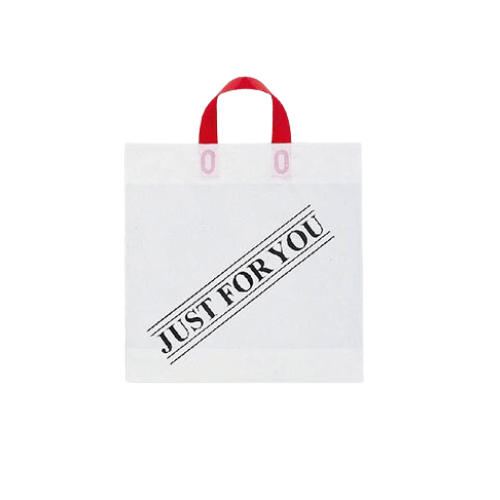

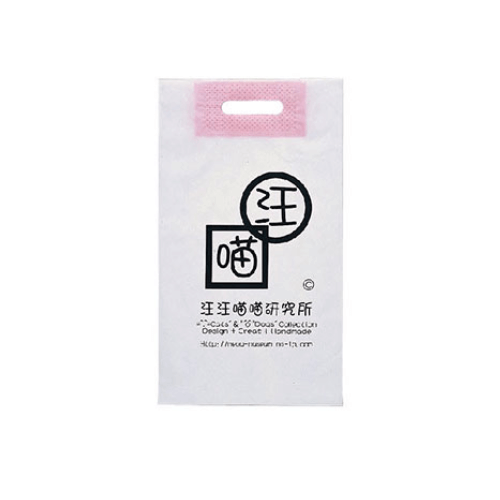

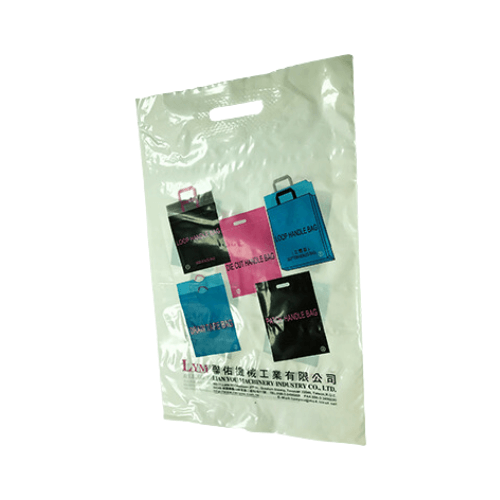

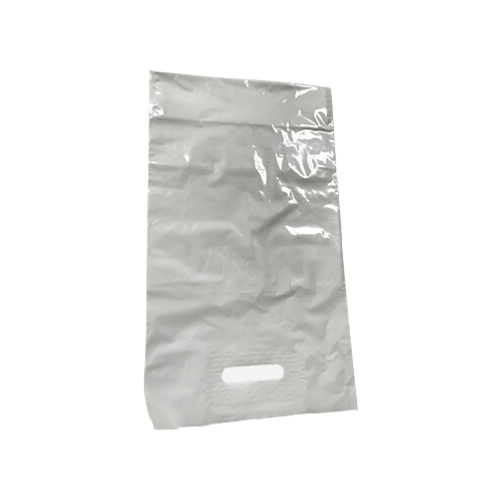

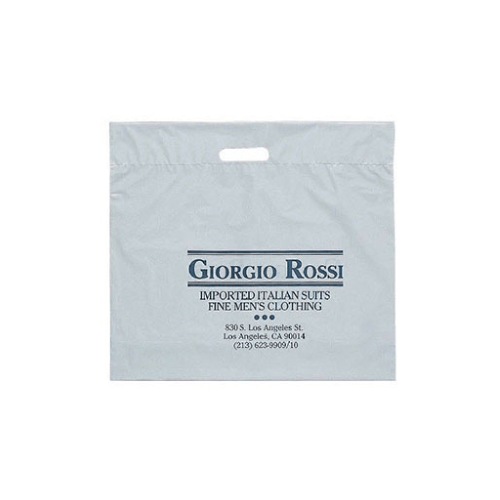

- LY-800LDDP is a high-speed, multi-function machine which can produce 4 kinds of bags: soft-loop bag, die-cut bag, draw-tape bag and patch-handle bag.
- The unique control of servo-feeding system allowing customer having stable production and the human-machine interface lets customers never worry about operation.
Features
- Specialize in soft-loop, patch-handle, die-cut and draw-tape bags.
- Servo-driven feeding system with one set of photocell for printed bag.
- Human-machine interface for easy setting.
- Pre-heating sealing for top and bottom gusset.
| Model | Size | Max. Production Speed | Thickness of Film (mm) | Heaters | |||
| Width | Length | Top Gusset | Bottom Gusset | Cycles / Min | |||
| LY-800LDDP | 250-540mm | 250-650mm | 70-75mm | up to 85mm | 40-100 | 0.04-0.1 | 2.6KW x 1 0.8KW x 2 0.3KW x 4 0.4KW x 8 |
| Model | Power Required | Machine Dimensions | Machine Weight (kg) | Packing Size (M) | Gross Weight (KG) | Air Compressor (not included) |
||
|---|---|---|---|---|---|---|---|---|
| L(M) | W(M) | H(M) | ||||||
| LY-800LDDP | 8.8KW | 7.6 | 3.2 | 1.85 | 4000 | 5.8 x 2.3 x 2 | 4500 | 10HP |
Notes：due to continual research and improvement, mechanical specifications are subject to further revision without prior notice.
