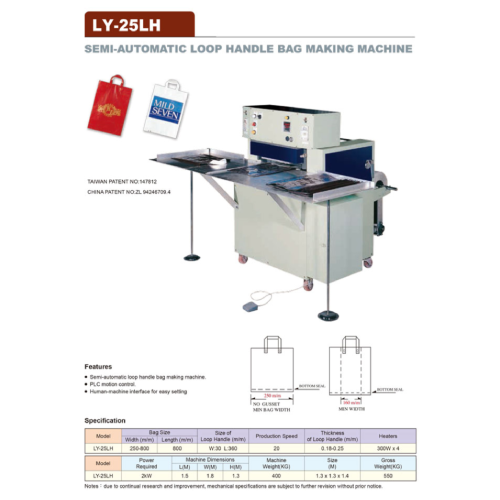

Semi-Automatic Loop Handle Bag Making Machine LY-25LH

Classification : Shopping Bags
Applications: Packaging Shopping Bags
Country: Taiwan
Phone: 886-3-3490269
Fax: 886-3-3490220
Contact Person: Nicole Hung
Inquiry Now
  • Semi-automatic loop handle bag making machine.
  • PLC motion control.
  • Human-machine interface for easy setting.
Model Bag Size Size of Loop Handle (mm) Production Speed Thickness of Loop Handle (mm) Heaters
Width (mm) Length (mm)
LY-25LH 250-800 800 W:30 L:360 20 0.18-0.25 300W x 4


Model Power Required Machine Dimensions Machine Weight (kg) Size (M) Gross Weight (KG)
L (M) W (M) H (M)
LY-25LH 2KW 1.5 1.8 1.3 400 1.3 x 1.3 x 1.4 550

Notes:due to continual research and improvement, mechanical specifications are subject to further revision without prior notice.
