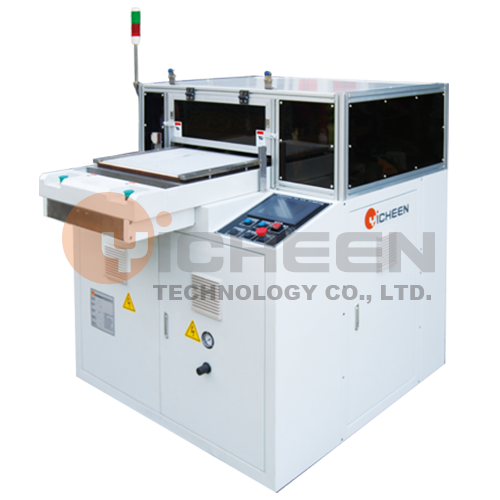

High Precision Die Cutting Machine with CCD Auto Position System

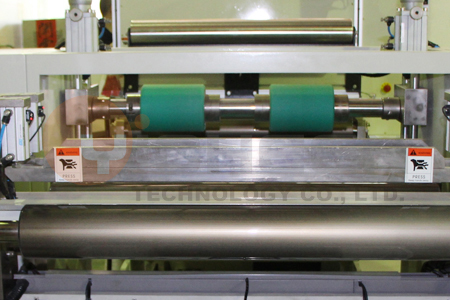

New following material connection platen

Classification : Die Cutting

Applications: Others Brightening Diffusion Films

YICHEEN TECHNOLOGY CO., LTD.

Country: Taiwan

Phone: 886-6-3562788 (21)

Fax: 886-6-3562777

Contact Person: Peggy

Inquiry Now

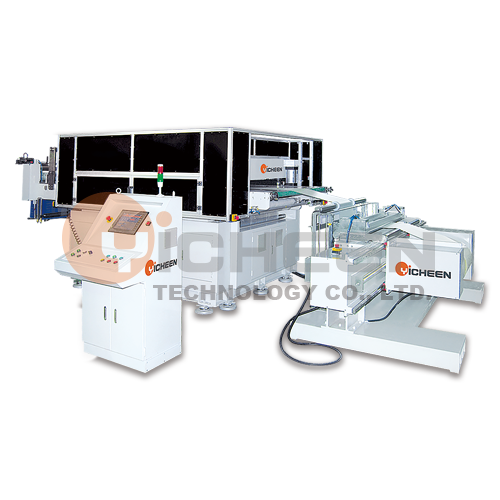

Max. cutting square is 1500x1500mm special for punching material used in large LCD panel. The machine cutting capability can be reached 80 times/per minute in continuously die cutting running, which the production capability is upgrade 2.5 times than the traditional hydraulic machine.
PLC computer touch-panel screen control system – clear & easy in operation.
Full Servo drive type, high speed die cutting, Full die cutting and half die cutting in process.
Equipped with high precision mold high fine adjustment control, Four-columns can be micro-adjusted independently by computer setting parameter, to save time and to raise the production rate.
Precision die cut position matching; save time & accurate in die cut mold replacement. Die mold less worn, Long lifetime in use. Also, Optional equipped with knife mold rotative mechanism, it makes the knife mold replaced convenient.
The knife mold board is available to be replaced in any size in large die cutting machine.
Equipped with specific transmission mechanism, while the knife mold reaching cutting BDC, it will lower down the cutting speed and make the cutting working staple. No burr or No press indentation occurred on finished product, Makes high yield rate of the production.
Equipped with safety shelf and safety sensor on each size of machine in order to avoid any dangers while operation.
Non-hydraulic design, no pollution, low vibration and low noise, to save more than 30% of energy loss comparing with traditional hydraulic machine, best for using in dustless room.

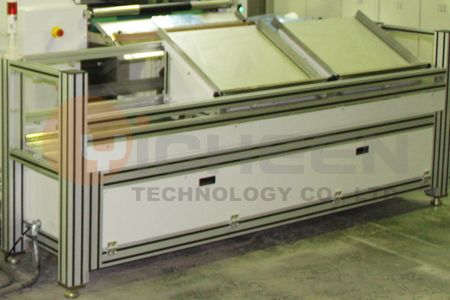

Optional mechanisms: Rewind stacking system, Unwind system (shelf system or shelfless system).
Valuable, full-featured equipment, to improve plant ROI.

Model	EDR-0303	EDR-0505	EDR-0808
Cutting force	1 tons Max	5 tons Max	5 tons Max
Cutting size	W250xL(D)250mm	W450xL(D)450mm	W750xL(D)750mm
Material thickness	0.05~0.3mm	0.05~0.3mm	0.05~0.3mm
Feeding precision	+/-0.10mm	+/-0.10mm	+/-0.10mm
Punching level precision	+/-0.025mm	+/-0.025mm	+/-0.025mm
Cutting speed	80 times/min	80 times/min	80 times/min
Power consumption	6Kw	8Kw	9Kw
Machine size	Approx. L6000 x W2000 x H1680 mm	Approx. L4600 x W2200 x H1900 mm	Approx. L4900 x W2500 x H1900mm

Model	EDR-1010	EDR-1212	EDR-1515
Cutting force	10 tons Max	10 tons Max	10 tons Max
Cutting size	W950xL(D)950mm	W1150xL(D)1150mm	W1450xL(D)1450mm
Material thickness	0.05~0.3mm	0.05~0.3mm	0.05~0.3mm
Feeding precision	+/-0.10mm	+/-0.10mm	+/-0.10mm
Punching level precision	+/-0.025mm	+/-0.025mm	+/-0.025mm
Cutting speed	80 times/min	80 times/min	80 times/min
Power consumption	24Kw	27Kw	28Kw
Machine size	Approx. L5900 x W3000 x H2000 mm	Approx.L6100 x W3200 x H2000 mm	Approx. L6400 x W3500 x H2000 mm

Specifications are subject to change without notice for design improvement.

The specification can be designed by customers demand.

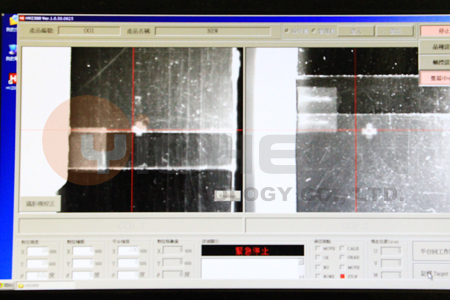

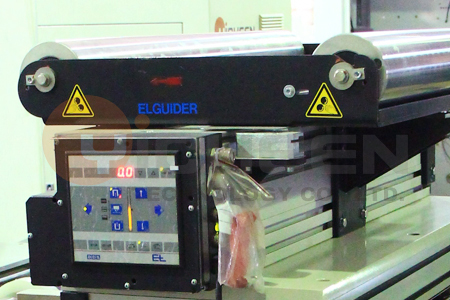

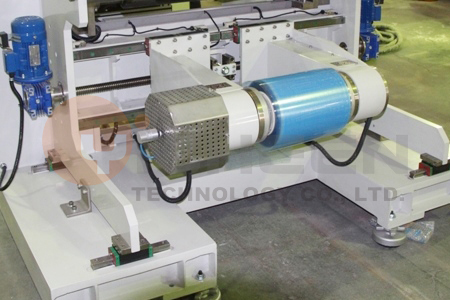

EPC, CCD screen, CCD lens, Auto movable Stacking, Shaftless device, New following material connection platen

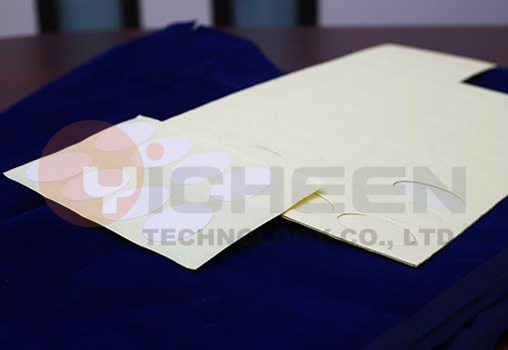

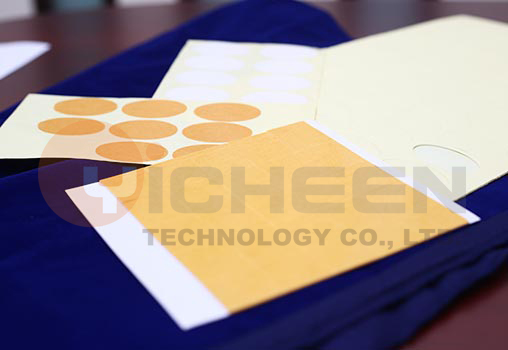

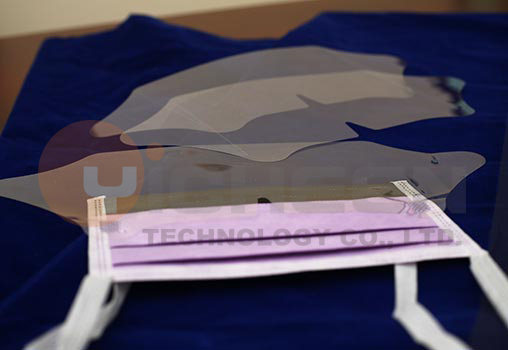

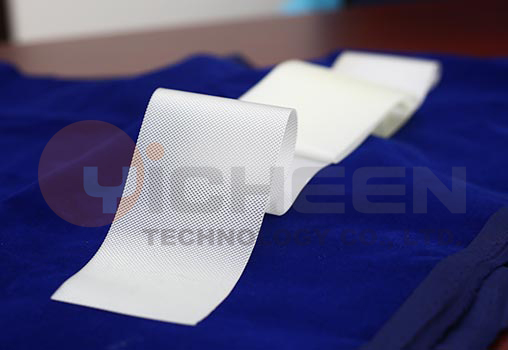

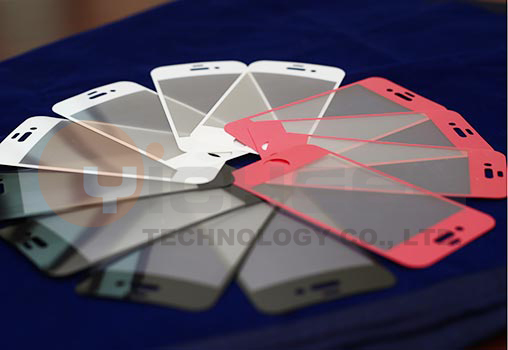

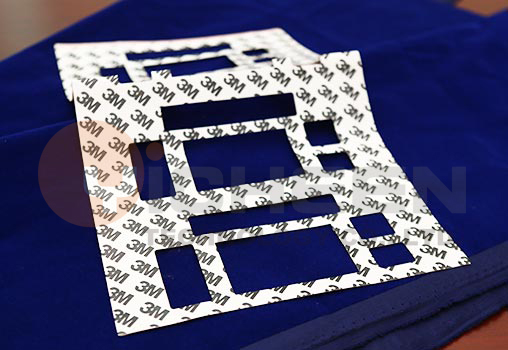

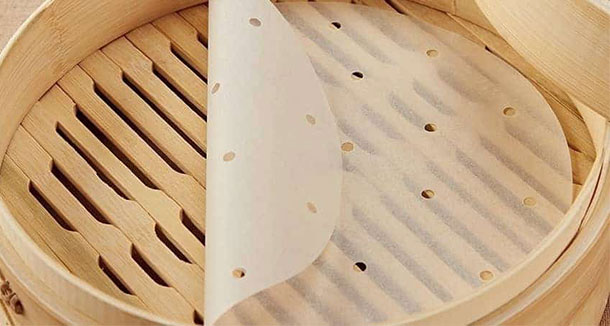

Optical film, Plastic film, e.g.: ITO, Diffuser, Reflects film, Brightness Enhancement Film (BEF), Soft PCB, Composite material. The material are not cracked while cutting.
