- High speed rewind, machine speed is 1~300M/min
- duplex rewinder
- Swing out unwind and rewind air shaft.

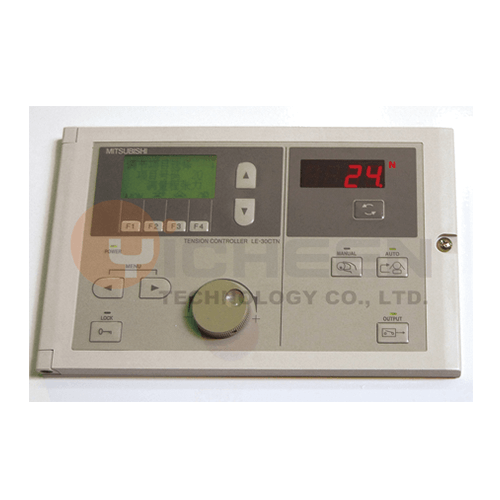

- Equipped with automatic tension controller and load cell, tension value digitally display, increase tension control precision and stable.

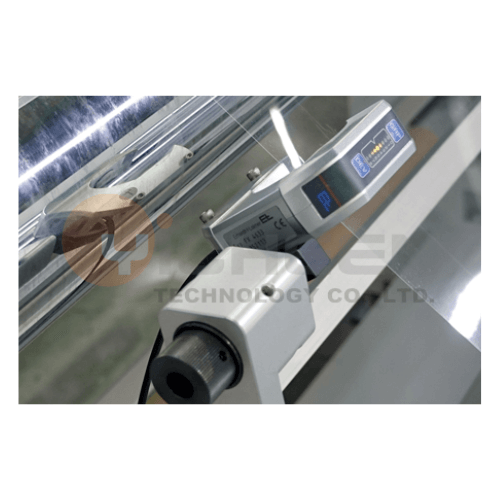

- Equipped with EPC/LPC position control to ensure accurate slitting position.

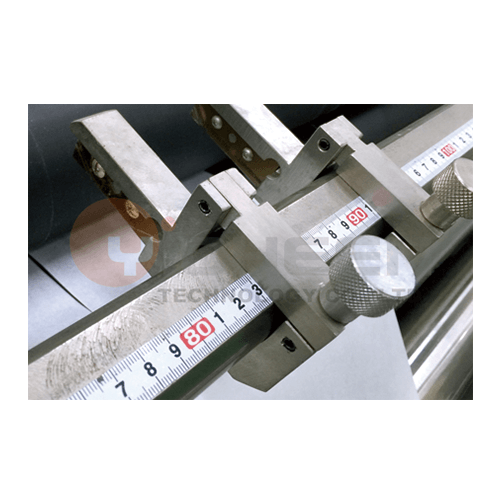

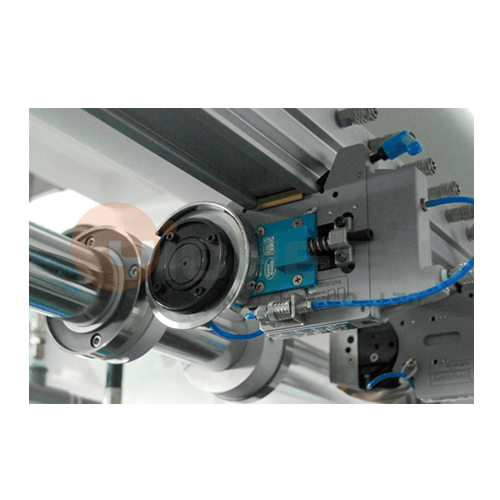

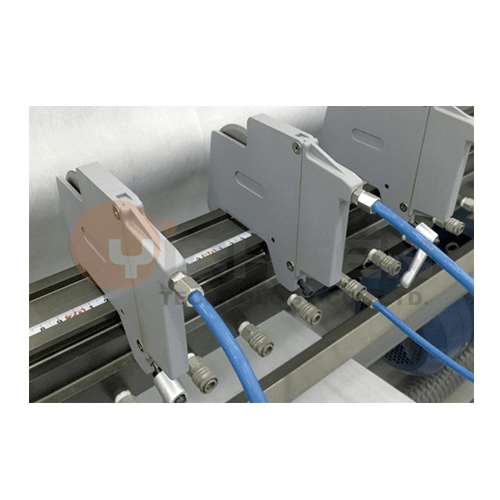

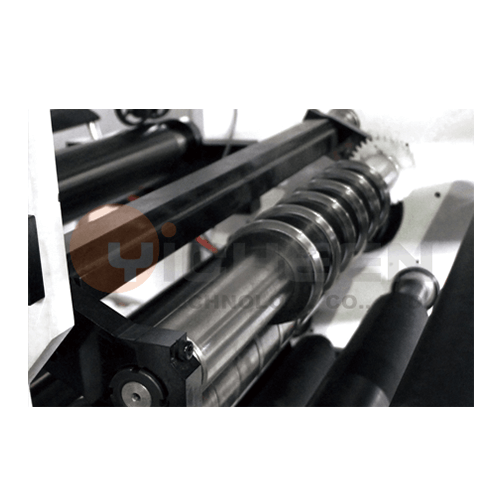

- Equipped with razor cutter and circular shear cutter.

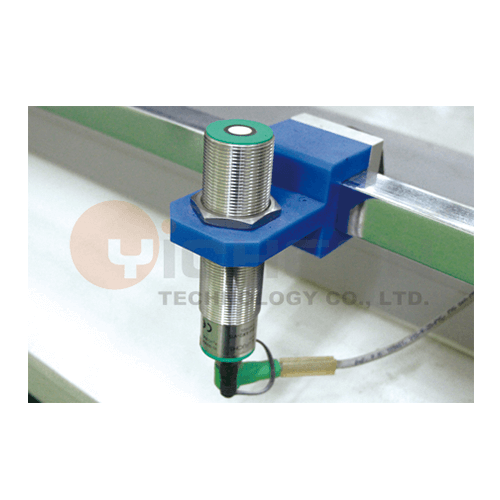

- Rewind section equip with diameter-detector to control rewind motor speed.
- Equipped with pneumatic press roller on re-winder to eliminate the air go into rewind film and avoid film slip.
- Full digitally computer control system, equipped with PLC and touch panel system ,error message alarm and indication are displayed on the screen.
|Min. Cutting Diameter||20mm up|
|Max. Unwind Diameter||800mm|
|Max. Rewind Diameter||500mm/600mm|
|Un/Rewind Shaft Diameter||76.2mm/152mm|
Specifications are subject to change without notice for design improvement.
The specification can be designed by customers demand.

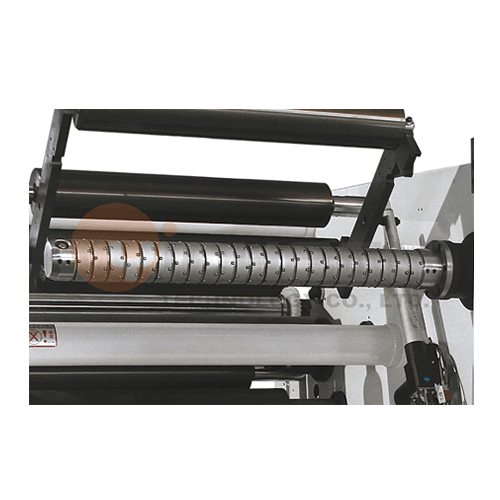

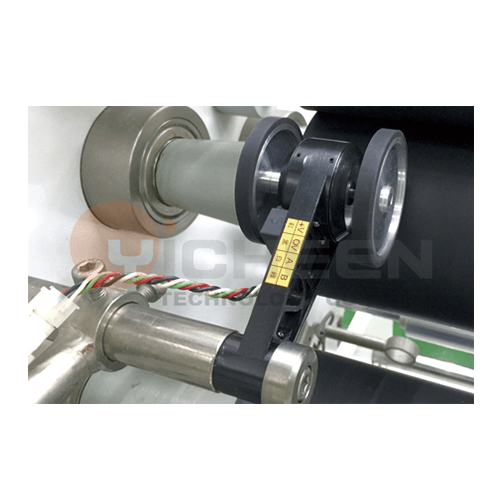

Differential shaft, Air Slitter,Tension control system, EPC system,Shear cutter (up & down), Diameter detector,Meter counter, Flat blade, Air knife

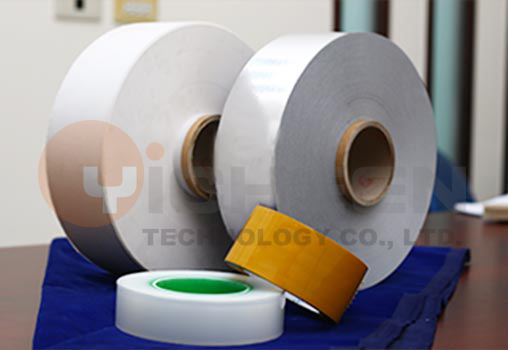

OPP、BOPP、PET、PVC、transfer paper、foil、Non-woven cloth…etc.
