  • Fully numerical control to equip with computer. Running operation for one touch. PLC computer touch-panel screen control system

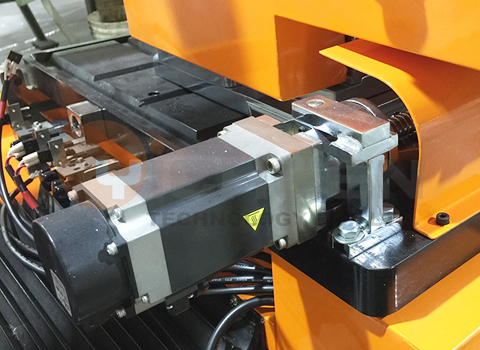

  • Fully automatic servo control system, in position accuracy and high speed.

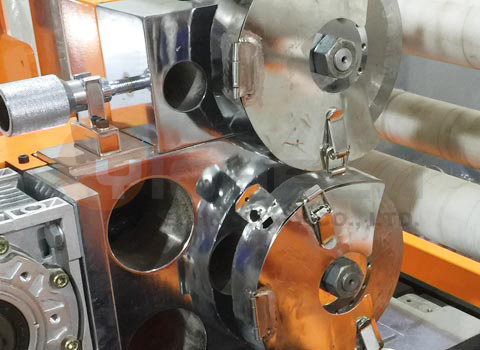

  • Circular cutter feed/withdraw and angle in position by servo automatic. One spindle approved set up 16 modes cutting in the meantime. Spindle and cutter rotate set up by touch panel and interchangeable rotary direction.
  • High speed cutting
  • Automatic, error self-detect and display25M/分
  • Non-hydraulic design, no Pollution, low vibration and low noise.
Model C2
Available Cutting Width 1.0M/1.3M/1.6M
Cutting Precision ±0.01mm
Max. Cutting Diameter 400/160/160mm
Min. Cutting Width 2mm

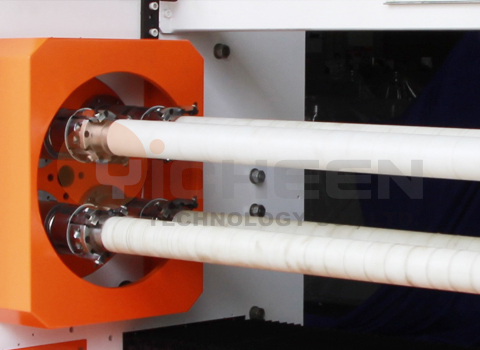

Cutting Core Diameter 26/77mm (1"/3")

Specifications are subject to change without notice for design improvement.

The specification can be designed by customers demand.

Cutter angle rotation equipment,Dual cutter device,2shfats rotary device

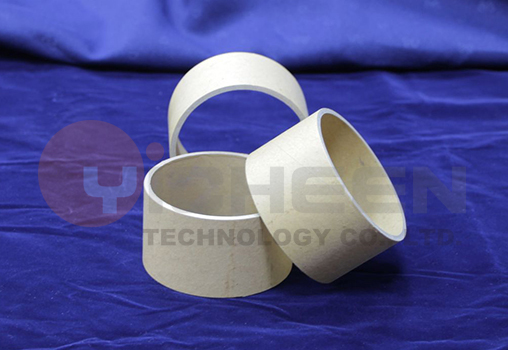

Double side adhesive tape, Paper core, PVC, Rubber, leather, foam… etc. roll tube
