Servo Sheet Cutting Machine

Classification : Sheet Cutting

Applications: Electronics & 3C Automotive Applications Rubber Treads Shockproof Rubber Rubber Diaphragms

YICHEEN TECHNOLOGY CO., LTD.

Country: Taiwan

Phone: 886-6-3562788 (21)

Fax: 886-6-3562777

Contact Person: Peggy

Inquiry Now

PLC control system (M.M.I).
Non-hydraulic design, no pollution, low noise, best for using in dustless room.
Servo motor control feeding length, make sure precise cutting length.
Anti static PU roller for reducing scrape happened.
Anti static PU roller for reducing scrape happened.

Model	EC-740	EC-1000
Cutting width	700mm	950mm
Material thickness	0.2~10mm	0.2~10mm
Cutting length	1~2000mm	1~2000mm
Cutting speed	70 times/min	70 times/min
Cutting precision	+/-0.10mm	+/-0.10mm
Machine size	Approx. L800 x W1700 x H1600 mm	Approx. L1000 x W2200 x H1600 mm

Model	EC-1200	EC-1400
Cutting width	1150mm	1350mm
Material thickness	0.2~10mm	0.2~10mm
Cutting length	1~2000mm	1~2000mm
Cutting speed	70 times/min	70 times/min
Cutting precision	+/-0.10mm	+/-0.10mm
Machine size	Approx. L1100xW2440xH1600 mm	Approx. L1300xW2640xH1600 mm

Model	EC-1700	EC-2700
Cutting width	1650mm	2600mm
Material thickness	0.2~10mm	0.2~10mm
Cutting length	1~2000mm	1~2000mm
Cutting speed	70 times/min	70 times/min
Cutting precision	+/-0.10mm	+/-0.10mm
Machine size	Approx. L1300xW2940xH1600 mm	Approx. L1300xW3940xH1600 mm

Specifications are subject to change without notice for design improvement.

The specification can be designed by customers demand.

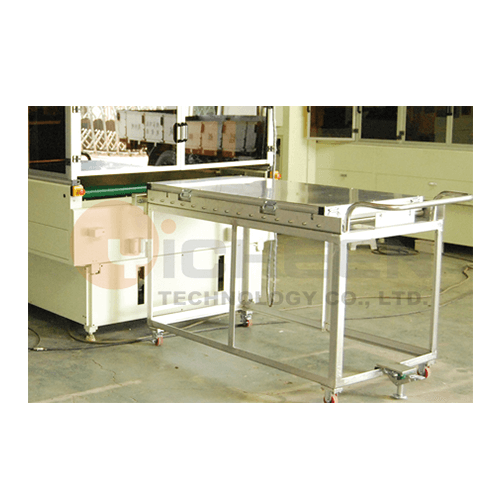

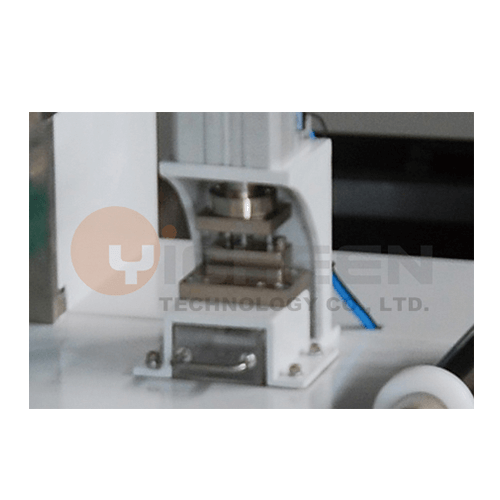

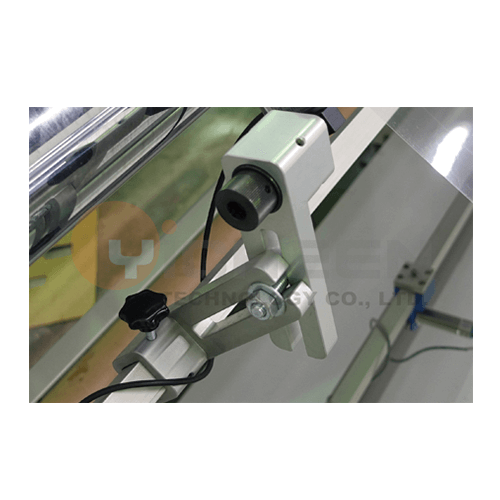

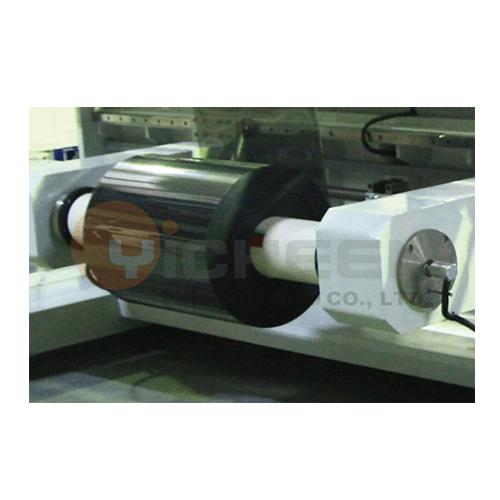

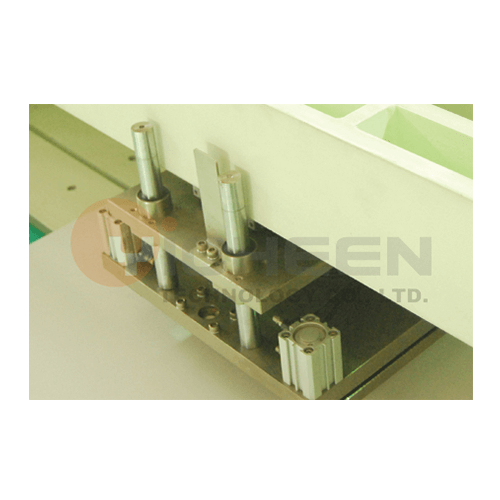

EPC, Punch hole device, Die cut device, Stacking for soft material, Shaftless device

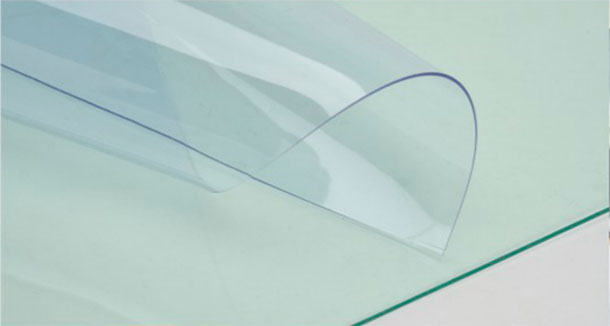

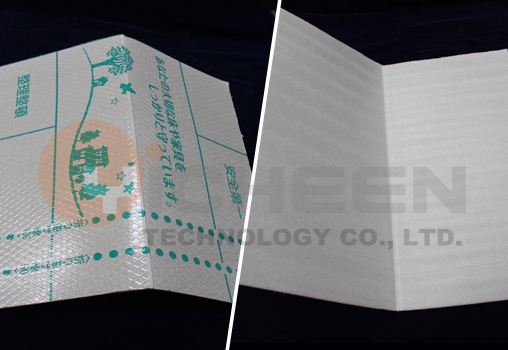

Rubber sheet, plastic sheet/films, paper and composite materials.

Model: EC
Clients: Phoenix x (Taiwan's southern plastic extrusion machine manufacturers)

Field: Plastic Extrusion Plane Plate Plan

Customer information:
1. The extrusion machine operates with a cutting line speed of 65m / min
2. The material must be placed in the centre for compression
3. Back-end stacking action.

Solution:
In order to meet the high quality requirements of Japanese customers, our factory focuses on excellent performance in cutting precision. Because of our expertise and reputation, the name Yicheen has become synonymous with precision. Despite the speed of the process, and the continuous action of our machines a certain level of cutting accuracy must be achieved. Our employees over the years, have built up a wealth of experience in order to solve these issues and reach our fully automated production goals.
