Name: Twin Screw Roller (TSR) Head Extruder
Brand: YI TZUNG PRECISION MACHINERY CORPORATION

Classification : Twin Screw Sheeter

YI TZUNG PRECISION MACHINERY CORPORATION

Country: Taiwan

Phone: 886-4-25324185

Fax: 886-2-27217956

Contact Person: Mr.Wu

Inquiry Now

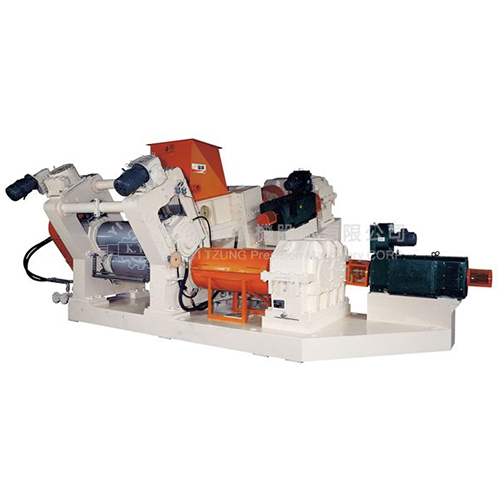

The Twin Taper Screws Roller Head Extruder consists of two tapered screws and two rollers,The machine is normally applied for processing to a dispersion kneader or an intensive mixer. The rubber material,mixed by a dispersion kneader or an intensive mixer,is then fed to the rollers through the two tapered screws.It calenders the material to a desired sheet form at a constant speed. The machine is designed and engineered for high speed sheet forming operations.

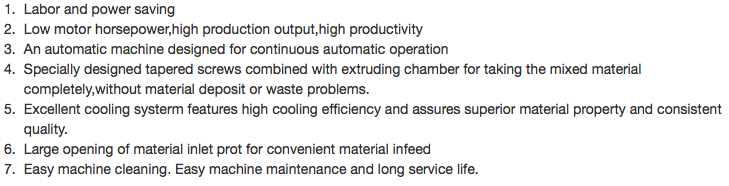

Labor and power saving.
Low motor horsepower,high production output,high productivity.
An automatic machine designed for continuous automatic operation.
Specially designed tapered screws combined with extruding chamber for taking the mixed material completely,without material deposit or waste problems.
Excellent cooling systerm features high cooling efficiency and assures superior material property and consistent quality.
Large opening of material inlet prot for convenient material infeed.
Easy machine cleaning. Easy machine maintenance and long service life.

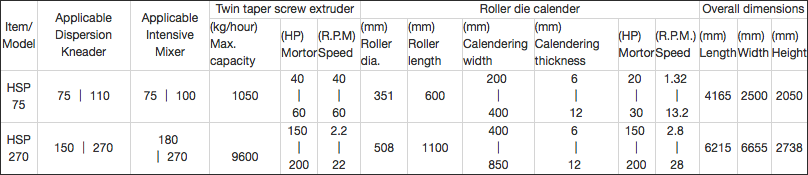

Item/ Model	Applicable Dispersion Kneader	Applicable Intensive Mixer	Twin taper screw extruder			Roller die calender						Overall dimensions
Item/ Model	Applicable Dispersion Kneader	Applicable Intensive Mixer	(kg/hour) Max. capacity	(HP) Mortor	(R.P.M) Speed	(mm) Roller dia.	(mm) Roller length	(mm) Calendering width	(mm) Calendering thickness	(HP) Mortor	(R.P.M.) Speed	(mm) Length	(mm) Width	(mm) Height
HSP 75	75 ｜ 110	75 ｜ 100	1050	40 ｜ 60	40 ｜ 60	351	600	200 ｜ 400	6 ｜ 12	20 ｜ 30	1.32 ｜ 13.2	4165	2500	2050
HSP 270	150 ｜ 270	180｜ 270	9600	150 ｜ 200	2.2 ｜ 22	508	1100	400 ｜ 850	6 ｜ 12	150 ｜ 200	2.8 ｜ 28	6215	6655	2738
