Laboratory Intensive Mixer

Classification : Laboratory Dispersion Kneader

YI TZUNG PRECISION MACHINERY CORPORATION

Country: Taiwan

Phone: 886-4-25324185

Fax: 886-2-27217956

Contact Person: Mr.Wu

Inquiry Now

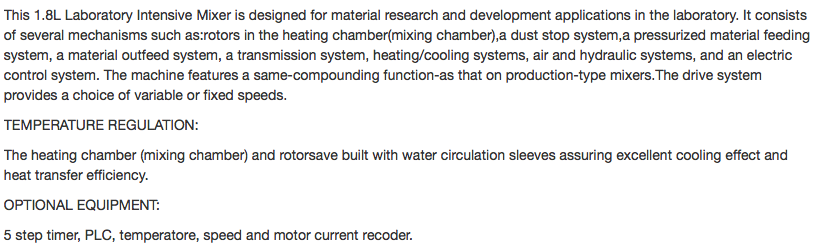

This 1.8L Laboratory Intensive Mixer is designed for material research and development applications in the laboratory. It consists of several mechanisms such as:rotors in the heating chamber(mixing chamber),a dust stop system,a pressurized material feeding system, a material outfeed system, a transmission system, heating/cooling systems, air and hydraulic systems, and an electric control system. The machine features a same-compounding function-as that on production-type mixers.The drive system provides a choice of variable or fixed speeds.
TEMPERATURE REGULATION:The heating chamber (mixing chamber) and rotorsave built with water circulation sleeves assuring excellent cooling effect and heat transfer efficiency.
OPTIONAL EQUIPMENT:5 step timer, PLC, temperatore, speed and motor current recoder.
DUST STOP COMPARISON:A spring-loaded type stopper.

Tangential Rotor:There are two blades on the rotor.Both rotors run at different speeds causing non-engagement of the blades.

Engaged Rotor:There are two blades on the rotor.Both rotors run at the same speed causing engagement of the blades.

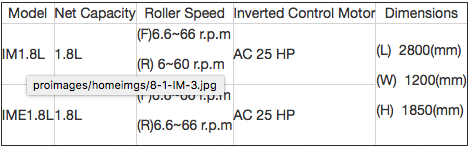

Model	Net Capacity	Roller Speed	Inverted Control Motor	Dimensions
IM1.8L	1.8L	(F)6.6~66 r.p.m	AC 25 HP	(L) 2800(mm)
IM1.8L	1.8L	(R) 6~60 r.p.m	AC 25 HP	(W) 1200(mm)
IME1.8L	1.8L	(F)6.6~66 r.p.m	AC 25 HP	(H) 1850(mm)
IME1.8L	1.8L	(R)6.6~66 r.p.m	AC 25 HP
