Classification : Product
Country: Taiwan
Phone: 886-4-25324185
Fax: 886-2-27217956
Contact Person: Mr.Wu

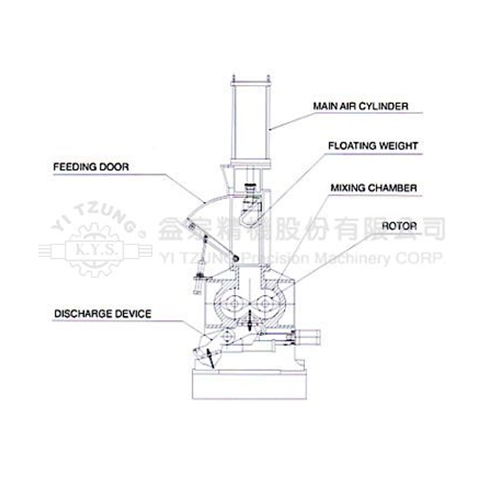

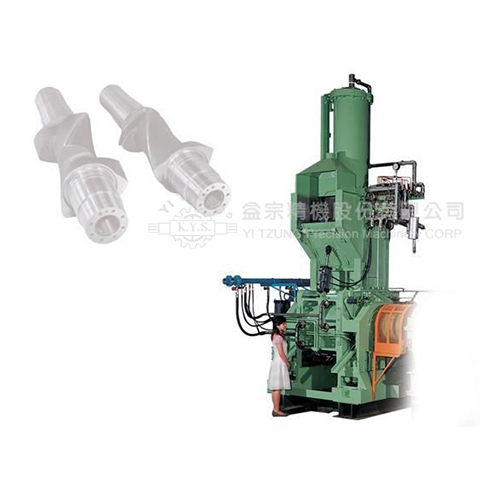

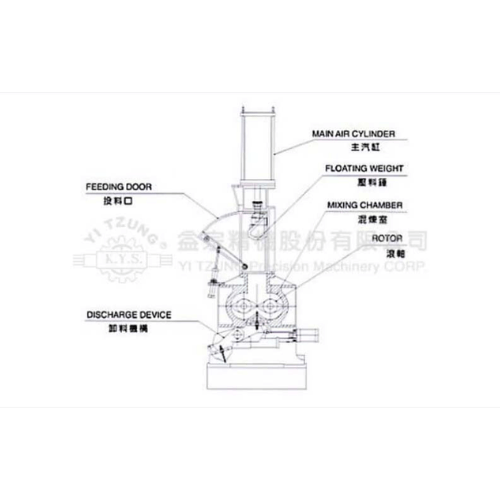

This Intensive Mixer is designed for mixing compounds and specific plastic. The structure of the machine consists of the main air cylinder, floating weight, feeding door, mixing chamber, rotors and discharge device.
When performing mixing compound operations, the material and ingredients are fed together into the mixing chamber. The material in the mixing chamber is repeatedly sheared and squeezed by the rotors.
This provides a series of chemical rotations between the material and the ingredients, which enables the material pieces to stick together into a paste mass shape. Mixing compound operations are performed according to the set temperature and conditions.
This specially designed mixing machine provides efficient mixing and refining for a wide range of raw materials, such as raw rubber, resins, asphalt, cellulose, PVC ane EVA…etc.
When performing mixing compound operations, the material and ingredients are fed together into the mixing chamber. The material in the mixing chamber is repeatedly sheared and squeezed by the rotors.
This provides a series of chemical rotations between the material and the ingredients, which enables the material pieces to stick together into a paste mass shape. Mixing compound operations are performed according to the set temperature and conditions.
This specially designed mixing machine provides efficient mixing and refining for a wide range of raw materials, such as raw rubber, resins, asphalt, cellulose, PVC ane EVA…etc.
- Short mixing time. High efficiency.
- Ruggedly constructed throughout. Easy to operate.
- Superior cooling system.
- Outstanding mixing performance and dispersion effect.
- No material leakage ensures a clean working environment.

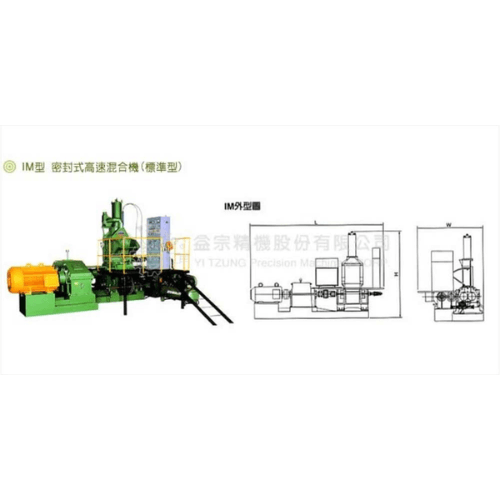

| Model | Mixing Capacity | Main Motor | Rotors Revolution | Machine Dimensions | ||
| (L) | (HP) | (R.P.M) | (mm) | |||
| H | L | W | ||||
| IM-35 | 35 | 75-100 | 35/30 | 3150 | 5100 | 2550 |
| IM-50 | 50 | 125-150 | 35/30 | 3370 | 5400 | 3600 |
| IM-75 | 75 | 200-250 | 35/30 | 3600 | 6890 | 2850 |
| IM-100 | 100 | 300-350 | 35/30 | 4300 | 6745 | 3650 |
| IM-180 | 180 | 700-1000 | DC 5~50 | 5190 | 2430 | 1770 |
| IM-240 | 240 | 1200-1500 | DC 6~60 | 5650 | 2450 | 2010 |
| IM-270 | 270 | 1500-2000 | DC 6~60 | 5715 | 2460 | 2100 |
