Classification : Mixing Mill
Country: Taiwan
Phone: 886-4-25324185
Fax: 886-2-27217956
Contact Person: Mr.Wu

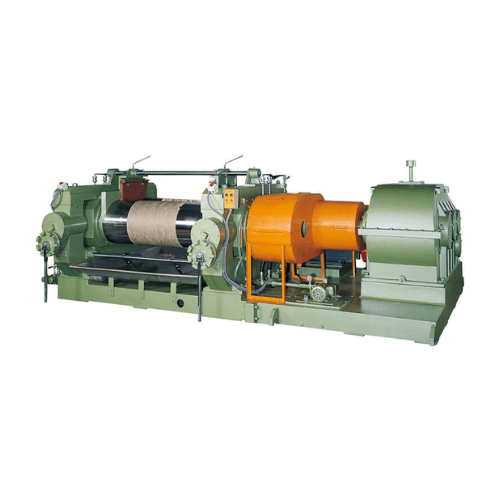

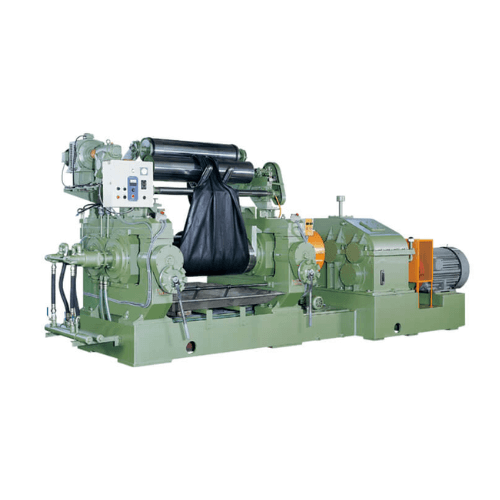

Designed for mixing and kneading raw rubbers, synthetic rubbers, thermoplastics, E.V.A and chemicals, ensuring maximum uniformity of material. The processed materials are normally used on calenders, hot presses, or other processing machinery for producing various rubber and plastic products.
- Automobile, motorcycle and bicycle tires and tubes.
- Rubber shoes, soles and heels.
- Rubber rafts, P.V.C sheet, artificial leather.
- Rubber / EVA sponge soles.
- Rubber rain boots and rain wear.
- Rubber nipples, sports balls.
- Rubber rollers, rice rollers.
- Rubber goods for industry.
- Rubber goods for automobiles.
- V-belts and conveyor belts.
- Rubber cushions.
- Regenerating rubber.
- ROLLS:Manufactured from chilled cast iron. Inside rolls are cooled by water or heated by steam.
- FRAMES:Manufactured from welded steel plates or high tensile cast iron for maximum rigidity.
- BED:One piece construction of welded steel plate or cast iron provides maximum stability.
- BUSHING:1.An oil sealed type bushing. 2.The bearing type bushing is constructed of cast iron housing and high strength bearing at inside diameter.
- BUSHING LUBRICATION:Employs automatic circulated lubrication system.
- ROLL GAP ADJUSTMENT:1.Manual gap adjustment is standard.2.Powered gap adjustment is optional.
- REDUCTION GEAR BOX:Three-step totally enclosed gear reducer is driven by self gear. Gears are lubricated by self splash lubrications system.
Item | Size of Rolls | Power Requirement (HP) | Machine Outline Dimension (mm) | ||
---|---|---|---|---|---|
L | W | H | |||
1 | 10"Øx26"L | 20 | ML 3530 | ML 1085 | ML 1870 |
2 | 12"Øx30"L | 25 | ML 3750 | ML 1235 | ML 1945 |
3 | 14"Øx36"L | 40 | ML 4570 | ML 1450 | ML 2045 |
4 | 16"Øx42"L | 50 | ML 5050 | ML 1650 | ML 2100 |
5 | 18"Øx48"L | 75 | ML 5650 | ML 1820 | ML 2350 |
6 | 22"Øx60"L | 125 | ML 6600 / MB 5200 | ML 2200 / MB 3200 | ML 1600 / MB 1550 |
7 | 24"Øx72"L | 200 | ML 7200 / MB 6600 | ML 2340 / MB 3800 | ML 1900 / MB 1900 |
8 | 26"Øx84"L | 250 | ML 9000 / MB 7000 | ML 2850 / MB 4000 | ML 1710 / MB 1710 |
9 | 28"Øx90"L | 350 | ML 8800 | ML 2640 | ML 1970 |
