PRM-TAIWAN

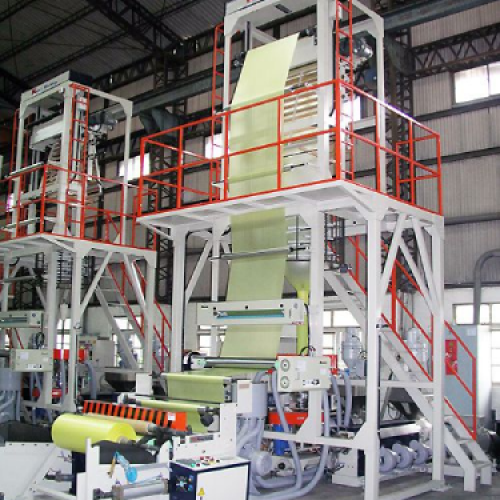

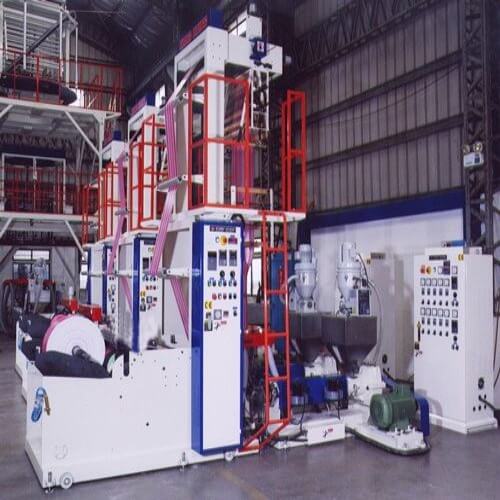

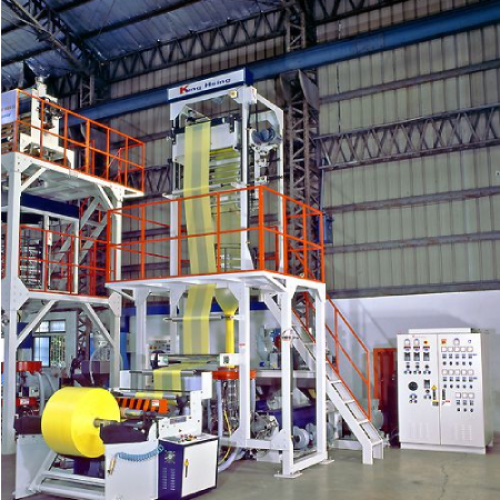

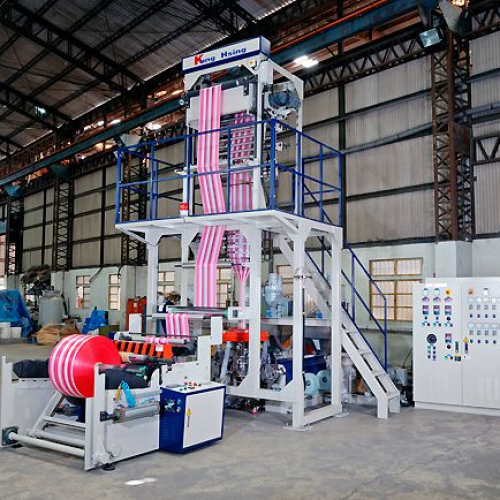

Classification : Blown Film Line
Country: Taiwan
Phone: 886-5-2374466
Fax: 886-5-2376971 /886-5-2381029
Contact Person: Kun Lin Tsai
Inquiry Now
MODEL KS-TE35 KS-TE45
FEATURE LAYFLAT WIDTH   500 m/m   700 m/m
THICKNESS OF FILM   0.005~0.08 m/m
MAX. EXTRUSION OUTPUT   60 kg/hr   85 kg/hr
EXTRUDER SCREW DIA.   35 m/m ø × 2   45 m/m ø × 2
SCREW L/D   30 : 1   30 : 1
SCREW CYLINDER MATERIAL   SACM 645 STEEL WITH HARD WITH NITROGEN TREATMENT
CYLINDER COOLING BLOWER   ¼ HP × 4   ¼ HP × 4
DRIVING MOTOR   10 HP × 2   20 HP × 2
HEATER CAPACITY   25 kw   30 kw
DIES   60 mm ø   85 mm ø
CONTROL PANEL TEMPERATURE CONTROL   8 ZONES   10 ZONES
COOLING EQUIP BLOWER   5 HP   5 HP
TAKE-UP UNIT TYPE   FIXED TYPE
PINCH ROLLER (m/m)   165 ø ×  550 L   165 ø ×  750 L
TAKE-UP MOTOR   1 HP   1 HP
TAKE-UP SPEED (m/min)   12 ~ 120   12 ~ 120
SUB-PINCH ROLLER (m/m)   100 ø × 550 L   100 ø × 750 L
GUIDE MOTOR   15 kg/cm × 1   20 kg/cm × 1
WINDING UNIT TYPE
ATTACHED TYPE, SURFACE, MANUAL TYPE
BOBBIN CHANGE
DIA. OF FILM WOUND-UP ROLL   800 mm   800 mm
EFFECTIVE WIDTH (m/m)   500   700
WINDER MOTOR   1 HP   1 HP
SHIPPING DATA DIMENSION (L×W×H) (M)   4.0×2.3×4.0   5.0×2.5×4.5
OPTIONAL DEVICE
Gravimetric Dosing Unit Oscillating Take Up Unit
IBC (Internal Bubble Cooing Computer Control System) Line Speed Synchronized with Computer Control
Thickness Measurement Two Stations Surface Winder
Thickness Controller Chiller
Automatic Hopper Loader Heat Slitting Device
Film Surface Treater EPC (Edge Position Control)
Pressure Gauge Electronic Tension Control
Rotary Die Crane for Die and Air Shaft
Automatic Gauge Control with
Automatic Cooling Ring
PIB Pump System (For LDPE/LLDPE)
*Specifications are subject to change without notice for improvement.
