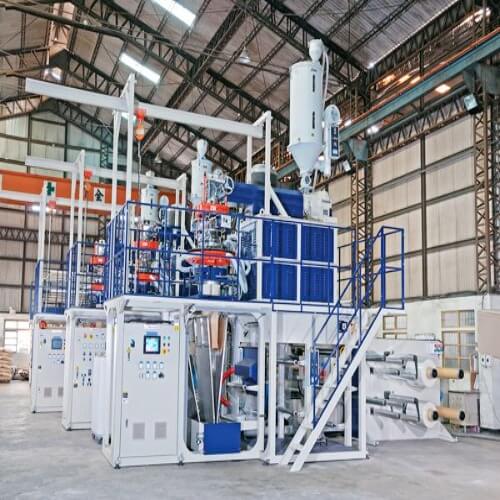

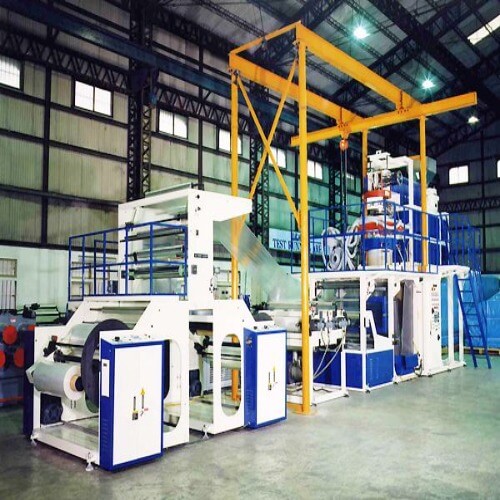

Polypropylene High Speed Blown Film Line

MODEL

KS-AP45

KS-AP55

KS-AP65

KS-AP75

KS-AP90

FEATURE

LAY FLAT WIDTH

75 ~ 350 m/m

200 ~ 550 m/m

300 ~ 700 m/m

400 ~ 800 m/m

600 ~ 1000 m/m

FILM THICKNESS

0.02 ~ 0.08 m/m

EXTRUSION CAPACITY

40 kg/hr

60 kg/hr

80 kg/hr

110 kg/hr

150 kg/hr

EXTRUDER

SCREW DIA.

45 m/m ø

55 m/m ø

65 m/m ø

75 m/m ø

90 m/m ø

SCREW L/D

30 : 1

30 : 1

30 : 1

30 : 1

30 : 1

CYLINDER COOLING BLOWER

¼ HP × 2

¼ HP × 3

½ HP × 3

½ HP × 3

½ HP × 4

DRIVING MOTOR

15 HP

25 HP

40 HP

50 HP

75 HP

HEATER CAPACITY

18 kw

20 kw

26 kw

30 kw

45 kw

ROTARY DIE

150/200 mm ø

250/300 mm ø

350/400 mm ø

400/450 mm ø

500/550 mm ø

AUTOMATIC HOPPER LOADER

1 SET

1 SET

1 SET

1 SET

1 SET

TEMPERATURE CONTROLLER

4 points

5 points

6 points

6 points

9 points

COOLING

COOLING AIR BLOWER

1 HP

1 HP

2 HP

2 HP

3 HP

WATER COOLING SYSTEM

1 SET

1 SET

1 SET

1 SET

1 SET

SIZING RING FOR PRODUCTS

10 PCS

10 PCS

10 PCS

10 PCS

10 PCS

TAKE-UP UNIT

TAKE-UP MOTOR

1 HP

1 HP

2 HP

2 HP

3 HP

TAKE-UP ROLLER (m/m)

165 ø × 500L

165 ø × 700L

165 ø × 850L

165 ø × 950L

165 ø × 1150L

FILM DRYING DEVICE HOT AIR

1 SET

1 SET

1 SET

1 SET

1 SET

WINDING UNIT

TYPE

2 SHAFTS WINDING MACHINE

EFFECTIVE WINDING WIDTH

350 m/m

550 m/m

700 m/m

800 m/m

1000 m/m

WINDING SPEED (m/min)

6 ~ 50

6 ~ 50

6 ~ 50

6 ~ 50

6 ~ 50

WINDING MOTOR

1 HP

1 HP

2 HP

2 HP

3 HP
