Controller SANDAL II
Specification
| Dimensions/H*W*D(mm) | 410*170*58.6 | PB（IO input） | 48+2 |
| PC（IO output） | 48+2 (special function points) | Relay | None, need external connection |
| TEMP temperature input | Standard with external 12 segments, expandable | Analog Input | 12ch+4ch |
| Analog Output | 12（V）+4（ V ） | IO Expansion (Input + Output) | available for IO88（8 PB+8 PC） |
| Communication |
NET*3
CAN*2
|
Switch Power Supply | DC24V |

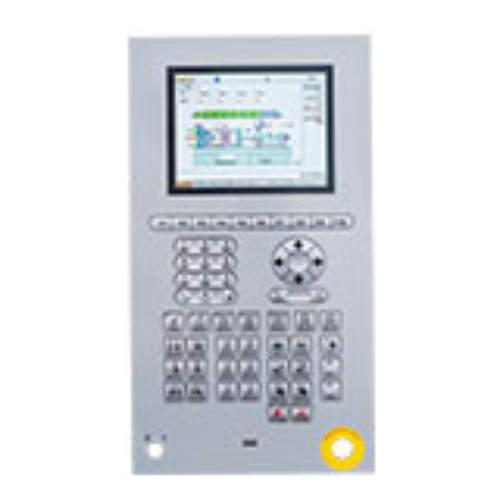

Q12A
Specification Q12A
|
Main Parameter |
|||
|
Dimensions/H*D(mm) |
339*600 |
Central Processor |
AM3354 32bit@800MHZ |
|
LCD Type |
12.1”LED |
LCD Resolution |
800*600 |
|
Baud Rate |
38400bps |
Operation Temperature |
-10℃~50℃ |
|
Storage Temperature/RH |
-20℃~85℃/85%RH |
Communication |
NET*2、CAN*1、RS232*1 |
|
Memory Card |
USB*1 |
|
|
CONTROLLER SMCH
|
Main Parameter |
|||
|
Dimensions /H*W*D(mm) |
424*180*46.5 |
IO points input |
16 |
|
PC（IO points input） |
48 |
TEMP temperature input（Analog Input） |
24 |
|
Analog Input |
7 |
Analog Output |
4（V） |
|
ENCODER |
Optional*2 |
Communication |
NET*1，ETHERCAT*2，CAN*2 |
|
Switch Power Supply |
DC24V |
|
|
Q12A
|
Main Parameter |
|||
|
Dimensions/H*D(mm) |
339*600 |
Central Processor |
AM3354 32bit@800MHZ |
|
LCD Type |
12.1”LED |
LCD Resolution |
800*600 |
|
Baud Rate |
38400bps |
Operation Temperature |
-10℃~50℃ |
|
Storage Temperature/RH |
-20℃~85℃/85%RH |
Communication |
NET*2、CAN*1、RS232*1 |
|
Memory Card |
USB*1 |
|
|

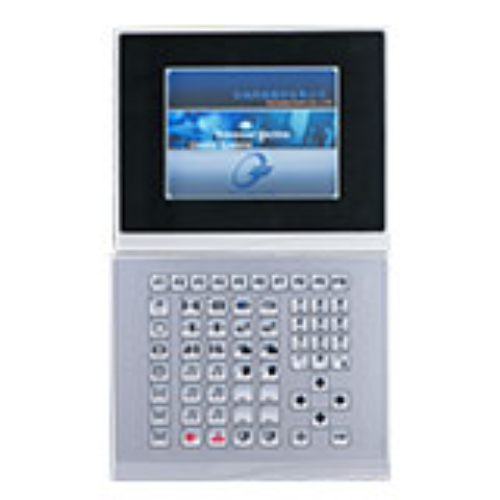

Q8A
|
Main Parameter |
|||
|
Dimensions/H*D(mm) |
260*470 |
Central Processor |
AM3354 32bit@800MHZ |
|
LCD Type |
8.0”LED |
LCD Resolution |
800*600 |
|
Baud Rate |
38400bps |
Operation Temperature |
-10℃~50℃ |
|
Storage Temperature/RH |
-20℃~85℃/85%RH |
Communication |
NET*1、CAN*1、RS232*1 |
|
Memory Card |
USB*1 |
|
|
Controller AK628
|
Main Parameter |
|||
|
Dimensions/H*W*D(mm) |
227*424*56.5 |
PB（IO input） |
24 |
|
PC（IO output） |
24 |
Relay |
11（5 heat+3 moter+3 others） |
|
TEMP temperature input |
6（5 material temperature+1 oil temperature） |
Analog Input |
4ch |
|
Analog Output |
2（A）//2（V）+1（A） |
IO Expansion (Input + Output) |
available for IO88（8 PB+8 PC） |
|
Communication |
RS232*1 |
Switch Power Supply |
DC24V |

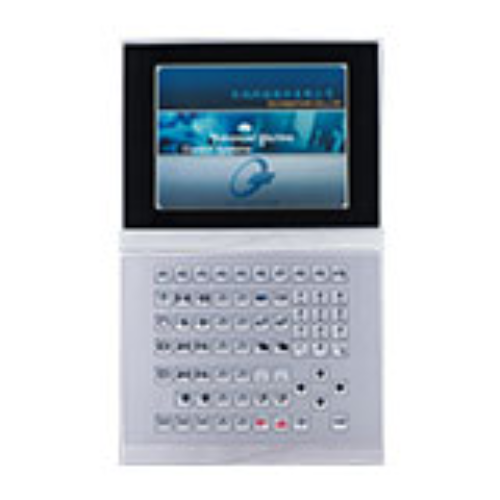

Q8M
|
Main Parameter |
|||
|
Dimensions/H*D(mm) |
260*470 // 400*240 |
Central Processor |
PXA270 32bit@520MHZ |
|
LCD Type |
8.0”LED |
LCD Resolution |
800*600 |
|
Baud Rate |
38400bps |
Operation Temperature |
-10℃~50℃ |
|
Storage Temperature/RH |
-20℃~85℃/85%RH |
Communication |
RS232*1+Optional*1 |
|
NET*1 |
|||
|
Memory Card |
USB*1 |
|
|

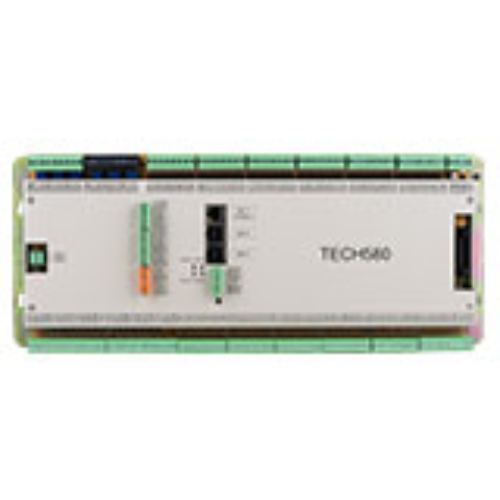

Controller TECH580
|
Main Parameter |
||||
|
Dimensions/H*W*D(mm) |
410*170*58.6 |
PB（IO input） |
48+2 |
|
|
PC（IO output） |
48+2（special function points） |
Relay |
None, need external connection |
|
|
TEMP temperature input |
10（9 material temperature+1 oil temperature） |
Standard with external 12 segments, expandable |
12ch+4ch |
|
|
Analog Output |
12（V）+4（V） |
IO Expansion
（Input
+ Output)
|
available for IO88（8 PB+8 PC） |
|
|
Communication |
NET*3
CAN*2
|
Switch Power Supply |
DC24V |
|

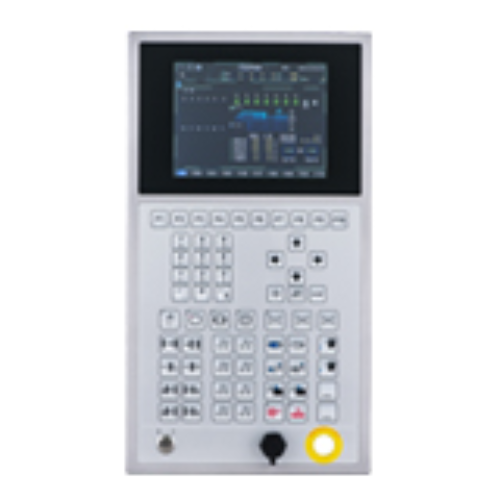

Q12
|
Main Parameter |
|||
|
Dimensions/H*D(mm) |
339*600 |
Central Processor |
AM3354 32bit@800MHZ |
|
LCD Type |
12.1”LED |
LCD Resolution |
800*600 |
|
Baud Rate |
38400bps |
Operation Temperature |
-10℃~50℃ |
|
Storage Temperature/RH |
-20℃~85℃/85%RH |
Communication |
NET*2、CAN*1、RS232*1 |
|
Memory Card |
USB*1 |
|
|
Q8
|
Main Parameter |
|||
|
Dimensions/H*D(mm) |
260*470 |
Central Processor |
AM3354 32bit@800MHZ |
|
LCD Type |
8.0”LED |
LCD Resolution |
800*600 |
|
Baud Rate |
38400bps |
Operation Temperature |
-10℃~50℃ |
|
Storage Temperature/RH |
-20℃~85℃/85%RH |
Communication |
NET*1、CAN*1、RS232*1 |
|
Memory Card |
USB*1 |
|
|

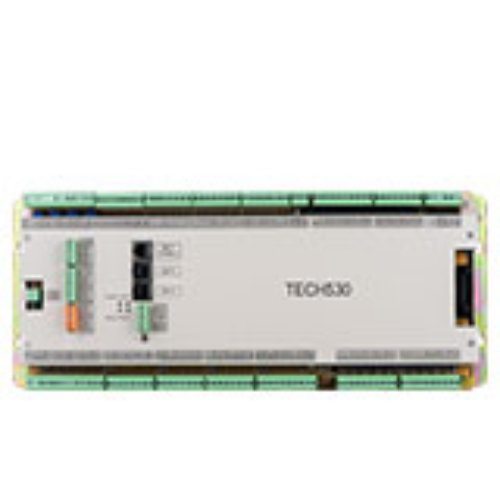

Controller TECH530
|
Main Parameter |
||||
|
Dimensions/H*W*D(mm) |
415*170*58.6 |
PB（IO input） |
32+2（special function points） |
|
|
PC（IO output） |
32+2（special function points） |
Relay |
15（9 heat+2 moter+4 others） |
|
|
TEMP temperature input |
10（9 material temperature+1 oil temperature） |
Analog Input |
6ch+4ch |
|
|
Analog Output |
8（V）+4（ V ） |
IO Expansion
（Input
+ Output)
|
available for IO88（8 PB+8 PC） |
|
|
Communication |
NET*3
CAN*2
|
Switch Power Supply |
DC24V |
|
Q12A
|
Main Parameter |
|||
|
Dimensions/H*D(mm) |
339*600 |
Central Processor |
AM3354 32bit@800MHZ |
|
LCD Type |
12.1”LED |
LCD Resolution |
800*600 |
|
Baud Rate |
38400bps |
Operation Temperature |
-10℃~50℃ |
|
Storage Temperature/RH |
-20℃~85℃/85%RH |
Communication |
NET*2、CAN*1、RS232*1 |
|
Memory Card |
USB*1 |
|
|
Q8A
|
Main Parameter |
|||
|
Dimensions/H*D(mm) |
260*470 |
Central Processor |
AM3354 32bit@800MHZ |
|
LCD Type |
8.0”LED |
LCD Resolution |
800*600 |
|
Baud Rate |
38400bps |
Operation Temperature |
-10℃~50℃ |
|
Storage Temperature/RH |
-20℃~85℃/85%RH |
Communication |
NET*1、CAN*1、RS232*1 |
|
Memory Card |
USB*1 |
|
|

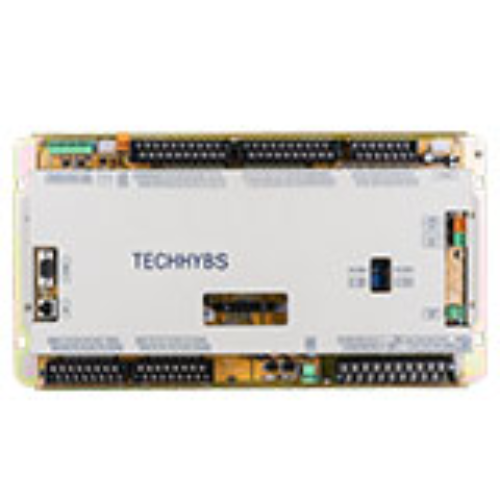

Controller TECHHYBS
|
Main Parameter |
||||
|
Dimensions/H*W*D(mm) |
227*424*47 |
PB（IO input） |
24 |
|
|
PC（IO output） |
28 |
Relay |
12（6 heat+3 moter+3 others） |
|
|
TEMP temperature input |
7（6 material temperature+1 oil temperature） |
Analog Input |
4ch |
|
|
Analog Output |
2（V）+1（A） |
IO Expansion
（Input
+ Output)
|
available for IO88（8 PB+8 PC） |
|
|
Communication |
RS232*1
NET*1
|
Switch Power Supply |
DC24V |
|
Q8A
|
Main Parameter |
|||
|
Dimensions/H*D(mm) |
260*470 |
Central Processor |
AM3354 32bit@800MHZ |
|
LCD Type |
8.0”LED |
LCD Resolution |
800*600 |
|
Baud Rate |
38400bps |
Operation Temperature |
-10℃~50℃ |
|
Storage Temperature/RH |
-20℃~85℃/85%RH |
Communication |
NET*1、CAN*1、RS232*1 |
|
Memory Card |
USB*1 |
|
|

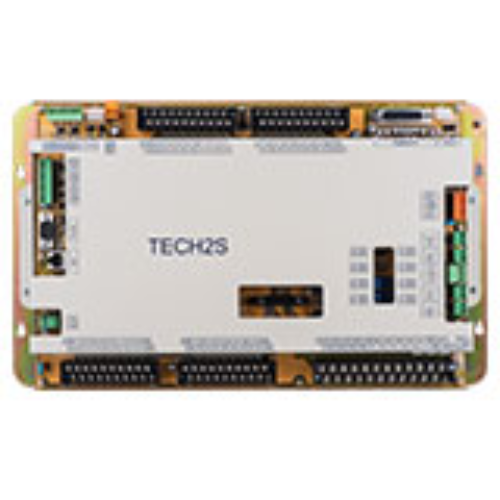

Controller TECH2S
|
Main Parameter |
||||
|
Dimensions/H*W*D(mm) |
255*424*47 |
PB（IO input） |
32 |
|
|
PC（IO output） |
32 |
Relay |
16（6 heat+3 moter+4 others） |
|
|
TEMP temperature input |
10（9 material temperature+1 oil temperature） |
Analog Input |
8ch |
|
|
Analog Output |
2（A）//2（V）+1（A） |
IO Expansion （Input + Output) |
available for IO88（8 PB+8 PC） |
|
|
Communication |
RS232*1
NET*1
|
Switch Power Supply |
DC24V |
|
Q12A
|
Main Parameter |
|||
|
Dimensions/H*D(mm) |
339*600 |
Central Processor |
AM3354 32bit@800MHZ |
|
LCD Type |
12.1”LED |
LCD Resolution |
800*600 |
|
Baud Rate |
38400bps |
Operation Temperature |
-10℃~50℃ |
|
Storage Temperature/RH |
-20℃~85℃/85%RH |
Communication |
NET*2、CAN*1、RS232*1 |
|
Memory Card |
USB*1 |
|
|
Q8A
|
Main Parameter |
|||
|
Dimensions/H*D(mm) |
260*470 |
Central Processor |
AM3354 32bit@800MHZ |
|
LCD Type |
8.0”LED |
LCD Resolution |
800*600 |
|
Baud Rate |
38400bps |
Operation Temperature |
-10℃~50℃ |
|
Storage Temperature/RH |
-20℃~85℃/85%RH |
Communication |
NET*1、CAN*1、RS232*1 |
|
Memory Card |
USB*1 |
|
|

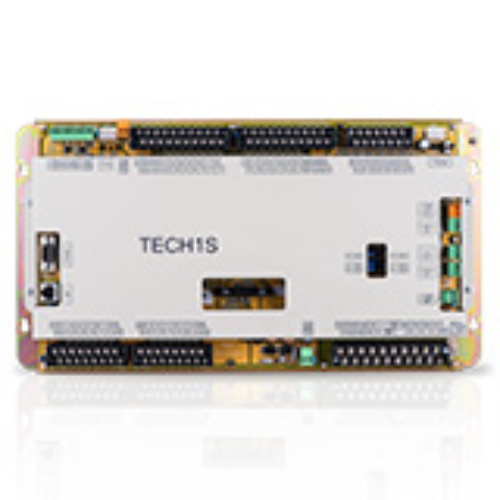

Controller TECH1S
|
Main Parameter |
||||
|
Dimensions/H*W*D(mm) |
227*424*47 |
PB（IO input） |
24 |
|
|
PC（IO output） |
28 |
Relay |
12（6 heat+3 moter+3 others） |
|
|
TEMP temperature input |
7（6 material temperature+1 oil temperature） |
Analog Input |
4ch |
|
|
Analog Output |
2（A）//2（V）+1（A） |
IO Expansion
（Input + Output)
|
available for IO88（8 PB+8 PC） |
|
|
Communication |
RS232*1
NET*1
|
Switch Power Supply |
DC24V |
|
|
characteristic |
DSP54 series high speed signal processor is adopted. Good system stability, low failure rate, suitable for various industrial environments. Full closed-loop oil-electric hybrid servo control, each action with independent PID control, high accuracy. Flexible input/output specifications, good scalability, high cost performance. Full digital control, high degree of information. |
|||
Q12A
|
Main Parameter |
|||
|
Dimensions/H*D(mm) |
339*600 |
Central Processor |
AM3354 32bit@800MHZ |
|
LCD Type |
12.1”LED |
LCD Resolution |
800*600 |
|
Baud Rate |
38400bps |
Operation Temperature |
-10℃~50℃ |
|
Storage Temperature/RH |
-20℃~85℃/85%RH |
Communication |
NET*2、CAN*1、RS232*1 |
|
Memory Card |
USB*1 |
|
|
Q8A
|
Main Parameter |
|||
|
Dimensions/H*D(mm) |
260*470 |
Central Processor |
AM3354 32bit@800MHZ |
|
LCD Type |
8.0”LED |
LCD Resolution |
800*600 |
|
Baud Rate |
38400bps |
Operation Temperature |
-10℃~50℃ |
|
Storage Temperature/RH |
-20℃~85℃/85%RH |
Communication |
NET*1、CAN*1、RS232*1 |
|
Memory Card |
USB*1 |
|
|
