Hot Runner Temperature Controller Chassis Seriess - TC5H Series

Classification : Hot Runner Temperature Controllers

ARICO TECHNOLOGY CO., LTD.

Country: Taiwan

Phone: 886-2-29101266

Fax: 886-2-29159434

Contact Person:

Inquiry Now

The machine features a stackable design that allows for greater flexibility in installation space, and the handle can be concealed for a sleeker appearance.
It also includes a built-in NFB switch and cooling fan, ensuring temperature stability. The device supports quick switching between 230V/380V power input, uses a high-quality Euro-American multi-pole connector for reliability, and utilizes automatic crimping for the terminal and wire, further enhancing reliability.
Additionally, the machine features a standardized design that is compatible with modules from various brands.

ARICO - The Best Solution Of Hot Runner Temperature Controllers
ARICO Technology and worldwide's rubber and plastic injection industry manufacturers have cultivated a long and stable co-operation relationship between us for many years. We was founded in 1987, base on sophisticated manufacturing technology, and focus on the research and development and innovation of industrial control instrument technology. We are not only good at producing customized precision Hot Runner Temperature Controllers and related application equipment, but also provides high-quality Hot Runner Temperature Controllers with the most convenient setting mechanism, stable quality, at a reasonable price to manufacturers in Taiwan, China, the United States, India, Argentina, Israel, Mexico, Thailand, Malaysia, Southeast Asia and other countries. In addition to accumulating and stabilizing partners for related instruments with Hot Runner Temperature Controllers, ARICO continues to conduct research and development in order to provide more stable and efficient machine stability, just for achieving a higher efficiency and stable instrument technology level on temperature control, displacement sensing, pressure sensing, injection molding machine IoT on rubber and plastic industry.

Overvoltage protection, preventing burning of module resulting from faulty wiring
The hearter shoring detected
Automatic detection of wire breakage of heater
TRIAC short-circuit protection
Detection against temperature wire breakage and reverse Troubleshooting of Temperature Sensor wiring.
Blown Fuse detection
Display function of current and output ratio.
Smart SOFT START function
Manual output in case of temperature sensor unusually
Auto/Manual Selection Function
PID Automatic Temperature Control
Output percentage limit setting
Two options of temperature sensor wire types (J/K)
Two options of temperature unit (°C/°F)
Six alarm options
RS485 communication function: ASCII and RTU mode (Optional)
K TYPE Thermocouple range: 0 ~ 600 °C ( 32~999 °F )
J TYPE Thermocouple range: 0 ~ 600 °C ( 32~9999 °F )

TC5H	2 zones	4 zones	6 zones	8 zones	12 zones
Type	T5B02	T5B04	T5B06	T5B08	T5B12
Power Switch Capacity(A)	32	32	63	63	63
Output Connector	16pins x1	16pins x1	24pins x1	16pins x2	24pins x2
Power Cable	5.5mm² x 5C x 3M	5.5mm² x 5C x 3M	8mm² x 5C x 3M	8mm² x 5C x 3M	8mm² x 5C x 3M
Easy Input Switching	Yes	Yes	Yes	Yes	Yes
Dimension W x H x D (mm)	179 x 204 x 329	281 x 204 x 329	383 x 204 x 329	485 x 204 x 329	689 x 204 x 329

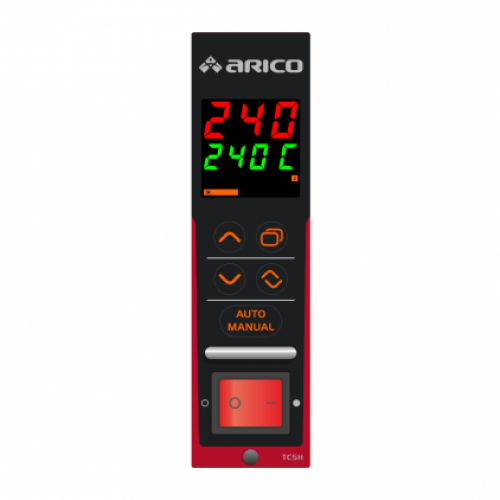

TC5H	Model
Control Points	1 Zone
Power Input	230Vac±10%,50/60Hz
Power Consumption	3W
Power Output	3450W,230VAC/15A
Output Mode	Zero Cross/Phase angel
Input Temp. Sensor	J/K type
Temp. Unit	°C/°F
Temp. Control Range	0~600°C / 32~999°F
Output Alarm	Six modes
Control Accuracy	±0.25%FS
Measurement Accuracy	±0.25%FS
Storage Temp.	-20~70°C / -4~158°F
Working Temp.	0~50°C/32~122°F
Humidity	10~80%RH. (non-condensing)
Fuse	Fast response ceramic FF20A 500V 6.3*32
Detection Function	Current/ Fuse open circuit/ TRAIC short-circuit
Communication Mode	RS-485 (Standard MODBUS), Optional
Communication rate	9600/19200/38400/57600/115200

Specification	TC5E	TC5H	TC5T
Control Points	1 zone	1 zone	2 zone
Power Input	230Vac±10%,50/60Hz	230Vac±10%,50/60Hz	230Vac±10%,50/60Hz
Power Consumption	7W	3W	7W
Power Output	3450W,230VAC/15A	3450W,230VAC/15A	3450W,230VAC/15A
Power Output	3450W,230VAC/15A	3450W,230VAC/15A	(Every module)
Output Mode	Zero Cross/Phase angel	Zero Cross/Phase angel	Zero Cross/Phase angel
Input Temp. Sensor	J/K type	J/K type	J/K type
Temp. Unit	°C/°F	°C/°F	°C/°F
Temp. Control Range	0~600°C / 32~999°F	0~600°C / 32~999°F	0~600°C / 32~999°F
Output Alarm	Six modes	Six modes	Six modes
Control Accuracy	±0.25%FS	±0.25%FS	±0.25%FS
Measurement Accuracy	±0.25%FS	±0.25%FS	±0.25%FS
Storage Temp	-20~70°C / -4~158°F	-20~70°C / -4~158°F	-20~70°C / -4~158°F
Working Temp	0~50°C/32~122°F	0~50°C/32~122°F	-10~50°C /14~122°F
Humidity	10~80%RH. (non-condensing)	10~80%RH. (non-condensing)	0~80%RH. (non-condensing)
Fuse	Fast response ceramic F20A 250V 6.3*32	Fast response ceramic FF20A 500V 6.3*32	Fast response ceramic FF20A 500V 6.3*32
Detection Function	None	Current/ Fuse open circuit/ TRAIC short-circuit	Current/ Fuse open circuit/ TRAIC short-circuit
Communication Mode	None	RS-485 (Standard MODBUS), Optional	RS-485 (Standard MODBUS), Optional
Communication Rate	None	9600/19200/38400/57600/115200	9600/19200/38400/57600/115200
