Hot Runner Controller / Multi-Cavity Hot Runner Temperature Controller - TC5200

Classification : Multi-Cavity Hot Runner Temperature Controllers
Country: Taiwan
Phone: 886-2-29101266
Fax: 886-2-29159434
Contact Person:

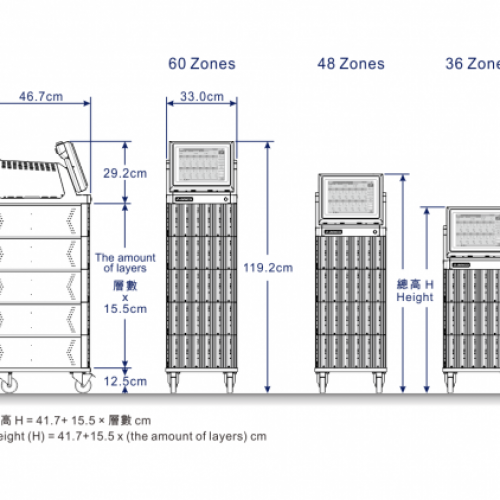

  • The TC5200 multi-cavity hot runner temperature controller. One single temperature controller has 26 to 72 zones and even up to 240 zones in a network. Maintenance operations can be simplified with its modularized device design and requirement-based configuration. The purchasing costs are greatly reduced by its unique temperature control, with two zones within one level.

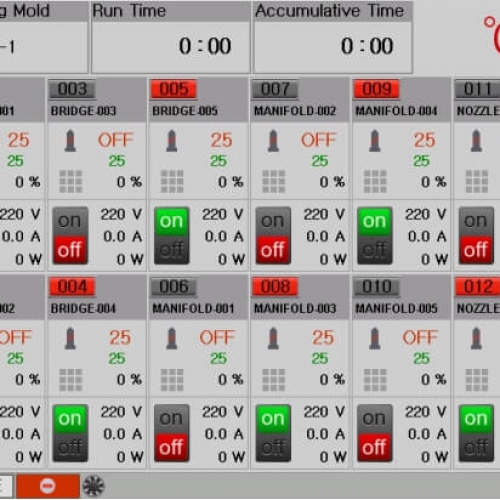

  • High light of the TC5200 Hot Runner Control system is the GUI based user interface, along with its adjustable perspective angle, is easy for fast adoption in multi-points control. The RS485 communication function enables you to set up multiple controls at once to simplify the required operations. The built-in and practical current sensor and indicator functions benefit various applications, especially automotive, bottle billet injection, and medical supplies, by realizing the concept of one-stop control.


ARICO - The Best Solution Of Hot Runner Temperature Controllers
ARICO Technology and worldwide's rubber and plastic injection industry manufacturers have cultivated a long and stable co-operation relationship between us for many years. We was founded in 1987, base on sophisticated manufacturing technology, and focus on the research and development and innovation of industrial control instrument technology. We are not only good at producing customized precision Hot Runner Temperature Controllers and related application equipment, but also provides high-quality Hot Runner Temperature Controllers with the most convenient setting mechanism, stable quality, at a reasonable price to manufacturers in Taiwan, China, the United States, India, Argentina, Israel, Mexico, Thailand, Malaysia, Southeast Asia and other countries. In addition to accumulating and stabilizing partners for related instruments with Hot Runner Temperature Controllers, ARICO continues to conduct research and development in order to provide more stable and efficient machine stability, just for achieving a higher efficiency and stable instrument technology level on temperature control, displacement sensing, pressure sensing, injection molding machine IoT on rubber and plastic industry.

  • Automatic ID recognition
  • PID auto temperature control
  • Editable zone name (auto/manual)
  • Automatic shutdown for heater abnormality
  • Current, output percentage display function
  • Fast alternative for 230V/380V power input
  • Easy swapping for individual module failures
  • Follower function for thermocouple disconnection
  • 8 curves display (temperature, output percentage)
  • Synchronized temperature raising/lowering
  • Module memory (internal and external USB drive)
  • Internal alarm buzzer (with alarm sound stop switch)
  • Detection for heater open and short circuits
  • RS485 communication function: ASCII and RTU mode
  • To protect the power source input wrong witting and less phase
  • Selectable two output trigger modes (Phase angle / Zero cross)
  • Temperature range: Thermocouple K TYPE:0~600°C(32~999°F)/J TYPE:0~600°C(32~999°F)
  • Self diagnosis log: (current, voltage, heater impedance, power, thermocouple, heater, fuse, TRIAC status)
  • Group setup function
  • Auto/Manual function
  • Web based file output function (USB)
  • Selectable six alarm modes
  • Load Power Usage display per zone
  • Detection for fuse breakage
  • Setting for output percentage limit
  • Power balance detection and display
  • Thermocouple break and inverse detect
  • Selectable two thermocouple types (J/K)
  • Selectable two temperature scales (°C/°F)
  • Automatic ID recognition
  • PID auto temperature control
  • Editable zone name (auto/manual)
  • Automatic shutdown for heater abnormality
  • Current, output percentage display function
  • Fast alternative for 230V/380V power input
  • Easy swapping for individual module failures
  • Follower function for thermocouple disconnection
  • 8 curves display (temperature, output percentage)
  • Synchronized temperature raising/lowering
  • Module memory (internal and external USB drive)
  • Internal alarm buzzer (with alarm sound stop switch)
  • Detection for heater open and short circuits
  • RS485 communication function: ASCII and RTU mode
  • To protect the power source input wrong witting and less phase
  • Selectable two output trigger modes (Phase angle / Zero cross)
  • Temperature range: Thermocouple K TYPE:0~600°C(32~999°F)/J TYPE:0~600°C(32~999°F)
  • Self diagnosis log: (current, voltage, heater impedance, power, thermocouple, heater, fuse, TRIAC status)
  • Group setup function
  • Auto/Manual function
  • Web based file output function (USB)
  • Selectable six alarm modes
  • Load Power Usage display per zone
  • Detection for fuse breakage
  • Setting for output percentage limit
  • Power balance detection and display
  • Thermocouple break and inverse detect
  • Selectable two thermocouple types (J/K)
  • Selectable two temperature scales (°C/°F)
